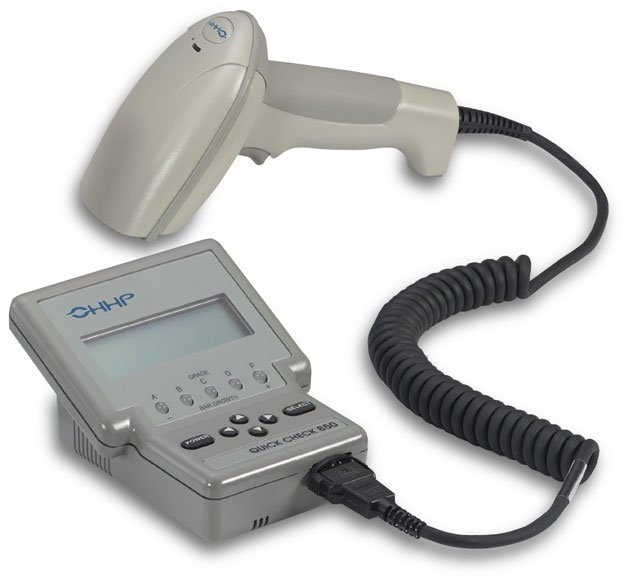

Honeywell QC8501 Barcode Verifier

The Honeywell QC8501 Barcode Verifier has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Honeywell Quick Check 800 Series - Verifies 7.5 mil or greater SCC, UCC/EAN, UPC, AIAG, LOGMARS, HIBCC, SISAC, CTIA/ABCD, Bookland & CCBBA codes. Includes batteries, custom 3800VE imager & power supply/charger.

Need a different version? See all Honeywell Quick Check 800 Series Barcode Verifiers

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Honeywell QC8501 Barcode Verifier
Honeywell QC8501 Barcode Verifier Honeywell QC8501 Barcode Verifier
Honeywell QC8501 Barcode Verifier
Honeywell QC8501 Barcode Verifier
Full specifications (PDF)
Honeywell Quick Check 800 Series Barcode Verifier Model Overview
The Quick Check 800 Series offers the convenience of simple aim-and-shoot verification through the use of a QC3800V, a customized IT3800 handheld linear imager. Full traditional and ANSI/CEN/ISO dimensional, reflectance, and format tests can also be performed using optional mouse and pen style wands
Honeywell QC8501 Barcode Verifier Overview
Hand Held Quick Check 800 Bar Code Verifier analyze barcode quality against traditional quality parameters and ISO/IEC barcode print quality guidelines. Hand Held Quick Check 800 Bar Code Verifier includes all standard symbologies and is manufactured and traceable to NIST (National Institute of Standards and Technology) standards developed by the UCC (Uniform Code Council) and AIM (Automatic Identification Manufacturers).
Full specifications (PDF)
Product Information
Barcode Symbology Supported:

Symbologies:

  • EAN/UPC with addenda
  • Code 39 (1-49 characters)
  • Interleaved 2 of 5 (2-78 characters)
  • Codabar
  • Code 128 (1-70 characters)
  • MSI (1-50 characters)
  • Code 16K (individual rows)
  • Code 49 (individual rows)
  • Code 93
  • Code 11
  • Regular 2 of 5 (Discrete/Industrial 2 of 5)
  • IATA 2 of 5 (Straight 2 of 5)
  • Database look-up feature
Physical Characteristics
Height:
2.8"
Width:
4.3"
Depth:
5.3"
Weight (Approximate):
16 oz
Miscellaneous
Additional Information:
  • Test ISO/IEC and Traditional Quality Parameters
  • Menu-Driven for Easy Use
  • LCD and LEDs Display Test Results Instantly
  • Command Codes for Instant Programming
  • QC3800VE for simple point and shoot testing
  • Full ISO / IEC when using optional Mouse and Pen wand
  • Keypad: 6-button, power, select (4 arrows)
  • Operating Temperature: 32° to 122° F (0° to 50° C)
  • Storage Temperature: 14° to 158° F (-20° to 70°C)
  • Relative Humidity: 5% to 95% Non-condensing

Test Aperture:

  • Mouse: 3, 5, 6, 10, or 20 mil
  • Pen: 5, 6, 10 mil
  • Linear Imager: min. "X" dimension 5 mil Beam width: 5.25 in. (13.3cm)

Symbologies:

  • EAN/UPC with addenda
  • Code 39 (1-49 characters)
  • Interleaved 2 of 5 (2-78 characters)
  • Codabar
  • Code 128 (1-70 characters)
  • MSI (1-50 characters)
  • Code 16K (individual rows)
  • Code 49 (individual rows)
  • Code 93
  • Code 11
  • Regular 2 of 5 (Discrete/Industrial 2 of 5)
  • IATA 2 of 5 (Straight 2 of 5)
  • Database look-up feature
Certifications & Standards:
  • FCC Class A
  • CE Certified
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Honeywell QC8501 Barcode Verifier is also known as HHP-QC8501 or QC8501.
