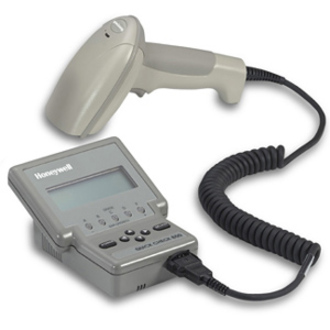

Honeywell QC650W05VR1 Barcode Verifier

The Honeywell QC650W05VR1 Barcode Verifier has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Honeywell Quick Check 600 Series - Quick Check 650 Barcode Verifier, All Industry Applications - 4-Line x 20-Character Display, 5 mil, Visible Red, Pen Wand with 110V US Connector

Need a different version? See all Honeywell Quick Check 600 Series Barcode Verifiers

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Honeywell QC650W05VR1 Barcode Verifier
Honeywell QC650W05VR1 Barcode Verifier Honeywell QC650W05VR1 Barcode Verifier
Honeywell QC650W05VR1 Barcode Verifier
Honeywell QC650W05VR1 Barcode Verifier
Full specifications (PDF)

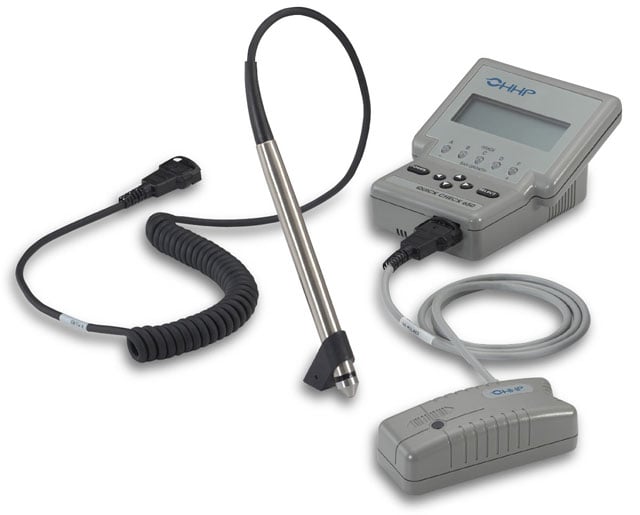

Honeywell Quick Check 600 Series Barcode Verifier Model Overview
The Quick Check 600 Series verifiers analyze barcode quality against traditional quality parameters and ANSI/CEN/ISO barcode print quality guidelines. Each unit includes all standard symbologies and is manufactured and traceable to N.I.S.T. (National Institute of Standards and Technology) standards developed by the U.C.C. (Uniform Code Council) and AIM (Automatic Identification Manufacturers).
Full specifications (PDF)
Product Information
Barcode Symbology Supported:

Symbologies:

  • EAN/UPC with addenda
  • Code 39 (1-49 characters)
  • Interleaved 2 of 5 (2-78 characters)
  • Codabar
  • Code 128 (1-70 characters)
  • MSI (1-50 characters)
  • Code 16K (individual rows)
  • Code 49 (individual rows)
  • Code 93
  • Code 11
  • Regular 2 of 5 (Discrete/Industrial 2 of 5)
  • IATA 2 of 5 (Straight 2 of 5)
  • Database look-up feature
Physical Characteristics
Height:
2.8"
Width:
4.3"
Depth:
5.3"
Weight (Approximate):
5.30 oz
Miscellaneous
Additional Information:
  • Test ISO/IEC and Traditional Quality Parameters
  • Menu-Driven for Easy Use
  • LCD and LEDs Display Test Results Instantly
  • Command Codes for Instant Programming
  • QC3800VE for simple point and shoot testing
  • Full ISO / IEC when using optional Mouse and Pen wand
  • Keypad: 6-button, power, select (4 arrows)
  • Operating Temperature: 32° to 122° F (0° to 50° C)
  • Storage Temperature: 14° to 158° F (-20° to 70°C)
  • Relative Humidity: 5% to 95% Non-condensing

Test Aperture:

  • Mouse: 3, 5, 6, 10, or 20 mil
  • Pen: 5, 6, 10 mil
  • Linear Imager: min. "X" dimension 5 mil Beam width: 5.25 in. (13.3cm)

Symbologies:

  • EAN/UPC with addenda
  • Code 39 (1-49 characters)
  • Interleaved 2 of 5 (2-78 characters)
  • Codabar
  • Code 128 (1-70 characters)
  • MSI (1-50 characters)
  • Code 16K (individual rows)
  • Code 49 (individual rows)
  • Code 93
  • Code 11
  • Regular 2 of 5 (Discrete/Industrial 2 of 5)
  • IATA 2 of 5 (Straight 2 of 5)
  • Database look-up feature
Certifications & Standards:
  • FCC Class A
  • CE Certified
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Honeywell QC650W05VR1 Barcode Verifier is also known as HHP-QC650W05VR1
