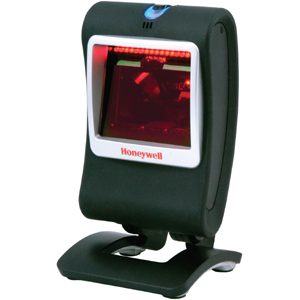

Honeywell MS7580-124-02 Barcode Scanners


0.0

(No reviews)

Be the first to

Write a Review
Honeywell MS7580 Genesis - MS7580: SCANNER ONLY, 1D/2D, BLAC K, RS-232-TTL/USB/Keyboard wedge/IBM46xx RS
Honeywell drew upon its years of expertise in imaging technology in MS 7580 Genesis.

Everything about MS7580 Genesis, from its single-board construction to its carefully calibrated stand tension, speaks to the elegance and attention to detail associated with our ELITE brand. Delivered in a stylish, full-color package, Genesis carries the Honeywell ELITE badge and will be offered with our new extended warranty options.

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Connectivity Technology: Cable
  • Light Source: LED
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • Reads Standard 1D
    • PDF
    • 2D
    • Postal
    • OCR Symbologies
    • Linear:
    • ABC Codabar (American Blood Commission)
    • China Post
    • Codabar
    • Code 11
    • Code 128
    • Code 32 Pharmaceutical (PARAF)
    • Code 39
    • Code 93 and 93i
    • EAN-13 (including Bookland EAN)
    • EAN-13 with Add-On
    • EAN-13 with Extended Coupon Code
    • EAN-8
    • EAN-8 with Add-On
    • GS1 Databar Expanded
    • GS1 Databar Limited
    • GS1 DataBar Omnidirectional
    • GS1 Databar Truncated
    • GS1-128
    • Interleaved 2 of 5
    • ISBT 128
    • ITF-14
    • Matrix 2 of 5
    • MSI-Plessey
    • UK Plessey Code
    • Straight 2 of 5 IATA
    • Straight 2 of 5 Industrial
    • Telepen
    • Trioptic Code
    • UPC-A
    • UPC-A with Add-On
    • UPC-A with Extended Coupon Code
    • UPC-E
    • UPC-E with Add-On
    • Stacked:
    • GS1 Databar Expanded Stacked
    • GS1 Databar Stacked
    • GS1 Databar Stacked Omnidirectional
    • Reads Standard 1D
    • PDF
    • 2D
    • Postal
    • OCR Symbologies
    • Linear:
    • ABC Codabar (American Blood Commission)
    • China Post
    • Codabar
    • Code 11
    • Code 128
    • Code 32 Pharmaceutical (PARAF)
    • Code 39
    • Code 93 and 93i
    • EAN-13 (including Bookland EAN)
    • EAN-13 with Add-On
    • EAN-13 with Extended Coupon Code
    • EAN-8
    • EAN-8 with Add-On
    • GS1 Databar Expanded
    • GS1 Databar Limited
    • GS1 DataBar Omnidirectional
    • GS1 Databar Truncated
    • GS1-128
    • Interleaved 2 of 5
    • ISBT 128
    • ITF-14
    • Matrix 2 of 5
    • MSI-Plessey
    • UK Plessey Code
    • Straight 2 of 5 IATA
    • Straight 2 of 5 Industrial
    • Telepen
    • Trioptic Code
    • UPC-A
    • UPC-A with Add-On
    • UPC-A with Extended Coupon Code
    • UPC-E
    • UPC-E with Add-On
    • Stacked:
    • GS1 Databar Expanded Stacked
    • GS1 Databar Stacked
    • GS1 Databar Stacked Omnidirectional
  • Maximum Scan Resolution: 7.50 mil
  • Depth of Field:
    • 1.60" - 3.10"@5.20 mil - 1D
    • 1.20" - 4.70"@7.50 mil - 1D
    • 0.80" - 5.50"@10.40 mil - 1D
    • 0 mil - 6"@13 mil - 1D
    • 0 mil - 4.70"@10 mil - PDF
    • 1.20" - 4.70"@15 mil - PDF

General Information

  • Product Type: Desktop Barcode Scanner
  • Brand Name: Honeywell
  • Manufacturer: Honeywell International, Inc
  • Product Model: MS7580
  • Product Name: Genesis MS7580 Desktop Barcode Reader
  • Product Line: Genesis

Physical Characteristics

  • Height: 5.9"
  • Width: 3.3"
  • Depth: 3.2"
  • Color: Light Gray
  • Weight (Approximate): 12 oz

Interfaces/Ports

  • Host Interface:
    • IBM 46XX
    • Serial
    • USB

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE
  • Platform Supported: PC

Warranty

  • Limited Warranty: 2 Year

Full specifications (PDF)

Full specifications (PDF)

Brand Honeywell
Model MS7580 Genesis
Scanner Type Imager
Scanner Capability 2D
Scan Pattern Area


Customer Review Summary

Recommended Accessories for Model: Honeywell MS7580 Genesis Scanner
Honeywell Cable (CBL-720-300-C00)
Keyboard Wedge, black, PS2, 3m (9.8'), coiled, 5 V external power with option for host power
In Stock: Ships Same Day
$20.40
+ Add to Quote
Honeywell Cable (CBL-500-300-S00)
USB, black, Type A, 3m (9.8'), straight, 5V host power
In Stock: Ships Same Day
$20.40
+ Add to Quote
Honeywell Cable (CBL-020-300-C00)
RS-232 (5V signals), black, DB-9 Female, 3m (9.8'), coiled, 5V external power with option for host power on pin 9
In Stock: Ships Same Day
$20.40
+ Add to Quote
Honeywell Cable (CBL-503-300-S00)
USB, black, 12V locking, 3m (9.8'), straight, 5V host power. Non-Cancelable/Non-Returnable.
In Stock: Ships Same Day
$30.20
+ Add to Quote
Metrologic (46-00913)
Wall mount stand for MK7580
In Stock: Ships Same Day
$20.40
+ Add to Quote
Protect Your Product
Honeywell Service Contract - 1 year (HSVC7580-W)
7580 Genesis, Extended Warranty, 1-Year
Ships in 3-5 Days
$33.00
+ Add to Quote

The Honeywell MS7580-124-02 is also known as HSM-MS7580-124-02 or MS758012402 .
