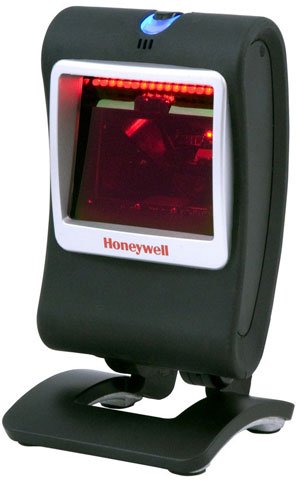

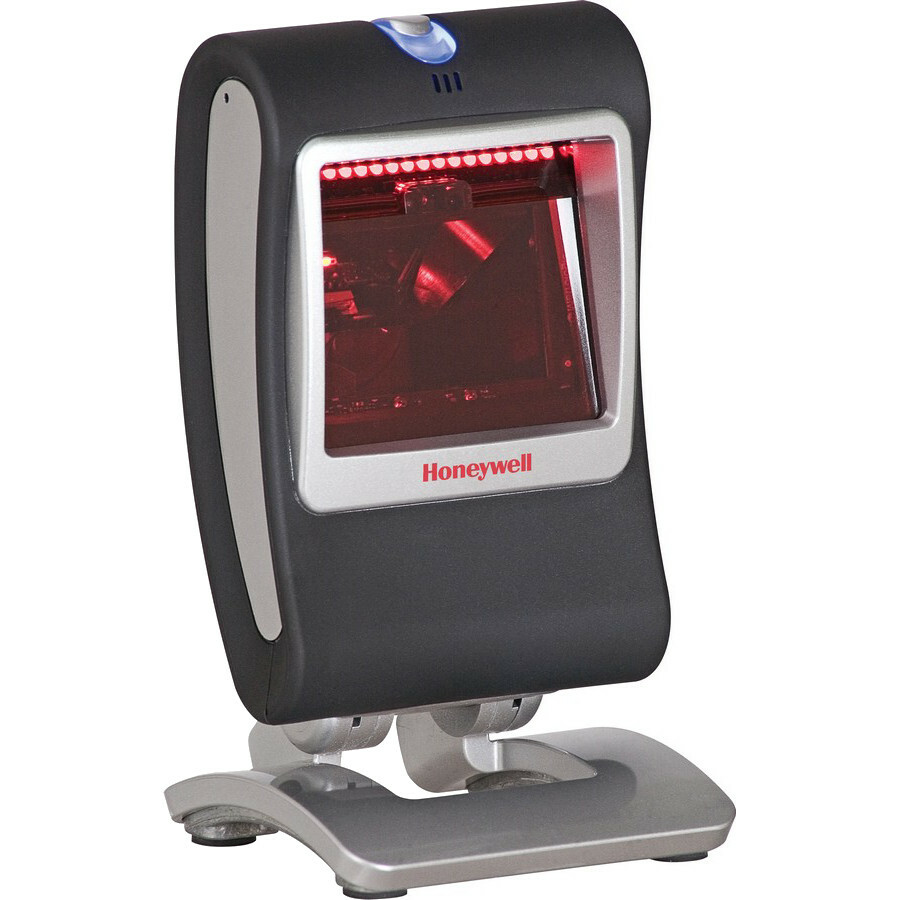

Honeywell MS7580-124-02-EAS Barcode Scanner

Honeywell MS7580 Genesis - SCANNER ONLY. 2D Scanner, PDF417, EAS, RS-232-TTL/USB/Keyboard wedge, IBM 46xx RS-485 interfaces. Non-Cancelable/Non-Returnable.
Honeywell drew upon its years of expertise in imaging technology in MS 7580 Genesis.

Everything about MS7580 Genesis, from its single-board construction to its carefully calibrated stand tension, speaks to the elegance and attention to detail associated with our ELITE brand. Delivered in a stylish, full-color package, Genesis carries the Honeywell ELITE badge and will be offered with our new extended warranty options.

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Connectivity Technology: Cable
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • 1D
    • PDF
    • 2D
    • Postal
    • OCR
    • 1D
    • PDF
    • 2D
    • Postal
    • OCR
  • Maximum Scan Resolution: 7.50 mil
  • Depth of Field:
    • 0.39" - 3.15"@5 mil - 1D
    • 0.39" - 4.92"@7.50 mil - 1D
    • 0 mil - 5.12"@10.40 mil - 1D
    • 0 mil - 6.22"@13 mil - 1D
    • 0.39" - 5.71"@10 mil - PDF
    • 0.39" - 5.31"@15 mil - DM

General Information

  • Product Type: Desktop Barcode Scanner
  • Brand Name: Metrologic
  • Manufacturer: Honeywell International, Inc
  • Product Model: 7580
  • Product Name: Genesis 7580 Area-Imaging Scanner
  • Product Line: Genesis

Physical Characteristics

  • Height: 5.9"
  • Width: 3.3"
  • Color: Black
  • Length: 3.1"
  • Weight (Approximate): 11.99 oz

Interfaces/Ports

  • Host Interface:
    • USB
    • Serial
    • Keyboard Wedge
    • IBM 46XX

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE
  • Certifications & Standards:
    • CE
    • UL

Warranty

  • Limited Warranty: 2 Year

Power Description

  • Input Voltage: 12 V DC

Full specifications (PDF)

Full specifications (PDF)

Brand Honeywell
Model MS7580 Genesis
Scanner Type Imager
Scan Pattern Area
Connectivity Corded
Form Factor Presentation, Handheld
Scanner Capability 2D
Ruggedness General Purpose
Recommended Accessories for Model: Honeywell MS7580 Genesis Scanner
Honeywell Cable (CBL-720-300-C00)
Keyboard wedge, black, PS/2, 3m (9.8'), coiled, 5 V external power with option for host power
In Stock: Ships Same Day
$22.20
+ Add to Quote
Honeywell Cable (CBL-020-300-C00)
RS-232 (5V signals), black, DB-9 Female, 3m (9.8'), coiled, 5V external power with option for host power on pin 9
In Stock: Ships Same Day
$22.20
+ Add to Quote
Honeywell Cable (CBL-500-300-S00)
USB Straight Cable, Type A, 5V Host Power, 3 m/9.8-ft. Length, Black
In Stock: Ships Same Day
$22.20
+ Add to Quote
Honeywell Cable (CBL-503-300-S00)
USB, black, 12V locking, 3m (9.8'), straight, 5V host power. Non-Cancelable/Non-Returnable.
In Stock: Ships Same Day
$35.00
+ Add to Quote
Metrologic (46-00913)
Wall mount stand for MK7580
In Stock: Ships Same Day
$22.70
+ Add to Quote
Protect Your Product
Honeywell Service Contract - 1 year (HSVC7580-W)
7580 Genesis, Extended Warranty, 1-Year
Ships in 3-5 Days
$33.00
+ Add to Quote

The Honeywell MS7580-124-02-EAS is also known as HSM-MS7580-124-02-EA or MS758012402EAS .
