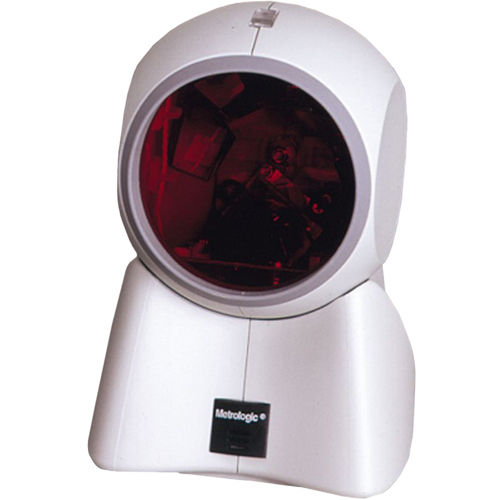

Metrologic Orbit 7120 Barcode Scanner Model Overview
Honeywell's Orbit 7120 and OrbitCG 7180 omnidirectional laser scanners present the ultimate scanning solution for retailers seeking efficiency without compromising on aesthetics. Designed to accommodate tight counter spaces, these compact scanners deliver rapid 1,120 scans per second with an innovative 20-line scan pattern. With a tiltable scanning head for larger items and a patented sweet spot for optimal performance, they maximize both customer satisfaction and employee productivity. The OrbitCG 7180 further enhances functionality with CodeGate® technology, enabling precise targeting of barcodes for quick data transmission. Key Features
20 Line Omnidirectional Pattern: Enables aggressive scanning for hand presentation applications.
Sweet Spot Scanning: Engineered to optimize scanning performance and first-pass read rate.
Adjustable Scan Head: 30° tilt capability for versatile and targeted scanning.
Automatic Scanning Operation: Simple barcode presentation for effortless scanning.
Built-in RF EAS Antenna: Increases efficiency by deactivating RF EAS tags while scanning (OrbitCG 7180 only).
Specifications
Mechanical:
Dimensions (LxWxH): 105 mm x 102 mm x 150 mm (4.1" x 4.0" x 5.9")
Weight: 400 g (14.1 oz)
Electrical:
Input Voltage: 5 VDC ± 0.25 V
Operating Power: 900 mW (180 mA @ 5 V)
Standby Power: 850 mW (170 mA @ 5 V)
Environmental:
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -40°C to 60°C (-40°F to 140°F)
Humidity: 5% to 95% relative humidity, non-condensing
Drop: Designed to withstand 1.2 m (4 ft) drops
Environmental Sealing: Sealed to resist airborne contaminants
Scan Performance:
Scan Pattern: Omnidirectional with 5 fields of 4 parallel lines
Scan Speed: 1,120 scans per second
Warranty: 3 year factory warranty

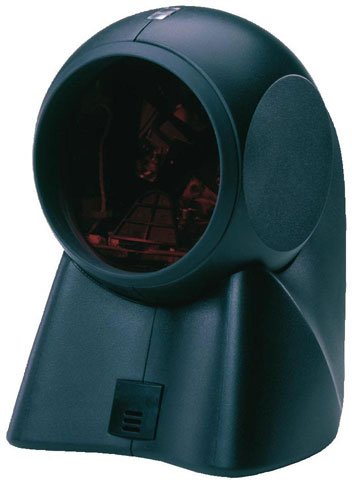

Honeywell MS7120-38 Barcode Scanner Overview
The MS7120 the all-time, best-selling hands-free omnidirectional laser scanner presents an innovative, elegant and affordable solution for convenience retail applications where counter space is at a premium. Recipient of multiple design honors, the MS7120 has an award-winning shape that enables hand-held scanning of large, bulky items.
Full specifications (PDF)
