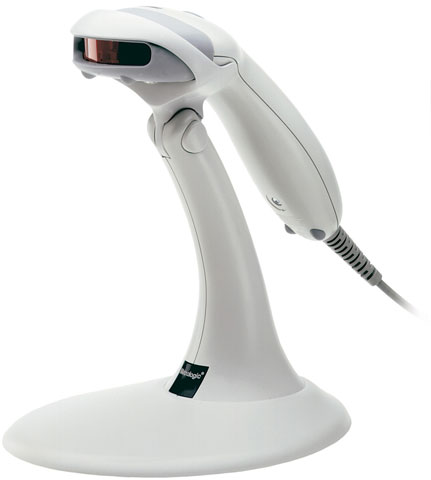

Honeywell MK9540-72B47-6 Barcode Scanner

The Honeywell MK9540-72B47-6 Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Honeywell MS9540 Voyager - PS/2 kit, 1D Laser. Includes PS/2 cable, power supply, and stand. Color: Gray. Non-Cancelable/Non-Returnable.

Metes out excellent operation and rugged structure with smart retailing features which is an ideal choice for bundling terminals, businesses, supermarkets and grocery stores
Scan barcodes with a staggering speed of 72 scan/s
Allows productive and precise reading of 1D barcodes
Powerful laser scan source provides 72 scan/s decode rate
Wired connectivity makes this scanner ideal for retail and desktop applications

Need a different version? See all Honeywell MS9540 Voyager Barcode Scanners

Discontinued Need Assistance?

Add to Quote

Honeywell MK9540-72B47-6 Barcode Scanner

Overview

Full specifications (PDF)

Honeywell MS9540 Voyager Barcode Scanner Model Overview

The MS9540 Voyager features Honeywell's proprietary CodeGate technology. CodeGate is an intuitive scanning system that is ideal for all scanning applications, including menu-scanning, Point-of-Sale, document processing, and inventory, just to name a few. All units feature a five year warranty.

Honeywell MK9540-72B47-6 Barcode Scanner Overview

Honeywell's Voyager® 9500 series of hand-held, single-line laser scanners offer aggressive scanning of all standard 1D bar codes.

The Voyager series of hand-held, single-line bar code scanners have united form with function in becoming the industry benchmark for value and performance.

These sleek scanners feature patented automatic infrared activation and decode all standard 1D bar codes, including GS1 DataBarTM (formerly known as RSS codes).

VoyagerCG 9540 also includes patented CodeGate® technology which allows the user to easily target the desired bar code and complete data transmission with the press of a single button.

For presentation scanning, Honeywell offers a stand with automatic in-stand detection technology.

Detailed Specs

Full specifications (PDF)

Technical Information

Connectivity Technology:

Cable

Scanning Capability:

Barcode Symbology Supported:

Reads standard 1D and GS1 DataBar symbologies

Light Source:

Laser

Scan Rate:

72 scan/s

Scan Pattern:

Single Line

Scanner Range:

Short Range

Scanning Distance:

10"

Stand Included:

Yes

Field of View (Horizontal):

50°

Reading Angle (Skew):

52°

Reading Angle (Pitch):

68°

Maximum Ambient Light:

4842 lux

Drop Specification:

Multiple 1.5 m (5 ft) drops

Minimum Print Contrast:

35%

Interfaces/Ports

Host Interface:

Keyboard Wedge

Power Description

Maximum Operating Power Consumption:

825 mW

Power Supply Included:

Yes

Physical Characteristics

Form Factor:

Handheld

Product Color:

Light Gray

Height:

2.2"

Width:

3.1"

Length:

7.8"

Weight (Approximate):

5.26 oz

Item Numbers

UNSPSC: 43211701
