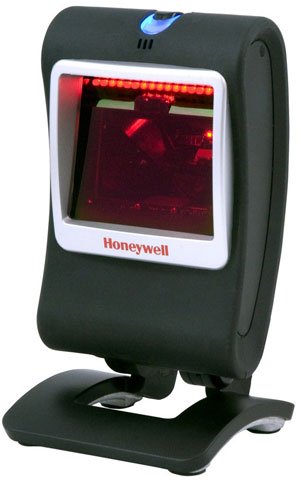

Honeywell MK7580-30C47-02 Barcode Scanner

A newer version of this item is available.
It is replaced by the Honeywell MK7580-30B47-02 Barcode Scanner.

Honeywell MS7580 Genesis - Keyboard Wedge interface. Includes 220V Euro power supply and PS2 keyboard wedge cable. Stand not included.

Creates a high ROI because of diminishment in workforce and descend inventory errors
Reads all 1D barcodes with ease so you can accomplish all your tasks more efficiently
Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes
LED aimer is a perfect choice for patient-facing applications
Perfect for applications that require direct association with a workstation or a notebook

Need a different version? See all Honeywell MS7580 Genesis Barcode Scanners

Discontinued See Replacement

Add to Quote

Honeywell MK7580-30C47-02 Barcode Scanner

Overview

Full specifications (PDF)

Honeywell MS7580 Genesis Barcode Scanner Model Overview

Everything about MS7580 Genesis, from its single-board construction to its carefully calibrated stand tension, speaks to the elegance and attention to detail associated with our ELITE brand. Delivered in a stylish, full-color package, Genesis carries the Honeywell ELITE badge and will be offered with our new extended warranty options.

Honeywell MK7580-30C47-02 Barcode Scanner Overview

Metrologic's MS7580 Genesis is a presentation imager engineered to decode all standard printed and electronic 1D, PDF and 2D matrix codes, provides enhanced productivity and revolutionary imaging technology in an elegant, yet durable design. The first product released under the Metrologic ELITE brand, Genesis signals the company's move to producing devices that tie advanced engineering with superior elegance, performance and reliability.

Detailed Specs

Full specifications (PDF)

Technical Information

Connectivity Technology:

Cable

Scanning Capability:

Barcode Symbology Supported:

1D:

Code 39
Code 93
Code 128
UPC/EAN/JAN
Code 2 of 5
Code 11
Codabar
MSI Plessey
GS1 DataBar
Telepen
Trioptic

PDF:

PDF417
MicroPDF417

2D:

QR Code
Micro QR Code
Data Matrix
Aztec Code
Maxicode
Codablock
Composite Code
POSTNET
PLANET
UPU
Intelligent Mail
Canada Post
Australia Post
Japanese Post
Royal Mail RM4SCC
KIX Code

OCR:

OCR-A
OCR-B
E-13B MICR

Light Source:

LED

Image Sensor Type:

Imager

Maximum Scan Resolution:

4 mil

Depth of Field:

1.6" - 3.1"@5.2mil - 1D
1.2" - 4.7"@7.5mil - 1D
0.8" - 5.5"@10.4mil - 1D
0" - 6"@13mil - 1D
0" - 4.7"@10mil - PDF
1.2" - 4.7"@15mil - PDF

Interfaces/Ports

Host Interface:

Keyboard Wedge

Power Description

Input Voltage:

12 V DC

Physical Characteristics

Form Factor:

Desktop

Product Color:

Black

Height:

5.9"

Width:

3.3"

Depth:

3.2"

Weight (Approximate):

11.99 oz

Miscellaneous

Additional Information:

Motion Tolerance
Total Freedom Open-System Architecture
First Flash
Code Select
Scan Pattern: Area

USB Cable separate

Certifications & Standards:

RoHS Compliant

EMC:

FCC Class B
IEC60825-1 LED Safety

LED Class:

Class 1; IEC60825-1:1993/A1:1997+A2:2001
Class 1; EN60825-1:1994/A11:1996+A2:2001

Environmentally Friendly:

Yes

Warranty

Limited Warranty:

2 Year

Item Numbers

UNSPSC: 43211701
