Honeywell MS7580 Genesis – Barcode Scanner – Corded – 2D

Part Number: MK7580-30B38-02-A
Model: MS7580 Genesis
Add to My Shopping List Add to Compare
Discontinued See Replacement
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity
Corded
Form Factor
Presentation
Interface Options
USB
Scanner Capability
2D

Product Description:

  USB Kit. 2D Scanner, PDF417, 3m straight USB cable.
Explore all BCI-Hidden Mobile Couponing Bundle Barcode Scanners
Add to Quote
Honeywell MK7580-30B38-02-A Barcode Scanner
Honeywell MK7580-30B38-02-A Barcode Scanner
Honeywell MK7580-30B38-02-A Barcode Scanner Honeywell MK7580-30B38-02-A Barcode Scanner
Full specifications (PDF)

BCI-Hidden Mobile Couponing Bundle Barcode Scanner Model Overview

Everything you need for a complete Mobile Couponing Solution.
Honeywell MK7580-30B38-02-A Barcode Scanner Overview

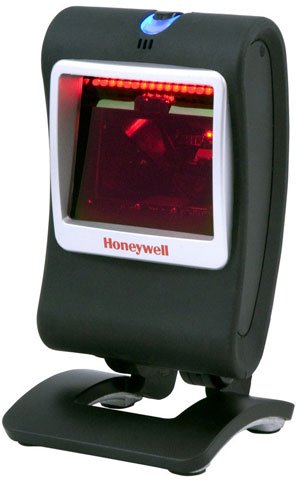

Genesis MS7580 is a presentation imager engineered to decode all standard printed and electronic 1D, PDF and 2D matrix codes, provides enhanced productivity and revolutionary imaging technology in an elegant, yet durable design. The first product released under the Metrologic ELITE brand, Genesis signals the companys move to producing devices that tie advanced engineering with superior elegance, performance and reliability.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • All Standard 1D Symbologies
  • GS1 Databar
  • PDF 417
  • Micro PDF
  • MaxiCode
  • DataMatrix
  • QR Code
  • UCC/EAN Composite Codes
  • Postal Code
  • Aztec
Light Source:
LED
Image Sensor Type:
Imager
Maximum Scan Resolution:
10 mil
Depth of Field:
  • 1.5" - 3.2"@5mil - 1D
  • 1.1" - 4.7"@7.5mil - 1D
  • 0.6" - 5.6"@10.4mil - 1D
  • 0" - 6"@13mil - 1D
  • 1.1" - 4.7"@10mil - PDF417
  • 1.5" - 4.7"@15mil - QR + Datamatrix
Scanning Distance:
6.22"
Cable Type Included:
USB
Field of View (Horizontal):
46°
Field of View (Vertical):
28°
Reading Angle (Skew):
70°
Reading Angle (Pitch):
75°
Motion Tolerance:
78 in/s
Maximum Ambient Light:
100000 lux
Drop Specification:
Designed to withstand 1.5 m (5´) drops
Minimum Print Contrast:
20%
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
12 V DC
Physical Characteristics
Form Factor:
Desktop
Product Color:
Dark Gray
Height:
5.9"
Width:
3.3"
Depth:
3.2"
Weight (Approximate):
11.99 oz
Miscellaneous
Package Contents:
  • Genesis MS7580 Bar Code Reader
  • Straight USB V-Link Cable Type A
  • Power Supply
Additional Information:

Supported Interfaces:

  • USB
  • Keyboard Wedge

    • Certifications & Standards:
    • RoHS Compliant

    EMC:

    • FCC Class B
    • IEC60825-1 LED Safety

    LED Class:

    • Class 1; IEC60825-1:1993/A1:1997+A2:2001
    • Class 1; EN60825-1:1994/A11:1996+A2:2001
    Environmentally Friendly:
    Yes
    Item Numbers
    GTIN: 0091027334407, 0097914466367, 4016138970395, 5711045787423
    UPC: 091027334407, 097914466367, 783555087961, 912203025349
    EAN: 0091027334407, 0097914466367, 4016138970395, 5711045787423
    UNSPSC: 43211701
