Honeywell MK7580-30A38-12-A Barcode Scanner

The Honeywell MK7580-30A38-12-A Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Honeywell MS7580 Genesis - Genesis Imager, USB, Keyboard wedge, Loaded with EasyID and No Power supply
  • At a low cost, it gives more control by manual scanning, thus adds to the effectiveness and profitability
  • Rapidly incorporate 1D and 2D barcode information to records, spreadsheets, and databases
  • Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes
  • Laser-free design provides high-performance scanning without the risk of eye injury
  • Wired connectivity makes this scanner ideal for retail and desktop applications
Read More

Need a different version? See all Honeywell MS7580 Genesis Barcode Scanners

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Honeywell MK7580-30A38-12-A Barcode Scanner
Honeywell MK7580-30A38-12-A Barcode Scanner Honeywell MK7580-30A38-12-A Barcode Scanner
Honeywell MK7580-30A38-12-A Barcode Scanner
Honeywell MK7580-30A38-12-A Barcode Scanner
Full specifications (PDF)

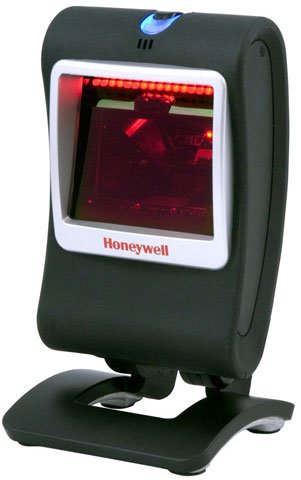

Honeywell MS7580 Genesis Barcode Scanner Model Overview
Everything about MS7580 Genesis, from its single-board construction to its carefully calibrated stand tension, speaks to the elegance and attention to detail associated with our ELITE brand. Delivered in a stylish, full-color package, Genesis carries the Honeywell ELITE badge and will be offered with our new extended warranty options.
Honeywell MK7580-30A38-12-A Barcode Scanner Overview

Genesis MS7580 Bar Code Reader is the world first presentation area imager engineered to decode all standard 1D, PDF and 2D codes, provides enhanced productivity and revolutionary imaging technology in an elegant, yet durable design.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

Linear:

  • China Post
  • Codabar (NW7)
  • Code 11
  • Code 128
  • Code 32
  • Code 39
  • Code 93 and 93i
  • Code 2 of 5
  • EAN
  • Interleaved 2 of 5
  • Matrix 2 of 5
  • MSI
  • Plessey
  • GS1 DataBar (Formerly RSS)
  • Telepen
  • Trioptic Code
  • UPC

Stacked:

  • GS1 Composite (Formerly EAN/UCC)
  • MicroPDF417
  • PDF417

Matrix:

  • Aztec
  • Chinese Sensible Code (Han Xin Code)
  • Data Matrix
  • MaxiCode
  • QR Code
  • Micro QR Code
Light Source:
LED
Image Sensor Type:
Imager
Maximum Scan Resolution:
7.50 mil
Depth of Field:
  • 1.6" - 3.1"@5.2mil - 1D
  • 1.2" - 4.7"@7.5mil - 1D
  • 0.8" - 5.5"@10.4mil - 1D
  • 0" - 6"@13mil - 1D
  • 0" - 4.7"@10mil - PDF
  • 1.2" - 4.7"@15mil - PDF
Interfaces/Ports
Host Interface:
  • USB
  • Keyboard Wedge
Physical Characteristics
Form Factor:
Desktop
Height:
5.9"
Width:
3.3"
Depth:
3.2"
Weight (Approximate):
12 oz
Miscellaneous
Additional Information:

USB Cable separate

Environmentally Friendly:
Yes
Warranty
Limited Warranty:
2 Year
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Honeywell MK7580-30A38-12-A Barcode Scanner is also known as MET-MK758030A38-EASY or MK758030A3812A.
