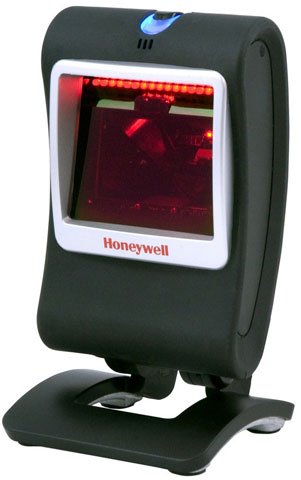

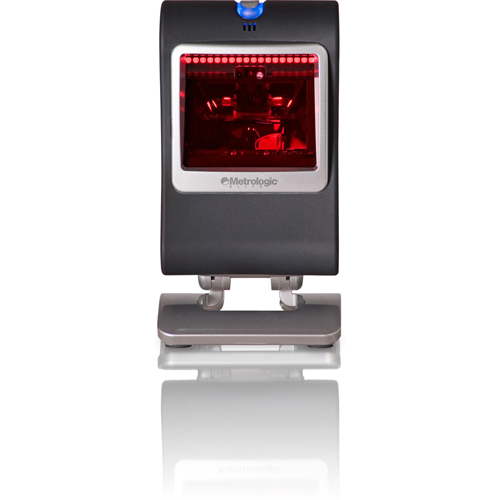

Honeywell MK7580-30A38-00-A Barcode Scanner

Honeywell MS7580 Genesis - USB Kit. 1D Scanner, 3m straight USB cable. Non-Returnable/Non-Cancelable
Honeywell drew upon its years of expertise in imaging technology in MS 7580 Genesis.

Everything about MS7580 Genesis, from its single-board construction to its carefully calibrated stand tension, speaks to the elegance and attention to detail associated with our ELITE brand. Delivered in a stylish, full-color package, Genesis carries the Honeywell ELITE badge and will be offered with our new extended warranty options.

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Connectivity Technology: Cable
  • Light Source: LED
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • Linear:
    • China Post
    • Codabar (NW7)
    • Code 11
    • Code 128
    • Code 2 of 5
    • Code 32
    • Code 39
    • Code 93 and 93i
    • EAN
    • GS1 DataBar (formerly RSS)
    • Interleaved 2 of 5
    • Matrix 2 of 5
    • MSI
    • Plessey
    • Telepen
    • Trioptic Code
    • UPC
    • Stacked:
    • GS1 Composite (Formerly EAN/UCC)
    • MicroPDF417
    • PDF417
    • Matrix:
    • Aztec
    • Chinese Sensible Code (Han Xin Code)
    • Data Matrix
    • MaxiCode
    • Micro QR Code
    • QR Code
    • Postal:
    • Australian Post
    • British Post
    • Canadian Post
    • ID-tag (UPU 4-state)
    • Intelligent Mail Barcode Formerly 4-State Customer Barcode)
    • Japanese Post
    • Netherlands (KIX) Post
    • OCR:
    • OCR MICR (E 13 B)
    • OCR-A
    • OCR-B
    • Linear:
    • China Post
    • Codabar (NW7)
    • Code 11
    • Code 128
    • Code 2 of 5
    • Code 32
    • Code 39
    • Code 93 and 93i
    • EAN
    • GS1 DataBar (formerly RSS)
    • Interleaved 2 of 5
    • Matrix 2 of 5
    • MSI
    • Plessey
    • Telepen
    • Trioptic Code
    • UPC
    • Stacked:
    • GS1 Composite (Formerly EAN/UCC)
    • MicroPDF417
    • PDF417
    • Matrix:
    • Aztec
    • Chinese Sensible Code (Han Xin Code)
    • Data Matrix
    • MaxiCode
    • Micro QR Code
    • QR Code
    • Postal:
    • Australian Post
    • British Post
    • Canadian Post
    • ID-tag (UPU 4-state)
    • Intelligent Mail Barcode Formerly 4-State Customer Barcode)
    • Japanese Post
    • Netherlands (KIX) Post
    • OCR:
    • OCR MICR (E 13 B)
    • OCR-A
    • OCR-B
  • Maximum Scan Resolution: 7.50 mil
  • Depth of Field:
    • 1.60" - 3.10"@5.20 mil - 1D
    • 1.20" - 4.70"@7.50 mil - 1D
    • 0.80" - 5.50"@10.40 mil - 1D
    • 0 mil - 6"@13 mil - 1D
    • 0 mil - 4.70"@10 mil - PDF
    • 1.20" - 4.70"@15 mil - PDF

General Information

  • Product Type: Desktop Barcode Scanner
  • Brand Name: Honeywell
  • Manufacturer: Honeywell International, Inc
  • Product Model: MS7580
  • Product Name: Genesis MS7580 Desktop Barcode Reader
  • Product Line: Genesis

Physical Characteristics

  • Height: 5.9"
  • Width: 3.3"
  • Depth: 3.2"
  • Color: Black
  • Weight (Approximate): 12 oz

Interfaces/Ports

  • Host Interface:
    • USB
    • Serial
    • IBM 46XX
    • Keyboard Wedge

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • China RoHS

Warranty

  • Limited Warranty: 2 Year

Full specifications (PDF)

Full specifications (PDF)

Brand Honeywell
Model MS7580 Genesis
Included Cables USB
Scanner Capability 1D
Scanner Type Imager
Connectivity Corded
Scan Pattern Area
Form Factor Presentation, Handheld
Ruggedness General Purpose
Recommended Accessories for Model: Honeywell MS7580 Genesis Scanner
Honeywell Cable (CBL-720-300-C00)
Keyboard wedge, black, PS/2, 3m (9.8'), coiled, 5 V external power with option for host power
In Stock: Ships Same Day
$22.20
+ Add to Quote
Honeywell Cable (CBL-020-300-C00)
RS-232 (5V signals), black, DB-9 Female, 3m (9.8'), coiled, 5V external power with option for host power on pin 9
In Stock: Ships Same Day
$22.20
+ Add to Quote
Honeywell Cable (CBL-500-300-S00)
USB Straight Cable, Type A, 5V Host Power, 3 m/9.8-ft. Length, Black
In Stock: Ships Same Day
$22.20
+ Add to Quote
Honeywell Cable (CBL-503-300-S00)
USB, black, 12V locking, 3m (9.8'), straight, 5V host power. Non-Cancelable/Non-Returnable.
In Stock: Ships Same Day
$35.00
+ Add to Quote
Metrologic (46-00913)
Wall mount stand for MK7580
In Stock: Ships Same Day
$22.70
+ Add to Quote
Protect Your Product
Honeywell Service Contract - 1 year (HSVC7580-W)
7580 Genesis, Extended Warranty, 1-Year
Ships in 3-5 Days
$33.00
+ Add to Quote

The Honeywell MK7580-30A38-00-A is also known as MET-MK7580-30B38-00A or MK758030A3800A .
