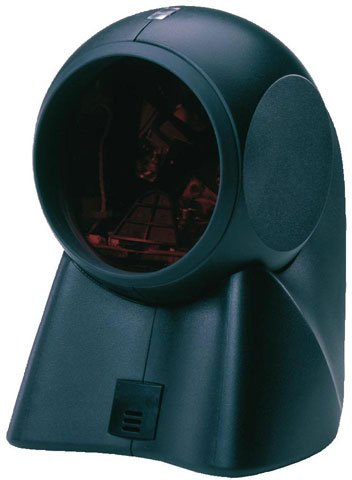

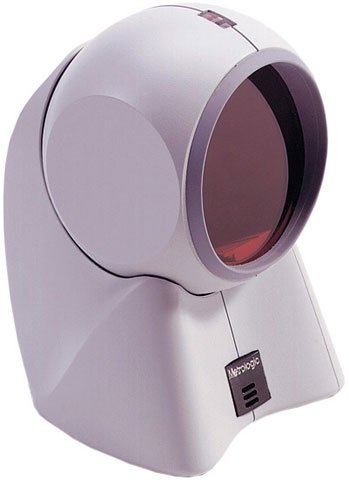

Metrologic MS7180 OrbitCG Barcode Scanner Model Overview
The Metrologic MS7180 OrbitCGM is a sleek, omnidirectional scanner designed for retail environments where space is limited. Combining advanced CodeGate® technology with the classic Orbit's award-winning design, this scanner offers versatile scanning modes for both general and targeted applications. With a single-button switch, you can easily toggle between a dynamic 20-line scan pattern and a focused single-line mode, perfect for menu scanning. The adjustable scanning head provides up to 30° tilting, accommodating a variety of product sizes while ensuring efficient scanning. The OrbitCGM not only enhances scanning productivity but also supports easy firmware updates to protect your investment.
Key Features
20 scan line omni-directional pattern: Provides aggressive scanning for hands-free applications.
Single Line Option: Ideal for focused menu scanning with a simple button press.
Adjustable scan head: Tilts up to 30° for flexibility with large products.
Firmware updates: Easily update via MetroSet 2 software, included for free.
EAS Integration: Deactivate tags and decode barcodes in a single scan.
Specifications
Light Source: Visible Laser Diode 650 nm ± 10 nm
Scanning Speed: 1120 scan lines per second
Height: 117 mm (4.5")
Width: 80 mm (3.1")
Depth: 150 mm (5.9")
Weight: 400 g (14.1 oz)
Operating Voltage: 5 VDC ± 0.25 V
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -40°C to 60°C (-40°F to 140°F)
Humidity: 5% to 95% (non-condensing)
Honeywell MK7180-31A138 Barcode Scanner Overview
Metrologic Orbit MS7180 Bar Code Reader provides a stylish solution for omnidirectional and menu-scanning applications where counter space is at a premium. With the push of button, CodeGate technology augments Metrologic Orbit MS7180 Bar Code Reader's patented 20-line aggressive scan pattern with a single-line mode ideal for targeted or menu scanning.
What barcode symbologies does the Honeywell MK7180-31A138 scanner read?
The Honeywell MK7180 OrbitCG reads standard 1D and GS1 DataBar symbologies with omnidirectional scanning capabilities. This makes it ideal for general-purpose warehouse and retail applications where you need to scan barcodes from multiple angles without repositioning the scanner.
Is the Honeywell MK7180-31A138 suitable for harsh warehouse environments?
Yes, the MK7180 is designed for demanding environments with environmental sealing to resist airborne particulate contaminants and can operate in temperatures from 0°C to 40°C with humidity levels up to 95% non-condensing. It's also built to withstand 1.2 meter (4-foot) drops, making it durable for active warehouse use.
What connectivity options are available with this Honeywell scanner?
The MK7180-31A138 includes USB connectivity via a 2.9-meter (9.5-foot) straight USB Type A cable. The scanner also supports multiple host system interfaces including RS-232, Keyboard Wedge, IBM 468xx (RS485), and Light Pen Wand Emulation, giving you flexibility in system integration.
How much power does the Honeywell MK7180 consume?
The MK7180 operates at 5 VDC with an operating power consumption of 900 mW (180 mA @ 5V) and standby power of 850 mW (170mA @ 5V). This low power consumption makes it suitable for extended use in warehouse operations without significant power infrastructure requirements.
What is the scanning speed and performance of the MK7180-31A138?
The MK7180 delivers omnidirectional scanning at 1120 scan lines per second with its 5-field parallel line pattern, or single-line scanning at 56 scan lines per second when button-activated. It requires a minimum print contrast of 35% reflectance difference and can read barcodes at pitch and skew angles up to 60 degrees.
Does the Honeywell MK7180 come with a warranty?
Yes, the Honeywell MK7180-31A138 includes a 3-year factory warranty, providing you with extended protection and peace of mind for your investment. Contact us today at barcodesinc.com to discuss warranty options and support for your deployment.
Full specifications (PDF)
