Honeywell ORBIT 7120 – Barcode Scanner – Corded – 1D

Part Number: MK7120-71B47
Model: ORBIT 7120
Add to My Shopping List Add to Compare
Discontinued See Replacement
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity
Corded
Form Factor
Presentation
Interface Options
PS/2 Keyboard Wedge
Scanner Capability
1D

Product Description:

  PS/2 kit, 1D Laser, Omni-directional. Includes PS/2 cable and PS/2 to AT/XT adapter. Color: White. Non-Cancelable/Non-Returnable.
Explore all Metrologic Orbit 7120 Barcode Scanners
Add to Quote

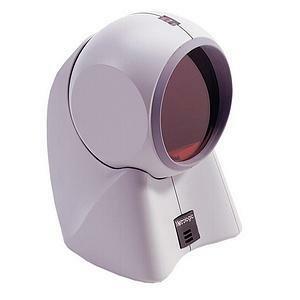

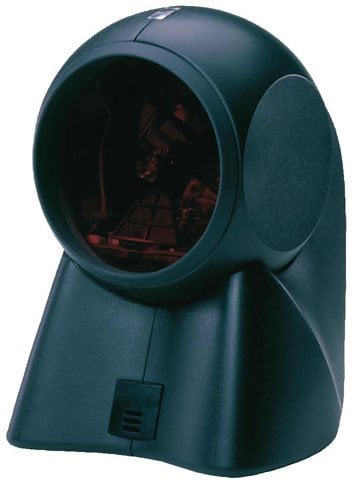

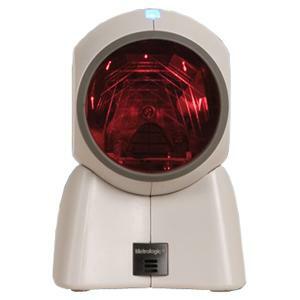

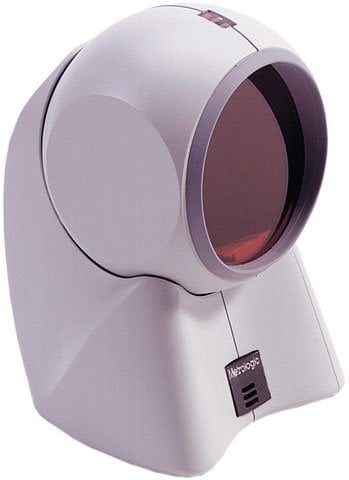

Honeywell MK7120-71B47 Barcode Scanner
Honeywell MK7120-71B47 Barcode Scanner
Honeywell MK7120-71B47 Barcode Scanner
Honeywell MK7120-71B47 Barcode Scanner
Honeywell MK7120-71B47 Barcode Scanner Honeywell MK7120-71B47 Barcode Scanner Honeywell MK7120-71B47 Barcode Scanner Honeywell MK7120-71B47 Barcode Scanner
Full specifications (PDF)

Metrologic Orbit 7120 Barcode Scanner Model Overview

Honeywell's Orbit 7120 and OrbitCG 7180 omnidirectional laser scanners present the ultimate scanning solution for retailers seeking efficiency without compromising on aesthetics. Designed to accommodate tight counter spaces, these compact scanners deliver rapid 1,120 scans per second with an innovative 20-line scan pattern. With a tiltable scanning head for larger items and a patented sweet spot for optimal performance, they maximize both customer satisfaction and employee productivity. The OrbitCG 7180 further enhances functionality with CodeGate® technology, enabling precise targeting of barcodes for quick data transmission.
Key Features
  • 20 Line Omnidirectional Pattern: Enables aggressive scanning for hand presentation applications.
  • Sweet Spot Scanning: Engineered to optimize scanning performance and first-pass read rate.
  • Adjustable Scan Head: 30° tilt capability for versatile and targeted scanning.
  • Automatic Scanning Operation: Simple barcode presentation for effortless scanning.
  • Built-in RF EAS Antenna: Increases efficiency by deactivating RF EAS tags while scanning (OrbitCG 7180 only).

Specifications
  • Mechanical:
    • Dimensions (LxWxH): 105 mm x 102 mm x 150 mm (4.1" x 4.0" x 5.9")
    • Weight: 400 g (14.1 oz)
  • Electrical:
    • Input Voltage: 5 VDC ± 0.25 V
    • Operating Power: 900 mW (180 mA @ 5 V)
    • Standby Power: 850 mW (170 mA @ 5 V)
  • Environmental:
    • Operating Temperature: 0°C to 40°C (32°F to 104°F)
    • Storage Temperature: -40°C to 60°C (-40°F to 140°F)
    • Humidity: 5% to 95% relative humidity, non-condensing
    • Drop: Designed to withstand 1.2 m (4 ft) drops
    • Environmental Sealing: Sealed to resist airborne contaminants
  • Scan Performance:
    • Scan Pattern: Omnidirectional with 5 fields of 4 parallel lines
    • Scan Speed: 1,120 scans per second
  • Warranty: 3 year factory warranty
Honeywell MK7120-71B47 Barcode Scanner Overview

Orbit MS7120 Bar Code Reader provides aggressive omni directional scanning in an award-winning design for retailers seeking an affordable, aesthetically pleasing scanning solution.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:
  • All Standard 1D Symbologies
  • RSS-14
Light Source:
Laser
Scan Rate:
1200 scan/s
Maximum Scan Resolution:
5.20 mil
Depth of Field:
  • 0" - 3"@6.3mil
  • 0" - 5"@7.5mil
  • 0" - 6"@10.4mil
  • 0" - 7.5"@13mil
  • 0" - 9"@21mil
Scan Pattern:
Omni-directional
Scanning Distance:
8.50"
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Form Factor:
Desktop
Product Color:
White
Height:
5.9"
Width:
3.1"
Depth:
4.1"
Weight (Approximate):
14.11 oz
Miscellaneous
Package Contents:
  • Orbit MS7120 Bar Code Reader
  • MetroSelect Programming Guide
  • 7120 Installation and User's Guide
Additional Information:

Supported Interfaces:

  • Keyboard Wedge
  • Serial
  • IBM 468X/469X
  • USB

    • Compatibility:
    • OPOS and JPOS system
    Platform Supported:
    PC
    Certifications & Standards:

    Laser Class 1:

    • EN: 60825-1:1994+A11:1996+A2:2001

    EMC:

    • Class B: FCC Part 15
    • ICES-003
    • EN 55022 Class B
    Warranty
    Limited Warranty:
    1 Year
    Item Numbers
    GTIN: 0645015443710, 0783555131916, 0883585471775, 9009760014662
    UPC: 645015443710, 783555131916, 883585471775
    EAN: 0645015443710, 0783555131916, 0883585471775, 9009760014662
    UNSPSC: 43211701
