Metrologic Orbit 7120 Barcode Scanner Model Overview
Honeywell's Orbit 7120 and OrbitCG 7180 omnidirectional laser scanners present the ultimate scanning solution for retailers seeking efficiency without compromising on aesthetics. Designed to accommodate tight counter spaces, these compact scanners deliver rapid 1,120 scans per second with an innovative 20-line scan pattern. With a tiltable scanning head for larger items and a patented sweet spot for optimal performance, they maximize both customer satisfaction and employee productivity. The OrbitCG 7180 further enhances functionality with CodeGate® technology, enabling precise targeting of barcodes for quick data transmission. Key Features
20 Line Omnidirectional Pattern: Enables aggressive scanning for hand presentation applications.
Sweet Spot Scanning: Engineered to optimize scanning performance and first-pass read rate.
Adjustable Scan Head: 30° tilt capability for versatile and targeted scanning.
Automatic Scanning Operation: Simple barcode presentation for effortless scanning.
Built-in RF EAS Antenna: Increases efficiency by deactivating RF EAS tags while scanning (OrbitCG 7180 only).
Specifications
Mechanical:
Dimensions (LxWxH): 105 mm x 102 mm x 150 mm (4.1" x 4.0" x 5.9")
Weight: 400 g (14.1 oz)
Electrical:
Input Voltage: 5 VDC ± 0.25 V
Operating Power: 900 mW (180 mA @ 5 V)
Standby Power: 850 mW (170 mA @ 5 V)
Environmental:
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -40°C to 60°C (-40°F to 140°F)
Humidity: 5% to 95% relative humidity, non-condensing
Drop: Designed to withstand 1.2 m (4 ft) drops
Environmental Sealing: Sealed to resist airborne contaminants
Scan Performance:
Scan Pattern: Omnidirectional with 5 fields of 4 parallel lines
Scan Speed: 1,120 scans per second
Warranty: 3 year factory warranty

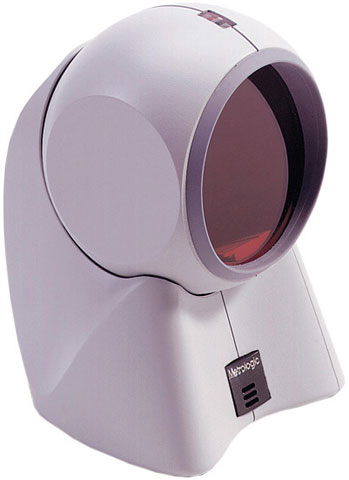

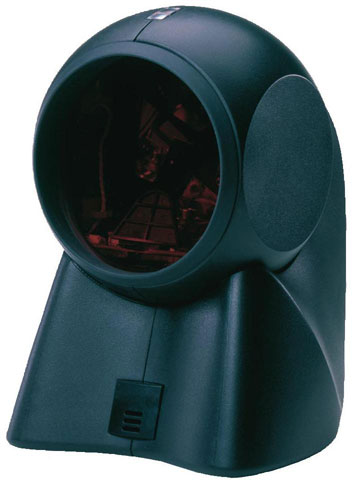

Honeywell MK7120-31B41 Barcode Scanner Overview
The Orbit MS7120 Bar Code Reader, the all-time, best-selling hands-free omnidirectional scanner presents an innovative, elegant and affordable solution to convenience retail applications where counter space is at a premium.
Recipient of multiple design honors, Orbit MS7120 Bar Code Reader award-winning shape enables Handheld scanning of large, bulky items. For added flexibility, the scanning head can be tilted within a 30° range to accommodate objects of various sizes and shapes.
What is the RFID read range of the Zebra MC3390xR?
The Zebra MC3390xR delivers a nominal RFID read range of approximately 60+ feet (18.2+ meters), making it ideal for long-range inventory tracking and item locationing in warehouses and logistics operations. This extended range is achieved through its integrated linear polarized Yagi antenna and Zebra's proprietary radio technology, enabling workers to capture tags efficiently from greater distances.
What does the Verkada LIC-BX-MA-5Y-CAP license cover?
The Verkada LIC-BX-MA-5Y-CAP is a 5-year Advanced Video Alarms license designed for one site, providing enhanced alarm capabilities including new alarm features across US and Canada. This license includes a capacity increase to support expanded monitoring needs at your facility. We offer this license as part of our comprehensive Verkada security software solutions available from barcodesinc.com.
Can the MC3390xR read barcodes in addition to RFID tags?
Yes, the MC3390xR features dual data capture capabilities with both RFID and 2D barcode scanning. It offers standard and extended-range 2D imager options (SE4770 with LED Aimer or SE4850 Extended Range Imager), allowing workers to capture all necessary barcodes and RFID tags with a single device and one press of the scan trigger.
Is this Verkada license compatible with existing camera systems?
This Advanced Video Alarms license is designed specifically for Verkada camera systems and integrates with their cloud-based platform. The license supports capacity increases for sites that need to expand their surveillance infrastructure. Contact us today to verify compatibility with your specific Verkada camera models and existing deployment.
What are the durability and environmental specifications for the MC3390xR?
The MC3390xR is built to withstand harsh warehouse and logistics environments with a 5 ft./1.5 m drop specification to concrete, IP54 sealing for protection against splashing liquids and dust, and operating temperatures ranging from -4°F to 122°F (-20°C to 50°C). It also features a 1,000 tumble specification at 1.6 ft./0.5 m, making it one of the most rugged UHF RFID readers in its class.
How long is the license valid and what happens after expiration?
The Verkada LIC-BX-MA-5Y-CAP provides 5 years of Advanced Video Alarms functionality for one site. After the license term expires, you can renew it to maintain continuous access to advanced alarm features and capacity support. Visit barcodesinc.com or contact our team to discuss renewal options and pricing.
What connectivity options does the MC3390xR offer?
The MC3390xR supports multiple connectivity standards including Wi-Fi 802.11 a/b/g/n/ac with data rates up to 866.7 Mbps on 5GHz and 300 Mbps on 2.4GHz, Bluetooth, and USB 2.0 High Speed for both host and client connections. This comprehensive connectivity ensures seamless integration with warehouse management systems and real-time data synchronization.
What are Advanced Video Alarms in Verkada?
Advanced Video Alarms are Verkada's intelligent alerting features that enable automated detection and notification of security events across your monitored sites. These new alarms provide enhanced threat detection capabilities beyond standard video surveillance, helping security teams respond faster to incidents. Our team can explain the specific alarm types and configurations available with this license.
What are the key specifications for battery life and processing power?
The MC3390xR is powered by a PowerPrecision+ Li-Ion 5200 mAh battery with fast charging support and features a Qualcomm 8056 1.8 GHz hexa-core 64-bit processor with power optimization. It includes 4GB RAM and 32GB ROM storage, delivering reliable performance for extended shifts in inventory management, order fulfillment, and cross-docking operations.
Can this license be used for multiple sites or locations?
The Verkada LIC-BX-MA-5Y-CAP license is designated for one site only. If you need to deploy Advanced Video Alarms across multiple locations, you would need separate licenses for each site. Contact us today to discuss multi-site licensing options and volume pricing available from us.
Is the MC3390xR suitable for omni-channel order fulfillment and inventory operations?
Absolutely. The MC3390xR is specifically designed for warehousing and supply chain applications including omni-channel order fulfillment, inventory cycle counting, automatic replenishment, and shrink control. Its lightweight design for one-handed operation, combined with 900+ tags/second read rate and extended-range capabilities, makes it ideal for high-volume fulfillment centers. Contact us today to find the right configuration for your operation.
What regions does this Verkada license support?
The Verkada LIC-BX-MA-5Y-CAP Advanced Video Alarms license is available exclusively for deployments in the US and Canada. This regional restriction ensures compliance with local data residency and regulatory requirements in North America. Visit barcodesinc.com to confirm service availability in your specific location.
The Honeywell MK7120-31B41 Barcode Scanner is also known as
MET-MS7120-31B41
or MK712031B41.
Full specifications (PDF)
