Honeywell ORBIT 7120 – Barcode Scanner – Corded – 1D

Part Number: MK7120-31A38
Model: ORBIT 7120
Add to My Shopping List Add to Compare
Discontinued Need Assistance?
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity
Corded
Form Factor
Presentation
Interface Options
USB
Scanner Capability
1D

Product Description:

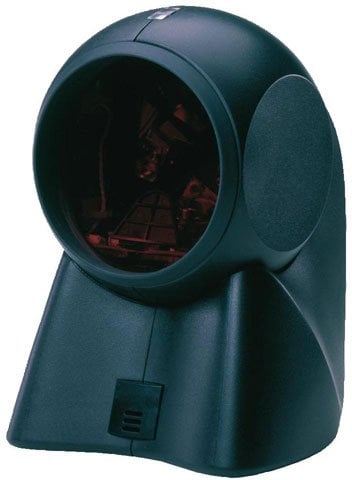

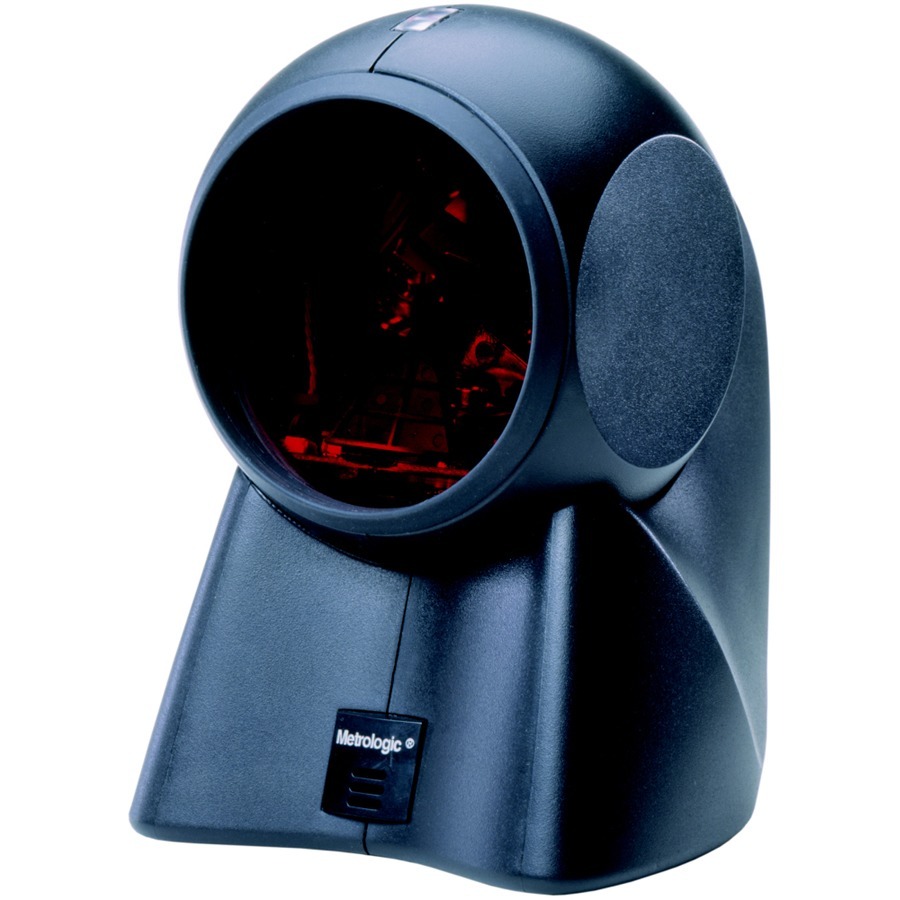

  USB kit, Honeywell MS7120 Orbit, 1D Laser, presentation, omni-directional. Includes 9.2' straight USB cable. Color: Black.
Explore all Metrologic Orbit 7120 Barcode Scanners
Add to Quote
Honeywell MK7120-31A38 Barcode Scanner
Honeywell MK7120-31A38 Barcode Scanner
Honeywell MK7120-31A38 Barcode Scanner
Honeywell MK7120-31A38 Barcode Scanner
Honeywell MK7120-31A38 Barcode Scanner Honeywell MK7120-31A38 Barcode Scanner Honeywell MK7120-31A38 Barcode Scanner Honeywell MK7120-31A38 Barcode Scanner
Full specifications (PDF)

Metrologic Orbit 7120 Barcode Scanner Model Overview

Honeywell's Orbit 7120 and OrbitCG 7180 omnidirectional laser scanners present the ultimate scanning solution for retailers seeking efficiency without compromising on aesthetics. Designed to accommodate tight counter spaces, these compact scanners deliver rapid 1,120 scans per second with an innovative 20-line scan pattern. With a tiltable scanning head for larger items and a patented sweet spot for optimal performance, they maximize both customer satisfaction and employee productivity. The OrbitCG 7180 further enhances functionality with CodeGate® technology, enabling precise targeting of barcodes for quick data transmission.
Key Features
  • 20 Line Omnidirectional Pattern: Enables aggressive scanning for hand presentation applications.
  • Sweet Spot Scanning: Engineered to optimize scanning performance and first-pass read rate.
  • Adjustable Scan Head: 30° tilt capability for versatile and targeted scanning.
  • Automatic Scanning Operation: Simple barcode presentation for effortless scanning.
  • Built-in RF EAS Antenna: Increases efficiency by deactivating RF EAS tags while scanning (OrbitCG 7180 only).

Specifications
  • Mechanical:
    • Dimensions (LxWxH): 105 mm x 102 mm x 150 mm (4.1" x 4.0" x 5.9")
    • Weight: 400 g (14.1 oz)
  • Electrical:
    • Input Voltage: 5 VDC ± 0.25 V
    • Operating Power: 900 mW (180 mA @ 5 V)
    • Standby Power: 850 mW (170 mA @ 5 V)
  • Environmental:
    • Operating Temperature: 0°C to 40°C (32°F to 104°F)
    • Storage Temperature: -40°C to 60°C (-40°F to 140°F)
    • Humidity: 5% to 95% relative humidity, non-condensing
    • Drop: Designed to withstand 1.2 m (4 ft) drops
    • Environmental Sealing: Sealed to resist airborne contaminants
  • Scan Performance:
    • Scan Pattern: Omnidirectional with 5 fields of 4 parallel lines
    • Scan Speed: 1,120 scans per second
  • Warranty: 3 year factory warranty
Honeywell MK7120-31A38 Barcode Scanner Overview

Honeywell's Orbit 7120 omnidirectional scanner-the all-time, best-selling hands-free omnidirectional laser scanner-is an innovative, elegant and affordable solution for convenience retail applications where counter space is at a premium. Recipient of multiple design honors, the Orbit omnidirectional scanner has an award-winning shape that enables hand-held scanning of large, bulky items. This laser scanner offers an omnidirectional pattern scan line which provides aggressive presentation scanning. The scanner also has an adjustable head to target scanning for larger products.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:
Reads standard 1D and GS1 DataBar symbologies
Light Source:
Laser
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 0" - 2"@5.2mil
  • 0" - 5.9"@7.5mil
  • 0" - 6.9"@10mil
  • 0" - 8.5"@13mil
  • 0" - 9.8"@26mil
Scan Pattern:
Single Line/ Omni-directional
Scanning Distance:
9.84"
Cable Type Included:
USB
Reading Angle (Skew):
60°
Reading Angle (Pitch):
60°
Maximum Ambient Light:
4842 lux
Drop Specification:
Designed to withstand 1.2 m (4´) drops
Minimum Print Contrast:
35%
Interfaces/Ports
Host Interface:
USB
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Form Factor:
Desktop
Rugged:
Yes
Product Color:
Black
Height:
5.9"
Width:
4"
Length:
4.1"
Weight (Approximate):
14.10 oz
Miscellaneous
Package Contents:
  • Orbit 7120 Omnidirectional Laser Scanner
  • MetroSelect Programming Guide
  • 7120 Installation and User's Guide
Additional Information:

Supported Interface: USB

USB Cable separate

Compatibility:

OPOS/JPOS System

Application/Usage:
Retail
Certifications & Standards:

Laser Class 1:

  • EN: 60825-1:1994+A11:1996+A2:2001

EMC:

  • Class B: FCC Part 15
  • ICES-003
  • EN 55022 Class B
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0132017661926, 0761973960622, 0783555037461, 5052178789466
UPC: 132017661926, 761973960622, 783555037461, 912200207090
EAN: 0132017661926, 0761973960622, 0783555037461, 5052178789466
UNSPSC: 43211701
