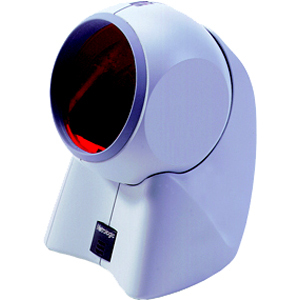

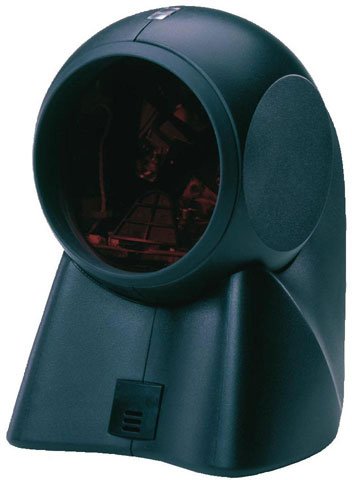

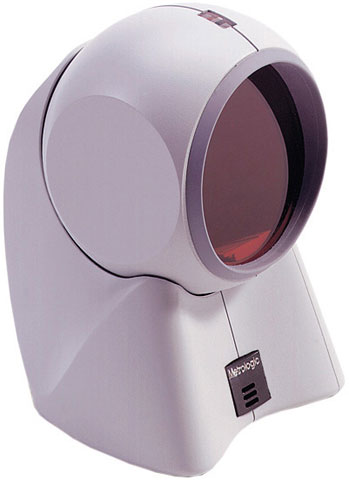

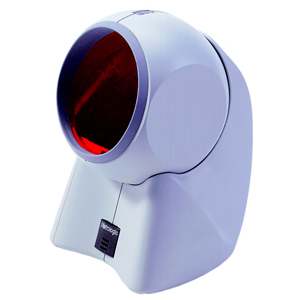

Metrologic Orbit 7120 Barcode Scanner Model Overview
Honeywell's Orbit 7120 and OrbitCG 7180 omnidirectional laser scanners present the ultimate scanning solution for retailers seeking efficiency without compromising on aesthetics. Designed to accommodate tight counter spaces, these compact scanners deliver rapid 1,120 scans per second with an innovative 20-line scan pattern. With a tiltable scanning head for larger items and a patented sweet spot for optimal performance, they maximize both customer satisfaction and employee productivity. The OrbitCG 7180 further enhances functionality with CodeGate® technology, enabling precise targeting of barcodes for quick data transmission. Key Features
20 Line Omnidirectional Pattern: Enables aggressive scanning for hand presentation applications.
Sweet Spot Scanning: Engineered to optimize scanning performance and first-pass read rate.
Adjustable Scan Head: 30° tilt capability for versatile and targeted scanning.
Automatic Scanning Operation: Simple barcode presentation for effortless scanning.
Built-in RF EAS Antenna: Increases efficiency by deactivating RF EAS tags while scanning (OrbitCG 7180 only).
Specifications
Mechanical:
Dimensions (LxWxH): 105 mm x 102 mm x 150 mm (4.1" x 4.0" x 5.9")
Weight: 400 g (14.1 oz)
Electrical:
Input Voltage: 5 VDC ± 0.25 V
Operating Power: 900 mW (180 mA @ 5 V)
Standby Power: 850 mW (170 mA @ 5 V)
Environmental:
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -40°C to 60°C (-40°F to 140°F)
Humidity: 5% to 95% relative humidity, non-condensing
Drop: Designed to withstand 1.2 m (4 ft) drops
Environmental Sealing: Sealed to resist airborne contaminants
Scan Performance:
Scan Pattern: Omnidirectional with 5 fields of 4 parallel lines
Metrologic's MS7120 Orbit is an aggressive, omni directional presentation laser bar code scanner. Designed for applications where counter space is at a premium, Orbit is the ideal presentation scanner for retail, convenience, liquor and specialty stores. In addition, Orbit's unique, contoured shape allows it to be picked up and used as a hand-held when scanning large or bulky items. Lightweight and rugged, Orbit is small in size but BIG in performance.
What makes the Zebra DS4678-DPE suitable for warehouse operations?
The DS4678-DPE delivers cordless scanning with over 50,000 scans per charge, enabling continuous operation throughout your workday without frequent recharging. Its advanced PRZM Intelligent Imaging technology provides extended scanning range for efficiently capturing barcodes on items at a distance, making it ideal for warehouse picking, receiving, and inventory tasks. We offer this scanner as a reliable solution for high-volume scanning environments where mobility and uptime are critical.
What barcode formats can the Zebra DS8288-SR4U2104SVW scanner read?
The Zebra DS8288-SR4U2104SVW features a 2 MP optical imaging system that reads both traditional 1D barcodes and innovative 2D codes with remarkable speed and precision. This versatility makes it ideal for retail environments where you encounter multiple barcode formats. We offer this scanner to support your diverse inventory and point-of-sale needs.
How does the DS4678-DPE handle harsh warehouse and manufacturing environments?
The DS4678-DPE features IP52 sealing that protects against dust and moisture, along with robust construction designed to withstand drops and tumbles common in warehouse and manufacturing settings. This durability ensures the scanner maintains reliable performance even in challenging conditions. Contact us today to discuss how this rugged design fits your operational environment.
How long does the battery last on a single charge?
The DS8288-SR4U2104SVW is equipped with a PowerPrecision+ Battery (3,500 mAh) that provides up to 100,000 scans per charge, or a PowerCap™ Supercapacitor option (1,000 F) that allows for up to 6,000 scans per charge. The choice depends on your operational needs—high-volume scanning environments benefit from the standard battery, while the supercapacitor offers quick-charge capability. Contact us today to determine which power solution best fits your warehouse or retail workflow.
What are the connectivity and deployment options for the DS4678-DPE?
The DS4678-DPE offers flexible deployment with both presentation and standard cradles, allowing you to switch between hands-free scanning mode and handheld operation based on your workflow needs. The scanner includes Zebra's Wi-Fi Friendly Mode, which prevents interference with wireless networks and ensures reliable connectivity across diverse environments. Available from us with full technical support for your deployment strategy.
Is the DS8288 scanner rugged enough for warehouse drop and spill hazards?
Yes, the Zebra DS8288-SR4U2104SVW is engineered for durability with a 10-foot drop resistance (MIL spec to concrete) and rugged construction designed to resist falls, spills, and dust. Its robust design makes it ideal for challenging retail and warehouse settings where equipment faces daily wear and tear. We offer this scanner specifically for operations requiring industrial-grade durability.
Can the DS4678-DPE scan damaged or poorly printed barcodes?
Yes, the DS4678-DPE is equipped with PRZM Intelligent Imaging technology, which enables advanced barcode scanning capabilities including the ability to read damaged, poorly printed, and direct part mark (DPM) codes. This intelligent imaging system significantly improves first-pass read rates across various barcode conditions. Visit barcodesinc.com to learn more about how this technology enhances scanning accuracy in your operations.
What connectivity options are available for this scanner?
The DS8288-SR4U2104SVW supports flexible connectivity with both USB and RS232 connections, allowing straightforward integration into your existing point-of-sale or warehouse management systems. The kit available from us includes a shielded USB cable and standard cradle for immediate deployment. This multi-connection approach ensures compatibility with diverse IT infrastructure.
What industries and use cases is the DS4678-DPE designed for?
The DS4678-DPE is versatile enough for retail, warehouse, and manufacturing applications where mobility and scanning efficiency are essential. Its cordless design, extended scanning range, and durable construction make it suitable for diverse operational scenarios from point-of-sale environments to high-volume inventory management. Contact us today to discuss how this scanner fits your specific industry requirements.
Does the DS8288 include RFID capabilities for inventory tracking?
Yes, the Zebra DS8288-SR4U2104SVW features built-in RFID technology that enables layered tracking data to aid in inventory management and theft reduction. This integrated RFID capability seamlessly manages inventory without requiring separate hardware, minimizing loss in retail environments. We offer this scanner as a comprehensive solution combining barcode scanning and RFID functionality.
How does the DS4678-DPE improve productivity compared to corded scanners?
The cordless design of the DS4678-DPE eliminates cable restrictions, allowing your workforce to move freely throughout your facility while maintaining continuous scanning capability with over 50,000 scans per charge. This freedom of movement reduces picking time, minimizes congestion around fixed scanning stations, and enables faster order fulfillment and inventory operations. Available from us as a productivity-enhancing upgrade for your scanning infrastructure.
What are the operating temperature and environmental specifications?
The DS8288-SR4U2104SVW operates reliably in temperatures ranging from 32°F to 122°F (0°C to 50°C), making it suitable for standard retail and warehouse environments. Combined with its contactless charging design and rugged construction, this scanner maintains performance across varying climate conditions while minimizing maintenance requirements. Visit barcodesinc.com to confirm compatibility with your specific facility environment.
The Honeywell MK7120-31A38-068 Barcode Scanner is also known as
MK712031A38068
Full specifications (PDF)
