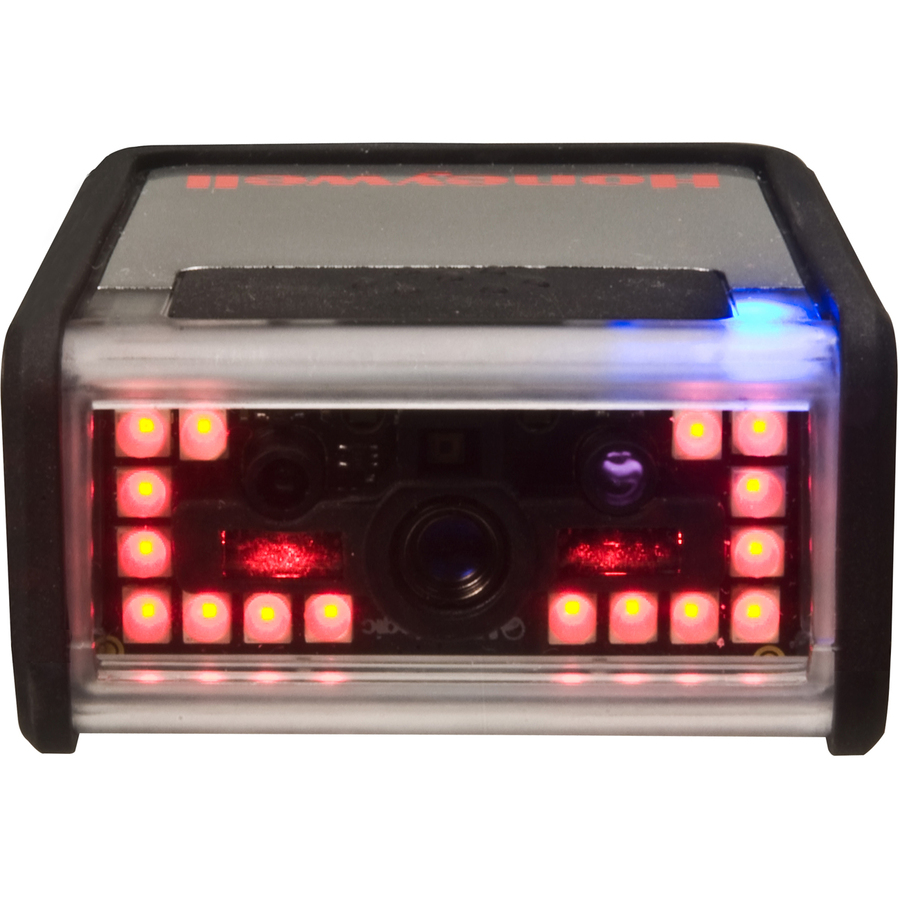

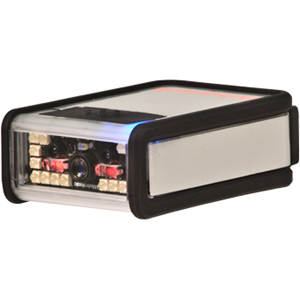

Honeywell MK4980-30B41-12 Fixed Barcode Scanner

The Honeywell MK4980-30B41-12 Fixed Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Honeywell MS4980 VuQuest - RS232 Kit (1D, PDF417, 2D + EasyID): gray scanner (MS4980-124), 2.9m (9.5') straight RS232 cable, NA power supply and documentation
  • At a low cost, it gives more control by manual scanning, thus adds to the effectiveness and profitability
  • Reads all 1D barcodes with ease so you can accomplish all your tasks more efficiently
  • Features CMOS image sensor
  • Laser-free design provides high-performance scanning without the risk of eye injury
Read More
Discontinued Need Assistance?
Add to Quote
Honeywell MS4980 VuQuest Fixed Barcode Scanner Model Overview
The Honeywell MS4980 VuQuest compact area-imaging scanner offers aggressive scanning of all 1D, PDF and 2D barcodes in a lightweight, durable and portable form factor. The scanner also features a sleek and elegant design that blends seamlessly in retail environments. Automatic infrared object detection enables robust and easy presentation scanning, while patented CodeGate technology provides precise targeting and scanning of closely grouped barcodes. The MS4980 VuQuest delivers an array of advanced features that enhance productivity. Aggressive reading of barcodes on highly reflective surfaces, such as mobile phone screens, eliminates the need to purchase additional specialty hardware. A 1.2 mega-pixel CMOS sensor allows the scanner to capture high resolution images of signatures, identification cards and personal checks.
Honeywell MK4980-30B41-12 Fixed Barcode Scanner Overview

Honeywell's MS4980 compact area-imaging scanner offers aggressive scanning of all 1D, PDF and 2D bar codes in a lightweight, durable and portable form factor. The scanner also features a sleek and elegant design that blends seamlessly in retail environments.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

Linear:

  • China Post
  • Codabar (NW7)
  • Code 11
  • Code 128
  • Code 32
  • Code 39
  • Code 93 and 93i
  • Code 2 of 5
  • EAN
  • Interleaved 2 of 5
  • Matrix 2 of 5
  • MSI
  • Plessey
  • GS1 DataBar (Formerly RSS)
  • Telepen
  • Trioptic Code
  • UPC

Stacked:

  • GS1 Composite (Formerly EAN/UCC)
  • MicroPDF417
  • PDF417

Matrix:

  • Aztec
  • Chinese Sensible Code (Han Xin Code)
  • Data Matrix
  • MaxiCode
  • QR Code
  • Micro QR Code
Light Source:
LED
Image Sensor Type:
CMOS
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 3.5" - 5.7"@5.2mil - 1D
  • 3.5" - 7.1"@7.5mil - 1D
  • 3.1" - 9.8"@10.4mil - 1D
  • 1.6" - 11.8"@13mil - 1D
  • 1.6" - 16.1"@26mil - 1D
  • 3.1" - 7.9"@7.5mil - Data Matrix
  • 3.5" - 8.5"@10mil - Data Matrix
  • 1.6" - 11.8"@15mil - Data Matrix
Interfaces/Ports
Host Interface:
Serial
Physical Characteristics
Form Factor:
Fixed Mount
Product Color:
Gray
Height:
1"
Width:
1.9"
Depth:
2.9"
Weight (Approximate):
2.50 oz
Miscellaneous
Additional Information:

USB Cable separate

Environmentally Friendly:
Yes
Warranty
Limited Warranty:
2 Year
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Honeywell MK4980-30B41-12 Fixed Barcode Scanner is also known as MET-MK498030B41-12 or MK498030B4112.
