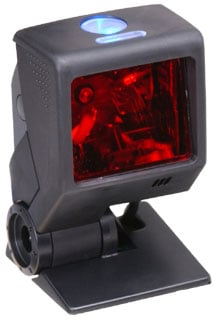

Honeywell MS3580 QuantumT – Barcode Scanner – 1D

The Honeywell QuantumT 3580 Omnidirectional Laser Scanner is designed for retailers who demand performance without sacrificing space. With an industry-leading scan speed of 1,650 scans per second, this compact scanner enhances efficiency and accelerates the checkout experience, ensuring quicker service and improved customer satisfaction. Its rugged, rubberized design withstands the rigors of daily use in moderate-volume environments like convenience stores and pharmacies. The QuantumT offers customizable scanning options, including a single-line mode for targeted scanning, making it versatile enough to handle both bulk and packaged products effortlessly.

Key Features:

• Omnidirectional & Single-Line Mode: Switch between 20 scan lines for broad coverage or a single line for precision on menus.
• Sleep Mode with IR Wake-Up: Conserves energy and extends operational life through various sleep modes.
• Small Footprint: Space-efficient design keeps countertops clear for merchandise and displays.
• Optional Stands: Adjustable height for tailored applications.
• OPOS and JPOS System Compatible: Easily integrates into existing systems.

Specifications:

• Mechanical:
• Dimensions: 66 mm x 67 mm x 108 mm (2.6" x 2.7" x 4.3")
• Weight: 170 g (6 oz)
• Electrical:
• Input Voltage: 5 VDC ± 0.25 V
• Operating Power: 1.4 W (275 mA @ 5 V)
• Standby Power: 1.2 W (230 mA @ 5 V)
• Host System Interfaces: USB, RS232, Keyboard Wedge, IBM 46xx (RS485), OCIA, Laser Emulation, Light Pen Wand Emulation
• Environmental:
• Operating Temperature: -20°C to 40°C (-4°F to 104°F)
• Storage Temperature: -40°C to 60°C (-40°F to 140°F)
• Humidity: 5% to 95% relative humidity, non-condensing
• Drop: Designed to withstand 1.5 m (5') drops
• Environmental Sealing: Sealed to resist airborne particulate contaminants
• Light Levels: 4842 Lux
• Scan Performance:
• Scan Pattern: Omnidirectional; Button activated single line
• Scan Speed: 1650 scan lines per second; Single line: 80 scan lines per second
• Print Contrast: 35% minimum reflectance difference
• Pitch, Skew: 60°, 60°
• Decode Capability: Reads standard 1D and GS1 DataBar symbologies
• Warranty: 3 year factory warranty
