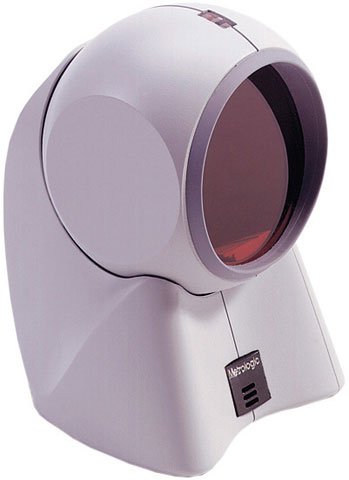

Honeywell ORBIT 7120 – Barcode Scanner – 1D

Part Number: MET-7120-47
Model: ORBIT 7120
Add to My Shopping List Add to Compare
Discontinued Need Assistance?
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D
Scanner Type
Laser, Omnidirectional

Product Description:

  SCANNER ONLY, 1D Laser, Omni-directional. Cables and power supply sold separately. Color: White.
Explore all Metrologic Orbit 7120 Barcode Scanners
Add to Quote
Honeywell MET-7120-47 Barcode Scanner
Honeywell MET-7120-47 Barcode Scanner
Honeywell MET-7120-47 Barcode Scanner Honeywell MET-7120-47 Barcode Scanner
Full specifications (PDF)

Metrologic Orbit 7120 Barcode Scanner Model Overview

Honeywell's Orbit 7120 and OrbitCG 7180 omnidirectional laser scanners present the ultimate scanning solution for retailers seeking efficiency without compromising on aesthetics. Designed to accommodate tight counter spaces, these compact scanners deliver rapid 1,120 scans per second with an innovative 20-line scan pattern. With a tiltable scanning head for larger items and a patented sweet spot for optimal performance, they maximize both customer satisfaction and employee productivity. The OrbitCG 7180 further enhances functionality with CodeGate® technology, enabling precise targeting of barcodes for quick data transmission.
Key Features
  • 20 Line Omnidirectional Pattern: Enables aggressive scanning for hand presentation applications.
  • Sweet Spot Scanning: Engineered to optimize scanning performance and first-pass read rate.
  • Adjustable Scan Head: 30° tilt capability for versatile and targeted scanning.
  • Automatic Scanning Operation: Simple barcode presentation for effortless scanning.
  • Built-in RF EAS Antenna: Increases efficiency by deactivating RF EAS tags while scanning (OrbitCG 7180 only).

Specifications
  • Mechanical:
    • Dimensions (LxWxH): 105 mm x 102 mm x 150 mm (4.1" x 4.0" x 5.9")
    • Weight: 400 g (14.1 oz)
  • Electrical:
    • Input Voltage: 5 VDC ± 0.25 V
    • Operating Power: 900 mW (180 mA @ 5 V)
    • Standby Power: 850 mW (170 mA @ 5 V)
  • Environmental:
    • Operating Temperature: 0°C to 40°C (32°F to 104°F)
    • Storage Temperature: -40°C to 60°C (-40°F to 140°F)
    • Humidity: 5% to 95% relative humidity, non-condensing
    • Drop: Designed to withstand 1.2 m (4 ft) drops
    • Environmental Sealing: Sealed to resist airborne contaminants
  • Scan Performance:
    • Scan Pattern: Omnidirectional with 5 fields of 4 parallel lines
    • Scan Speed: 1,120 scans per second
  • Warranty: 3 year factory warranty
Full specifications (PDF)
Brand
Honeywell
Model
ORBIT 7120
Scanner Type
Laser, Omnidirectional
Scanner Capability
1D
Color
White
