Honeywell HNMPE128C64T8 Network Video Recorder Overview
Honeywell's MAXPRO NVR PE is an open, flexible and scalable Enterprise IP video surveillance system. Utilizing Honeywell's high definition cameras, MAXPRO NVR PE is a powerful, high definition IP recording system with support for standards, remote viewing clients for enterprise installations.
Open - Broad Device Integrations
Integrates to full line of Honeywell IP cameras and HVE encoders
Support for ONVIF Profile S, PSIA, real time streaming protocol (RTSP) standards
Native device integrations supporting equIP® Series cameras' new features: 4K resolution, H.265 video compression codec, 3D PTZ control, 360° camera and multi-imager camera support, and intelligence events
Easy to Install and Use - Turnkey Solution
Pre-installed with all required software and pre-licensed for 32, 48, 64 or 128 channels with no extra channel license costs
Easy 3-Click wizard to live video for auto configuration - quick and efficient IP system install
Simple and logical configuration pages make setup a breeze even for the novice installer
Supports simultaneous recording, live monitoring, search and system management for up to 128 IP cameras including high definition formats with easy to use clients
Easy to use desktop clients, web client and mobile apps
Intelligence events from cameras can be viewed at the alarm panel, and trigger recording on MAXPRO NVRs for further investigation
Learn One, Know them All - Common feature-rich user experience across the MAXPRO NVR Family and MAXPRO VMS / Viewer provides familiarity across a broad range of Honeywell products saving training costs
With default settings and in a local area network for specific models
Scalable Integrated Security Solution
Multiple MAXPRO NVRs deployed for system expansion using a distributed architecture and integrated with the MAXPRO Viewer multisite software or MAXPRO VMS enterprise video management system
Integration with Honeywell WIN-PAK® and Pro-Watch® Access Control Systems providing an integrated Access Control, Intrusion and Video solution

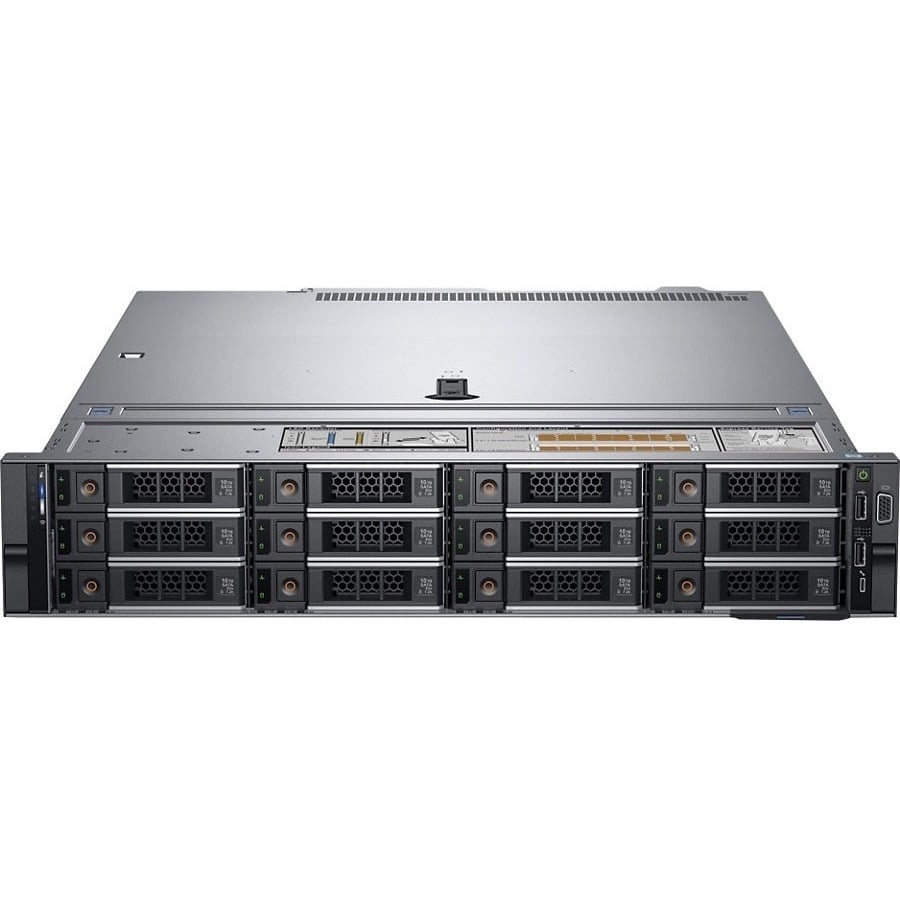

Enterprise class NVR Hardware
Provides the processor and RAID enclosure in one chassis, resulting in both space and cost savings
RAID 5 and 6 support for video storage is available through a hardware-based RAID controller, removes the loading on the processor that software RAID can bring
Convenient web browser interface to manage the RAID controller
Rack mountable with dual redundant power supplies and mirrored 2.5" operating and application solid state drives (SSDs) for high availability
12 removable storage drives with more reliable and robust SAS hard drives used for video storage
Four 1 GB NICs are optimized to separate record and viewing data to ensure 100% recording and smooth playback even with multiple client connections
What are the key specifications of the Honeywell HNMPE128C64T8 Network Video Recorder?
The Honeywell HNMPE128C64T8 is a 2U rackmount NVR that supports up to 128 channels and features an Intel Xeon Silver 4110 processor with 32GB RAM for high-performance video management. It includes 2 OS SSDs, 12 SAS drive bays with (8) 8TB SAS enterprise-class drives pre-installed, redundant power supply, dual gigabit ethernet ports, and runs Windows 10 IoT Enterprise OS. The unit supports RAID 5, 6, and 10 configurations for data protection and comes with a 5-year warranty.
What storage capacity and drive configuration does this NVR support?
The HNMPE128C64T8 features 12 SAS drive bays with removable hard drives, and comes equipped with (8) 8TB SAS enterprise-class drives for a base capacity of 64TB. The removable drive design allows for easy expansion and maintenance, while the RAID 5/6/10 support enables flexible data redundancy and protection strategies for critical surveillance applications.
Is the Honeywell HNMPE128C64T8 suitable for large-scale surveillance deployments?
Yes, the HNMPE128C64T8 is designed for enterprise-level surveillance with support for up to 128 camera channels, making it ideal for large warehouses, distribution centers, and multi-facility operations. The dual gigabit ethernet connectivity, enterprise-class SAS drives, and redundant power supply ensure reliable 24/7 operation for mission-critical security monitoring.
What redundancy and reliability features does this network video recorder include?
The HNMPE128C64T8 provides multiple redundancy layers including a redundant power supply to prevent downtime from single power failures, RAID 5/6/10 support for data protection against drive failures, and dual gigabit ethernet ports for network redundancy. These features ensure continuous operation and data integrity in demanding surveillance environments.
Can the HNMPE128C64T8 be easily integrated into existing security infrastructure?
Yes, the unit's dual gigabit ethernet ports and Windows 10 IoT Enterprise OS provide broad compatibility with standard network environments and security management software. The 2U rackmount form factor allows for seamless integration into existing server racks and data center infrastructure commonly found in enterprise facilities.
What warranty and support options are available for the Honeywell HNMPE128C64T8?
The HNMPE128C64T8 includes a comprehensive 5-year warranty covering the hardware and ensuring long-term protection of your investment. Contact us today at barcodesinc.com to discuss warranty details, extended support options, and how our team can assist with deployment and ongoing maintenance of your surveillance system.
The Honeywell HNMPE128C64T8 Network Video Recorder is also known as
HCS-HNMPE128C64T8
