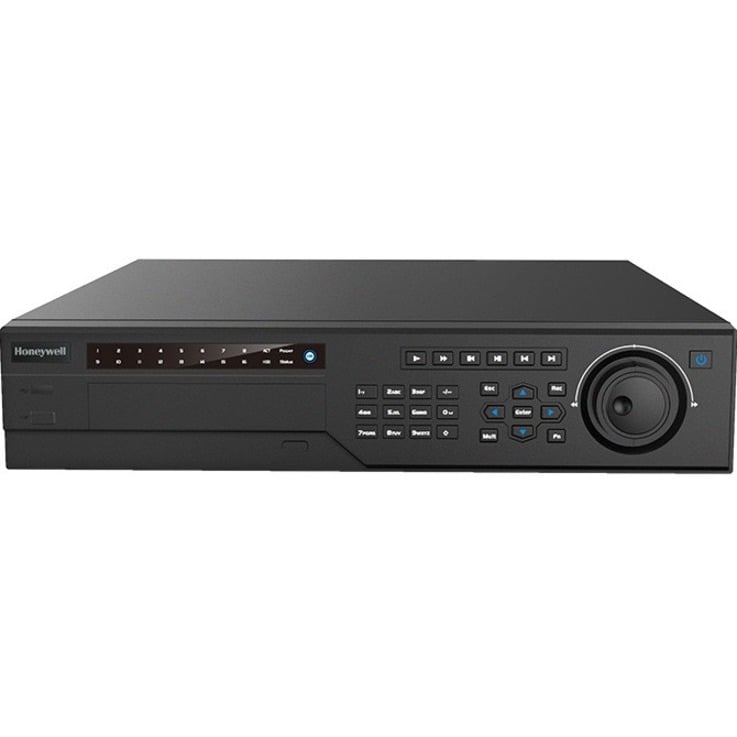

Honeywell HEN32384 Security Camera

Part Number: HEN32384
Model: Parts

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Total Number of Channels
32
Connectivity Technology
Wired
HD Recording
Yes
System Components
Network Video Recorder

Product Description:

  16Alarm in, 6Relay out 1 x eSATA port RS-232 port, 2HDMI (1 HDMI up to 3840 2160) 1 VGA, Audio 1 In/1 Out, ports, 960fps (320 Mbps), 16 PoE ports, 1 RJ-45 1Gb, 4USB ports, 1 Performance Series 4K (12MP) IP NVR, H.265 32CH NVR, 8TB RAID 5/6, 8xHDD

Honeywell Accessory Model Overview

Products and parts from Honeywell.
Honeywell HEN32384 Security Camera Overview

Introducing Honeywell's Focus 4K Embedded NVRs, our newest affordable, fully featured NVRs offering Ultra HD 4K video resolution. Choose a 16-, 32-, or 64-channel NVR, with multiple hard drive options plus the ability to expand to up to 64 TB of internal storage, for an ideal and flexible solution to fit your surveillance situation.

Fully-featured NVRs

  • High decoding capability for Ultra 4K HD viewing and recording
  • View 4/8/16 channels simultaneously with synchronized real-time playback on your monitor (depending on your model)
  • Up to 12 MP (4K) resolution live view, preview and playback
  • Up to 16 channels at 1080p, or 8 channels at 4 MP, or 4 channels at 8 MP H.265/H.264 decoding
  • De-warp fisheye camera video in local and web user interface for 360 degree situational awareness

Easy to Use

  • The Quick wizard and PoE support (for up to 16 channels) make setup fast and easy
  • Quick physical installation with the help of a simple NVR design and easy-to-understand quick installation guides
  • Simple remote configuration and firmware updating through the Honeywell Viewer web client and the Honeywell Config tool

Market Opportunities
The flexible storage options and high recording and networking performance of the Focus 4K Embedded NVRs make these NVRs perfect for a wide range of security applications.

Convenient, Flexible Storage Options

  • Internal storage supports 8 HDDs expandable up to 64 TB (8 TB each)
  • Store video clips and snapshots to external storage, such as the client's PC, through the Internet connection
  • RAID 0/1/5/6/10 external storage compatibility supports a wide range of high capacity storage options
  • Store video clips and snapshots to external network storage servers, such as an FTP site
  • Store video clips and snapshots to a USB memory device

Dynamic, Accessible Monitoring

  • Monitor from anywhere using the mobile apps for both Apple® and Android™ devices (smartphones, tablet computers, and laptops)
  • Protect the NVR's video and network setup with password-protected access
  • Conceal up to 4 areas of a scene from viewing and recording
Technical Information
Total Number of Channels:
32
Connectivity Technology:
Wired
HD Recording:
Yes
System Components:
Network Video Recorder
Storage
Hard Drive Capacity:
8 TB
Video
Video Formats:
  • H.265
  • H.264
  • Motion JPEG
  • MPEG-4
Maximum Resolution:
12MP
Maximum Frame Rate:
960 fps
Network & Communication
Ethernet:
Yes
Remote Management:
Yes
Interfaces/Ports
USB:
Yes
Total Number of Audio In Ports:
1
Total Number of Audio Out Ports:
1
Number of VGA Out:
1
HDMI:
Yes
Physical Characteristics
Height:
3.7"
Width:
17.3"
Depth:
17.9"
Weight (Approximate):
15.43 lb
Item Numbers
UNSPSC: 46171621
