Honeywell HEN16144 Security Camera

The Honeywell HEN16144 Security Camera has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Honeywell - Relay out port, 1 HDMI (up to 3840 2160) 1 VGA, Audio 1 In/1 Out, 4 Alarm in, 2 480 fps (320 Mbps), 16 PoE ports, 1 RJ-45 1Gb, 2 USB ports, 1 RS-232 Performance Series 4K (12MP) IP NVR, H.265 16CH NVR, 4TB, 2xHDD ports,
  • Up to 16 number of channels to address small-to-mid range requirements
  • Maintain and increase your staff productivity by installing this surveillance solution
  • Operate it from anywhere as long as you are connected to the internet
  • 4 TB hard drive provides enough space to record long interval of time
  • USB offers a more refined structure and safer to use connectivity
  • Ethernet connectivity is more reliable then wireless
Read More
Discontinued Need Assistance?
Add to Quote
Honeywell Parts Accessory Model Overview
Products and parts from Honeywell.

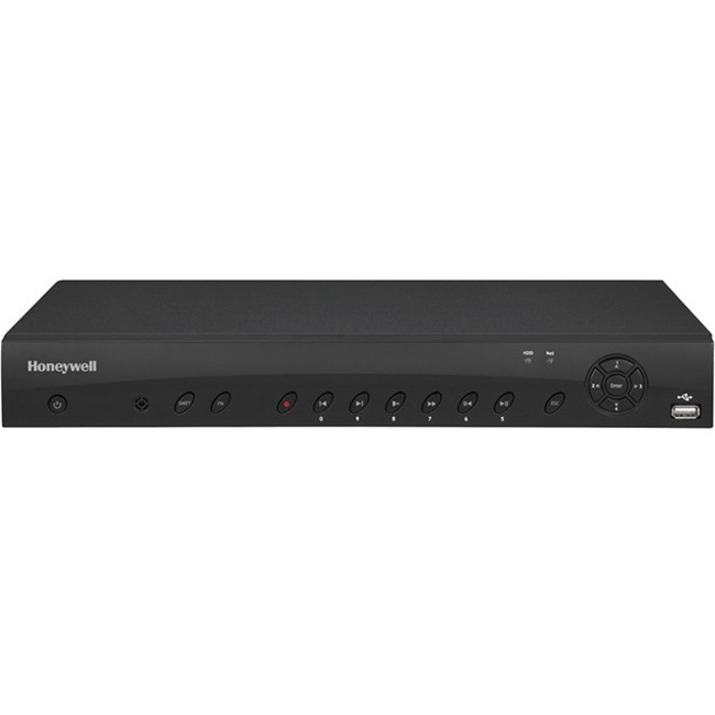

Honeywell HEN16144 Security Camera Overview

Introducing Honeywell's Focus 4K Embedded NVRs, our newest affordable, fully featured NVRs offering Ultra HD 4K video resolution. Choose an 8-, 16-, or 32-channel NVR, with multiple hard drive options plus the ability to expand to up to 16 TB of internal storage, for an ideal and flexible solution to fit your surveillance situation.

Fully-featured NVRs

  • High decoding capability for Ultra 4K HD viewing and recording
  • View 4/8/16 channels simultaneously with synchronized real-time playback on your monitor (depending on your model)
  • Up to 12 MP (4K) resolution live view, preview and playback
  • Up to 16 channels at 1080p H.265/H.264 decoding
  • De-warp fisheye camera video in local and web user interface for 360 degree situational awareness

Dynamic, Accessible Monitoring

  • Monitor from anywhere using the mobile apps for both Apple® and Android™ devices (smartphones, tablet computers, and laptops)
  • Protect the NVR's video and network setup with passwordprotected access
  • Conceal up to 4 areas of a scene from viewing and recording

Convenient, Flexible Storage Options

  • Internal storage supports 2 HDDs expandable up to 16 TB (8 TB each)
  • Store video clips and snapshots to external storage, such as the client's PC, through the Internet connection
  • Store video clips and snapshots to external network storage servers, such as an FTP site
  • Store video clips and snapshots to a USB memory device

Easy to Use

  • The Quick wizard and PoE support (for up to 8/16 channels) make setup fast and easy
  • Quick physical installation with the help of a simple NVR design and easy-to-understand quick installation guides
  • Simple remote configuration and firmware updating through the Honeywell Viewer web client and the Honeywell Config tool

Market Opportunities
The flexible storage options and high recording and networking performance of the Focus 4K Embedded NVRs make these NVRs perfect for a wide range of security applications.

Technical Information
Total Number of Channels:
16
Connectivity Technology:
Wired
HD Recording:
Yes
System Components:
Network Video Recorder
Storage
Hard Drive Capacity:
4 TB
Video
Video Formats:
  • H.265
  • H.264
  • Motion JPEG
  • MPEG-4
Maximum Resolution:
12MP
Maximum Frame Rate:
480 fps
Network & Communication
Ethernet:
Yes
Remote Management:
Yes
Interfaces/Ports
USB:
Yes
Total Number of Audio In Ports:
1
Total Number of Audio Out Ports:
1
Number of VGA Out:
1
HDMI:
Yes
Physical Characteristics
Height:
2.1"
Width:
14.8"
Depth:
12.9"
Weight (Approximate):
5.95 lb
Item Numbers
UNSPSC: 46171621
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Honeywell HEN16144 Security Camera is also known as HCS-HEN16144
