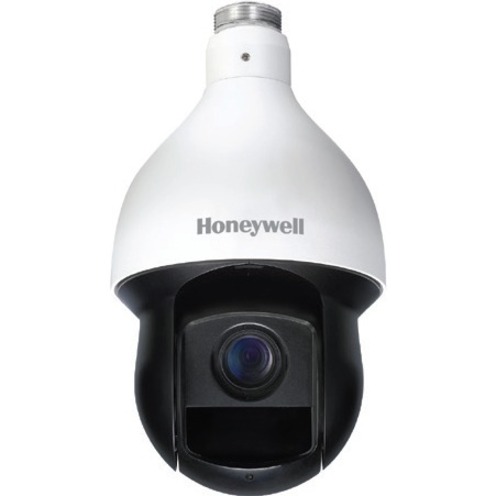

Honeywell HDZP304DI Security Camera

The Honeywell HDZP304DI Security Camera has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Honeywell - 4 MP 30x zoom, True Day/Night, WDR, 4 High Power IR LEDs, Indoor/outdoor PTZ Dome, PoE+, 802.3at 24 VAC
  • Up to 2592 x 1520 resolution for surveillance in real-time
  • CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
  • 135 mm maximum focal length for dependable identification distances with better coverage
  • 30x optical zoom ensures maximum surveillance productivity without compromising quality
  • Provides night vision of objects at a distance of up to 328 ft
  • HD recording format for stunning, vivid video results with maximum efficiency
  • Zoom lens type provides enhanced visual resolution and effectively maintains focus when its focal length changes
  • Pole Mount mount type is reliable and allows trouble-free and easy usage
  • Wired connectivity technology helps you always stay connected to your network camera for maximum productivity
Read More
Discontinued Need Assistance?
Add to Quote
Honeywell Parts Accessory Model Overview
Products and parts from Honeywell.
Honeywell HDZP304DI Security Camera Overview

Honeywell's latest HDZ PTZ is part of the growing line of IP-based products. The high definition, True Day/Night WDR PTZ cameras provide extremely crisp video with up to 4 million effective pixels and 30x optical zoom for continuous surveillance in many security applications.

Superior Image Quality

  • 4MP resolution, 30 fps image with a 1/3" 4 megapixel sensor
  • True WDR 120 dB ensures glare-free images
  • True Day/Night provides vivid color images by day and clear black and- white images at night with ICR (Infrared Cut Filter Removal)
  • Excellent low-light performance with 3D noise reduction, saving storage and bandwidth together with H.265 codec

Flexible Surveillance Solution

4.5 mm to 135 mm, F1.6-F4.4, 30x optical zoom lens with 360° continuous rotation for the flexibility to clearly view the target area with desired width and depth

  • H.265, H.264 and MJPEG codec, triple stream support
  • Six IR LEDs provide up to 328 ft. (100 m) of illumination in dimly lit or nighttime scenes (depending on scene reflectance)
  • Water resistant (IP66) camera housing
  • -40°C to 70°C working temperature
  • Built-in Analytics in the camera, such as face detection
  • Security features include individual signed certificates and data encryption

Onboard Video Storage

  • Supports up to 128 GB microSDHC card for local video storage on events, continuous, or schedule, or with network interruption. Card not included

Easy to Install and Use

  • Built-in High PoE (Power over Ethernet) eliminates separate power supply and associated wiring; 24VAC input where PoE power is unavailable
  • ONVIF Profile S and G compliant
  • Remote configuration, motorized pan, tilt and zoom adjustments and auto focus through web client

Market Opportunities

The combination of the latest digital technology and advanced video processing makes HDZ ideally suited for large-scale surveillance in cities, roadways, airports, government facilities, schools and campuses, industrial environments and anywhere detailed surveillance is essential.

Technical Information
Recording Formats:
HD
HD Recording:
Yes
Night Vision Distance:
328 ft
Number of IR LEDs:
6
Display & Graphics
Image Sensor Type:
CMOS
Color Supported:
  • Color
  • Monochrome
Effective Camera Resolution:
4 Megapixel
Video
Video Formats:
  • MJPEG
  • H.264
  • H.265
Maximum Video Resolution:
2592 x 1520
Lens
Lens Type:
Zoom
Minimum Focal Length:
4.50 mm
Maximum Focal Length:
135 mm
Optical Zoom:
30x
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Interfaces/Ports
Network (RJ-45):
Yes
Physical Characteristics
Mount Type:
  • Pole Mount
  • Corner Mount
  • Junction Box Mount
  • Wall Mount
  • Ceiling Mount
Form Factor:
Mini Dome
Height:
12.2"
Diameter:
7.3"
Weight (Approximate):
7.72 lb
Item Numbers
UNSPSC: 46171610
