Supercharge your analog security system with Honeywell's HQA technology for high definition 4 MP images over your existing coax infrastructure. The Performance Series 4 MP HQA line includes a wide range of high performing IR cameras that are easy to install and even easier to use.
Superior Image Quality
Full HD 4 MP 15 fps image (25/30 fps @ 1080p) with a 1/3" 4.1 MP sensor
Long distance transmission over coaxial cable with low attenuation and latency-up to 1,640 ft (500 m) using RG-59
True Day/Night provides vivid color images by day and clear black-and-white images at night with ICR
Excellent low-light performance with 2D/3D noise reduction
Flexible Surveillance Solution
3.6 mm fixed lens
IR LEDs provide up to 164 ft (50 m) of illumination in dimly lit or nighttime scenes (depending on scene reflectance)
Smart IR technology provides even distribution of IR
Weatherproof (IP66) camera housing
-22°F to 140°F (-30°C to 60°C) working temperature
Plug-and-play compatible with HRHT 4/8/16-Channel Hybrid 4 MP HQA DVRs
Easy to Install and Use
12 VDC power input
Uses existing BNC cabling-no rewiring required
Compatible with Honeywell's HQA-WK2 wall mount
Remote configuration through web client or from the DVR
What are the key features of the Honeywell HD30HD4 security camera?

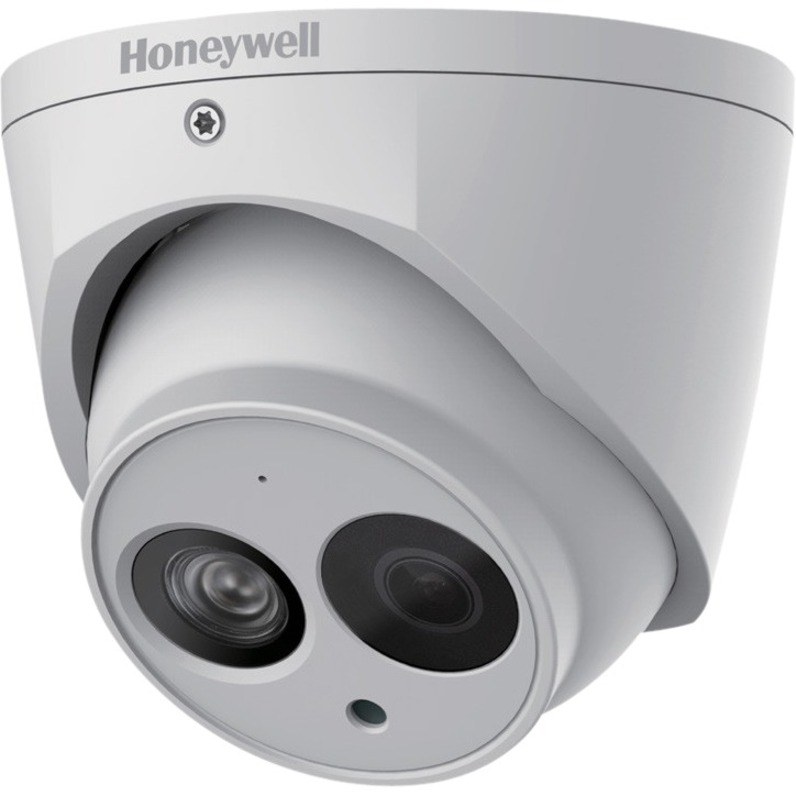

The Honeywell HD30HD4 is a 4 MP TDN (True Day/Night) indoor/outdoor IR ball camera with 1/3" CMOS sensor, delivering 15fps at 4 MP or 30fps at 1080p. It features 1 channel HQA output and 1 channel SD output, a 3.6mm fixed lens, 120dB wide dynamic range, and high-power IR LEDs for superior low-light performance. We offer this model as part of our comprehensive security camera lineup available from barcodesinc.com.
Is the Honeywell HD30HD4 suitable for outdoor use?
Yes, the HD30HD4 is rated for both indoor and outdoor installation with its rugged TDN (True Day/Night) design and integrated high-power IR LEDs for reliable performance in low-light and nighttime conditions. The camera's 120dB wide dynamic range ensures clear imaging in challenging lighting environments. Contact us today to discuss outdoor security camera deployment for your facility.
What power requirements does the Honeywell HD30HD4 need?
The Honeywell HD30HD4 operates on 12V DC power, making it compatible with standard security camera power supplies and infrastructure. This 12V DC design simplifies installation and integration into existing surveillance systems. Visit barcodesinc.com or contact our team for power supply recommendations and installation support.
What video outputs does the HD30HD4 provide?
The HD30HD4 provides dual video outputs: 1 channel HQA (High Quality Analog) output for primary surveillance feeds and 1 channel SD (Standard Definition) output for secondary or backup recording. This dual-output configuration offers flexibility for multi-channel recording systems and legacy equipment integration. We can help you select the right connectivity solution for your security infrastructure.
What is the infrared capability of the Honeywell HD30HD4?
The HD30HD4 features high-power IR LEDs that enable True Day/Night operation, providing clear imaging in complete darkness and low-light environments without requiring additional lighting. The integrated IR illumination is optimized for the camera's 4 MP resolution and fixed 3.6mm lens. Contact us today to learn more about IR camera specifications and placement considerations.
What resolution and frame rates does the HD30HD4 support?
The Honeywell HD30HD4 delivers 4 MP resolution at 15 frames per second or 1080p resolution at 30 frames per second, allowing you to prioritize image quality or frame rate based on your surveillance requirements. The 1/3" CMOS sensor provides excellent light sensitivity for detailed monitoring. Visit barcodesinc.com to compare this model with other security camera options in our inventory.
The Honeywell HD30HD4 Security Camera is also known as
HCS-HD30HD4
