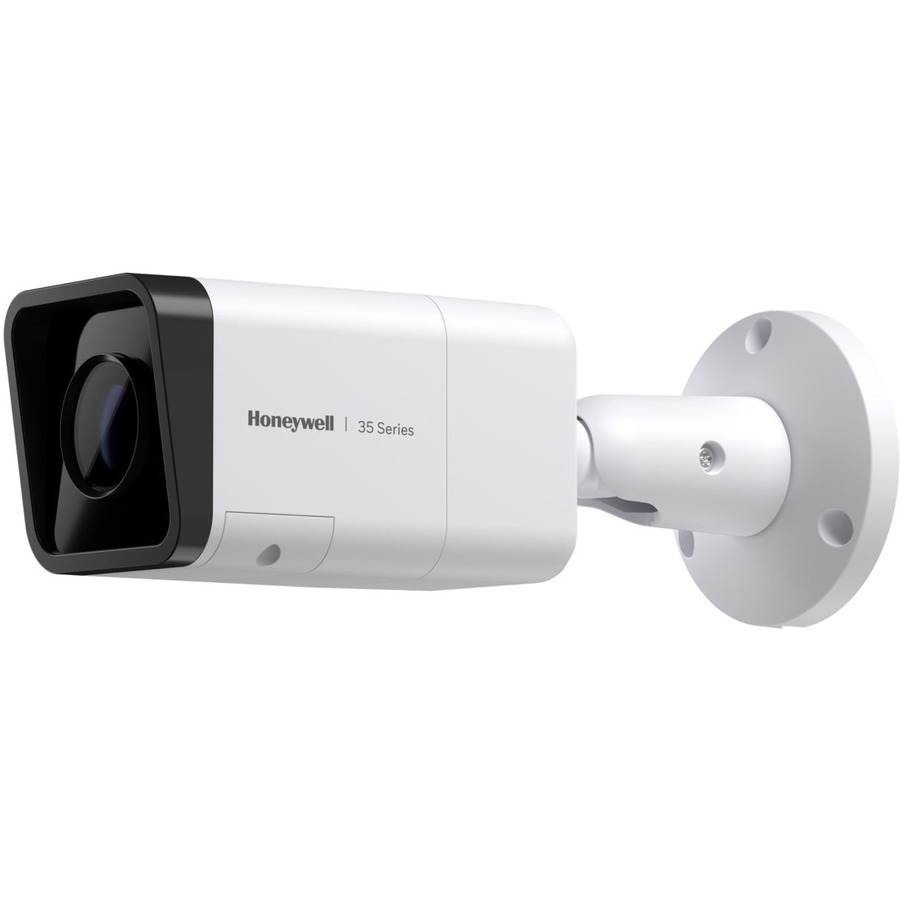

Honeywell HC35WB5R2 Security Camera

Part Number: HC35WB5R2
Model: Parts
$403.75
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
HD Recording
Yes
Night Vision
Yes
Night Vision Distance
196.85 ft
Night Vision Type
Infrared

Product Description:

  Security Cameras, Honeywell, 35 Series Network Camera, 5MP, IP, PoE, Up to 60m IR Distance, Smart Motion Detection, 2.7-13.5mm Lens

Honeywell Parts Accessory Model Overview

Products and parts from Honeywell.
Honeywell HC35WB5R2 Security Camera Overview

The 35 Series AI IP cameras offer exceptional picture clarity even in low light conditions and have a higher resolution IR camera to cover larger areas both day and night. These cameras include smart motion detection based on humans and vehicles to reduce false alarms and support audio and alarm interface for local alarm integration. They feature flexible system integration, easy installation, and secure data transmission to reduce regulatory compliance, installation and operating costs and increase productivity and efficiency.

Features & Benefits:

  • Fully NDAA compliant camera containing no content or material from any companies or their subsidiaries prohibited under US National Defense Authorization Act (NDAA) Section 889
  • Resolutions ranging from 2 MP (2592x1944) up to 8 MP (3840x2160)
  • A wide range of form factors, lenses, zoom and mounting options including micro dome, rugged dome, ball, bullet and speed dome (PTZ)
  • True day/night provides vivid color images by day and clear black and white images at night using a removable IR cut filter
  • Excellent low-light performance with 2D/3D noise reduction, saving storage and bandwidth together with smart codec
  • True WDR (120 dB) ensures glare-free images
  • ONVIF Profile S, G, T compliant
  • Smart IR Technology provides even distribution of IR LEDs in dimly lit or nighttime scenes
  • Water/dust proof (IP66/IP67) and IK10 (model dependent)
  • Stream encryption - camera to MAXPRO and Series 35 NVRs under AES256 providing secure data integrity and privacy
  • People counting, intrusion, loitering and smart motion detection smart analytics built in to increase situational awareness and reduce false alarms
  • Remote configuration, motorized zoom adjustments and auto focus via web client or from the NVR
  • Multiple language GUI

Certifications:

  • FCC PART 15, CE (EN 55032)
  • CE(EN 50130-4)
  • UL LISTED TO UL/CSA 62368-1
  • CE(EN 62368-1)
  • CE(EN 63000)
  • UL LISTED TO UL/CSA 62368-1
  • UAE(Cabinet Decree No.10 of 2017)
Technical Information
HD Recording:
Yes
Night Vision:
Yes
Night Vision Distance:
196.85 ft
Night Vision Type:
Infrared
Number of IR LEDs:
4
Display & Graphics
Image Sensor Type:
CMOS
Color Supported:
Color
Field of View:
H:88°-26°, V:65°-20°
Effective Camera Resolution:
5 Megapixel
Video
Video Formats:
  • H.265 (HEVC)
  • H.264
  • MJPEG
Maximum Video Resolution:
2592 x 1944
Maximum Frame Rate:
30 fps
Video Signal Format:
  • NTSC
  • PAL
Lens
Lens Type:
Varifocal
Minimum Focal Length:
2.70 mm
Maximum Focal Length:
13.50 mm
Lens Included:
Yes
Maximum Aperture:
f/1.6
Optical Zoom:
5x
Exposure
Shortest Shutter Speed:
1/32000 Second
Longest Shutter Speed:
1/8 Second
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Storage
Storage Type:
Memory Card
Interfaces/Ports
Network (RJ-45):
Yes
Power Description
Input Voltage:
12 V DC
Power Source Type:
  • DC
  • PoE
Physical Characteristics
Mount Type:
  • Junction Box Mount
  • Pole Mount
  • Corner Mount
Form Factor:
Bullet
Durability:
  • Water Resistant
  • Dust Resistant
Color Family:
Dual Color
Product Color:
  • Signal White
  • Pantone Black
Diameter:
3.4"
Weight (Approximate):
2.03 lb
Environmental Conditions
Minimum Operating Temperature:
-40°F (-40°C)
Maximum Operating Temperature:
140°F (60°C)
Maximum Operating Humidity:
90%
Miscellaneous
Features:
  • Day/Night
  • SD Card Local Storage
  • Wide Dynamic Range
  • Back Light Compensation (BLC)
  • Highlight Compensation (HLC)
  • Automatic White Balance
  • Gain Control
  • 2D Digital Noise Reduction (2DNR)
  • 3D Digital Noise Reduction
  • Defog
Impact Protection Rating:
IK10
Ingress Protection Rating:
  • IP66
  • IP67
Country of Origin:
Vietnam
TAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
5 Year
Item Numbers
UNSPSC: 46171610

Frequently Asked Questions

The Honeywell HC35WB5R2 is a 5MP IP network camera equipped with a 2.7-13.5mm lens and PoE (Power over Ethernet) connectivity for flexible installation. It delivers up to 60 meters of infrared distance for reliable night vision and includes smart motion detection capabilities to minimize false alerts and reduce storage requirements.

Yes, the HC35WB5R2 is designed for outdoor IP surveillance applications with robust construction and extended IR range. Its weather-resistant design and PoE power delivery make it ideal for perimeter monitoring, loading docks, and outdoor facility coverage.

PoE (Power over Ethernet) allows the HC35WB5R2 to receive both power and data through a single network cable, eliminating the need for separate power supplies. This simplifies installation, reduces cabling costs, and is particularly valuable for warehouse and logistics environments where camera placement flexibility is critical.

The HC35WB5R2 provides up to 60 meters of infrared distance, enabling clear night vision surveillance across large warehouse areas, outdoor yards, and perimeter zones without requiring additional lighting infrastructure.

Yes, the camera includes smart motion detection that intelligently identifies movement while reducing false triggers from environmental factors like shadows or weather. This feature helps optimize video storage and allows security teams to focus on genuine security events.

We offer comprehensive Honeywell HX2 Service Contracts that provide hassle-free protection on your camera investment for up to three years after purchase, lowering your total cost of ownership. Contact us today to discuss extended warranty and service plan options that best fit your security infrastructure needs.

The Honeywell HC35WB5R2 Security Camera is also known as HCS-HC35WB5R2
