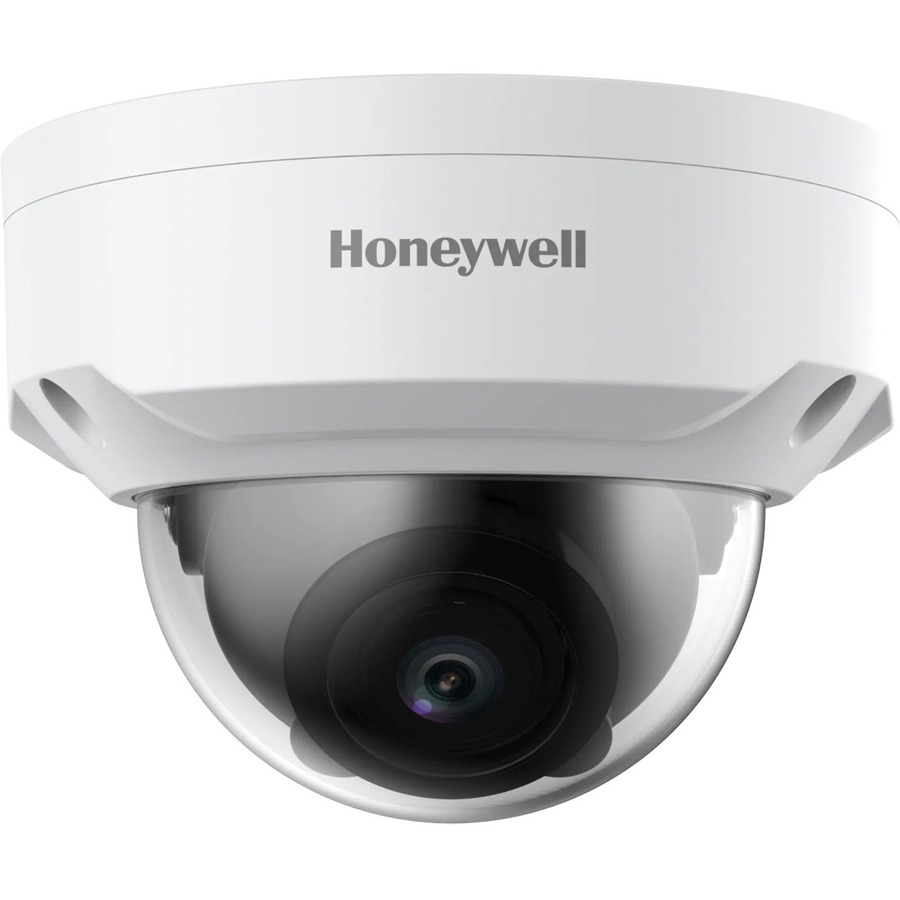

Honeywell H4W4PER2 Security Camera

The Honeywell H4W4PER2 Security Camera has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Honeywell - Network TDN IR Rugged Indoor/Outdoor Mini Dome Camera, 4 MP, 2.7 13.5 mm MFZ, WDR, H.265+

1 / 3" 4 Megapixel progressive CMOS
2.7 mm - 13.5 mm MFZ Lens
True day/night (IR-cut filter)
Wide dynamic range up to 120 dB
Low-light performance down to 0.005 Lux/F1.5 (Color,30IRE), 0 Lux/F1.5 (IR ON)
Up to 131 ft (40 m) IR illumination, depending on scene reflectance
H.265 Smart Codec
Triple stream support
Support up to 256GB Micro SD card
PoE (802.3af) or 12 VDC support

Need a different version? See all Honeywell Parts Accessories

Discontinued Need Assistance?

Add to Quote

Overview

Honeywell Parts Accessory Model Overview

Products and parts from Honeywell.

Honeywell H4W4PER2 Security Camera Overview

Honeywell is taking quality and reliability to the next level with the new Performance Series line of 8MP (4K) Ultra HD IP cameras, 4MP and 2MP IP cameras. The Honeywell Performance IP cameras, including rugged bullet, indoor/outdoor micro domes, indoor/outdoor mini domes and ball cameras, offer incomparable picture clarity, hassle-free flexible system integration, and secure data transmission-and they install easily too!

Detailed Specs

Technical Information

HD Recording:

Yes

Night Vision:

Yes

Night Vision Distance:

131.23 ft

Night Vision Type:

Infrared

Number of IR LEDs:

Display & Graphics

Image Sensor Type:

CMOS

Color Supported:

Color

Field of View:

H: 104°~27°, V: 55°~15°

Effective Camera Resolution:

4 Megapixel

Video

Video Formats:

H.265
H.264
MJPEG

Maximum Video Resolution:

2688 x 1520

Maximum Frame Rate:

30 fps

Video Signal Format:

NTSC
PAL

Lens

Lens Type:

Varifocal

Minimum Focal Length:

2.70 mm

Maximum Focal Length:

13.50 mm

Lens Included:

Yes

Maximum Aperture:

f/1.5

Optical Zoom:

Exposure

Shortest Shutter Speed:

1/100000 Second

Longest Shutter Speed:

1/3 Second

Network & Communication

Connectivity Technology:

Wired

Remote Management:

Yes

Storage

Storage Type:

Memory Card

Interfaces/Ports

Network (RJ-45):

Yes

Power Description

Input Voltage:

12 V DC

Physical Characteristics

Mount Type:

Pole Mount
In-ceiling
Junction Box Mount
Wall Mount
Pendant Mount
Ceiling Mount

Form Factor:

Mini Dome

Durability:

Vandal Resistant

Product Color:

White

Diameter:

4.8"

Weight (Approximate):

1.10 lb

Environmental Conditions

Minimum Operating Temperature:

-40°F (-40°C)

Maximum Operating Temperature:

140°F (60°C)

Operating Humidity:

95%

Miscellaneous

Features:

Wide Dynamic Range
Day/Night
Built-in IR LED
Rugged Design
Face Detection
Motion Detection
Back Light Compensation (BLC)
Highlight Compensation (HLC)
Automatic White Balance
Gain Control

Impact Protection Rating:

IK10

Ingress Protection Rating:

IP66

Environmentally Friendly:

Yes

Country of Origin:

China

Item Numbers

UNSPSC: 46171610

Reviews

Q&A

Get help from a Barcoding Expert!

The Honeywell H4W4PER2 Security Camera is also known as HCS-H4W4PER2
