Honeywell FX1BD1A1AUS0JA Data Terminal

The Honeywell FX1BD1A1AUS0JA Data Terminal has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Honeywell Marathon - MARATHON INDR 802.11ABGN BT WIN 7 PRO 2GB RAM X 64GB SSD. Non-Cancelable/Non-Returnable.
  • Touchscreen adds an additional hour of efficiency per worker to the workday
  • Built-in Wi-Fi enables seamless transfer of captured images and scanned data between devices
  • 7" WVGA display screen allows you to execute two applications at the same time
  • Windows 7 Professional has impressive features to offer along with a comfortable interface to work on
  • 2 GB RAM / 64 GB flash memory helps run applications rapidly and stores the mightiest databases
  • Wireless connectivity technology helps you always stay connected to your handheld terminal for maximum productivity
  • With integrated Bluetooth module, gadgets such as portable tag printers can be utilized rapidly and effortlessly without cable connections
Read More
Discontinued Need Assistance?
Add to Quote

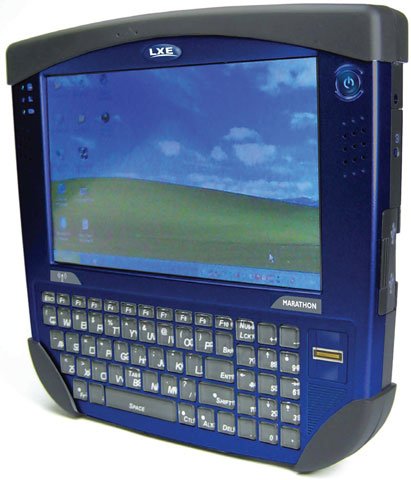

Honeywell Marathon Data Terminal Model Overview
The Honeywell Marathon field computer weighs less than a kilogram, and is powered by an Intel Atom processor that runs full Windows 7 or Windows XP operating systems. It combines multiple built-in data-entry options, including a 7" outdoor-visible touchscreen, full QWERTY keyboard, integrated fingerprint reader that doubles as a mouse, and a high-resolution color camera. The unit's available desk and vehicle SmartDock cradles allow one-handed undocking and user-friendly peripheral interfaces. Additional bolt-on accessories include a mag stripe reader, 2D imager, and extended life batteries for 8- and 12-hour continuous operation, all of which attach securely to the unit while maintaining the overall IP-65 rating for protection against dust and water.
Honeywell FX1BD1A1AUS0JA Data Terminal Overview

Honeywell's Marathon FX1 field computer packs all of the mission-critical features and connectivity mobile workers require to thrive into an IP65-rated fully-rugged data terminal. At just 2.2 pounds with a thin 1.3" profile, the Marathon mobile field computer is easy to maneuver. The computer's Summit 802.11 a/b/g/n and Bluetooth® wireless technology allows it to easily connect to your networks and peripheral devices. Combined with an Atom processor running a full Microsoft® Windows® XP or Windows® 7 operating system, the Marathon field computer presents an uncompromised technology experience.

Technical Information
Connectivity Technology:
Wireless
Drop Specification:
  • 1.2m
Air Electrostatic Discharge (+/-):
8kV DC
Contact Electrostatic Discharge (+/-):
4kV DC
Processor & Chipset
Processor Manufacturer:
Intel
Processor Type:
Atom
Processor Speed:
1.60 GHz
Memory
Standard Memory:
2 GB
Flash Memory:
64 GB
Display & Graphics
Screen Size:
7"
Screen Mode:
WVGA
Screen Resolution:
800 x 480
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
Resistive
Keyboard/Keypad
Keyboard Layout:
QWERTY
Network & Communication
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11a/b/g/n
Bluetooth:
Yes
Wireless Security:
  • WPA
  • WPA2 (Personal and Enterprise)
  • 802.11x
  • EAP-TLS
  • EAP-TTLS/MSCHAPv2
  • PEAPv0/EAP-MSCHAPv2
  • PEAPv1 / EAP-GTC
  • WMM
  • CWG-RF Profile
  • WAPI
Interfaces/Ports
USB:
Yes
Software
Operating System:
Windows 7 Professional
Battery Information
Battery Capacity:
3060 mAh
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Included:
Yes
Physical Characteristics
Height:
8.1"
Width:
7.8"
Depth:
1.7"
Weight (Approximate):
2.20 lb
Miscellaneous
Package Contents:
  • Marathon Field Computer
  • Battery
Certifications & Standards:
  • IP65
  • CCX v.4
  • CE
  • IEC 60825-1
  • 21 CFR 1040.10
  • 21 CFR 1040.11
Warranty
Limited Warranty:
2 Year
Item Numbers
UNSPSC: 43211715
Questions? Get Help from
a Mobile Expert!

What is your operating system?

The Honeywell FX1BD1A1AUS0JA Data Terminal is also known as HSM-FX1BD1A1AUS0JA or FX1BD1A1AUS0JA.
