Full specifications (PDF)
Connectivity Technology:
Wireless
Scanning Capability:
- 1D
- 2D
Scan Engine Model:
N6703
Image Sensor Type:
Imager
Drop Specification:
Multiple 1.5 m (5 ft) drops to concrete at room temperature

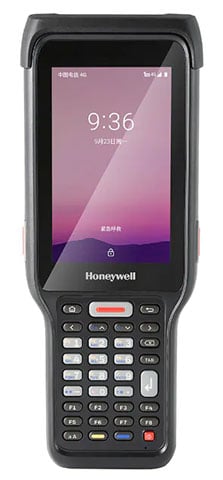

Honeywell EDA61K Mobile Computer Model Overview
Honeywell's rugged ScanPal EDA61K Mobile Computer helps businesses automate and error-proof workflows indoors or out. The handheld EDA61K is quipped with a battery that lasts for two to three shifts and a lightweight, ergonomically balanced design that minimizes user fatigue. The EDA61K was designed to help keep material flowing smoothly all day long, even during peak season. This handheld computer is available with both 34-key numeric and 47-key alpha-numeric keypad options and a choice of scan engines that read from a few centimeters up to 15 meters.
Honeywell EDA61K-1AC934PGRK Mobile Computer Overview
Enterprise Mobile Computer
The Honeywell ScanPal™ EDA61K enterprise mobile computer is designed for small and medium businesses to conduct missioncritical workflows in light-duty warehouse, distribution center and retail applications.
The ScanPal EDA61K is a rugged, keyed mobile computer that helps businesses automate and error-proof workflows in indoor or outdoor warehouses, distribution centers and retail backrooms. With a battery that lasts for two to three shifts and a lightweight, ergonomically balanced design that minimizes user fatigue, the EDA61K helps keep material flowing smoothly all day long, even during peak seasons.
Available with both 34-key numeric and 47-key alpha-numeric keypad options, and a choice of scan engines that read from a few centimeters to up to 15 meters (49.2 feet), the EDA61K is available in configurations suitable for most applications. The EDA61K comes with 4G LTE cellular support in many countries, making it possible to eliminate Wi-Fi infrastructure in some cases.
Combined with a rugged package that survives repeated 1.5-meter (4.9 ft) drops to concrete, this means you can be confident that the EDA61K will deliver reliable, secure, compatible performance for years, maximizing return on investment.
In addition to traditional keypads, the EDA61K is available with pre-licensed StayLinked SmartTE software and a sensitive, 4-inch touchscreen that make it suitable for new workforces more accustomed to touchscreens, reducing training and adoption time - a key advantage for enterprises employing temporary workers during peak seasons.
Technical Information
Processor & Chipset
Processor Manufacturer:
Qualcomm
Processor Type:
Snapdragon
Processor Model:
SDM450
Processor Core:
Octa-core (8 Core)
Processor Speed:
1.80 GHz
Memory
Standard Memory:
3 GB
Flash Memory:
32 GB
Memory Card Supported:
microSDHC
Display & Graphics
Screen Size:
4"
Screen Mode:
WVGA
Display Screen Type:
LCD
Touchscreen Information
Touchscreen:
Yes
Multi-touch Screen:
Yes
Keyboard/Keypad
Keyboard Type:
Alphanumeric
Network & Communication
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11 a/b/g/n/ac
Bluetooth:
Yes
Bluetooth Standard:
Bluetooth 4.2
Near Field Communication (NFC):
Yes
GPS:
Yes
Interfaces/Ports
USB:
Yes
Camera
Rear Camera:
Yes
Rear Camera Resolution:
13 Megapixel
Software
Operating System:
Android
Battery Information
Battery Capacity:
7000 mAh
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Included:
Yes
Maximum Battery Run Time:
25 Hour
Battery Voltage:
3.60 V
Maximum Battery Recharge Time:
5.50 Hour
Removable Battery:
Yes
Environmental Conditions
Operating Temperature:
-4°F (-20°C) to 122°F (50°C)
Storage Temperature:
-22°F (-30°C) to 158°F (70°C)
Humidity (Non-condensing):
10% to 90%
Physical Characteristics
Form Factor:
Full-size
Rugged:
Yes
Weight (Approximate):
15.34 oz
Miscellaneous
Application/Usage:
- Warehouse
- Retail
- Distribution
Ingress Protection (IP) Rating:
IP65
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC:
43211715
