What barcode symbologies does the Zebra FS10 support?
The Zebra FS10 supports a comprehensive range of 1D and 2D barcode symbologies, including Code 128 and DataMatrix. The scanner's software is upgradeable through simple license purchases, allowing you to add support for new symbologies and faster scanning capabilities as your warehouse needs evolve. For a complete list of supported symbologies, we recommend reviewing the product reference guide available from us.
What barcode types does the Unitech MS340B scanner read?
The MS340B reads all major 1D barcode symbologies including UPC, EAN, JAN, EAN 128, ASCII, and GS1 DataBar. It also has the capability to read damaged or poorly printed barcodes, making it reliable for real-world warehouse and logistics environments.
What is the scanning range of the FS10 fixed scanner?
The FS10-SR model features a 35° field of view lens with typical working ranges that vary by barcode resolution. For example, 10 mil Code 128 barcodes scan from 2 inches near range to 15 inches far range, while 20 mil Code 128 extends to 24 inches. Exact decode ranges depend on printing resolution, contrast, illumination source, and ambient light conditions. Contact us today for detailed specifications matching your specific application.
How fast can the MS340B scan barcodes?
The MS340B delivers up to 500 scans per second using advanced auto-shuttle-emulation smart detection technology. This high scan speed provides superior data capture performance and incredible responsiveness for fast-paced operations.
How is the Zebra FS10 installed and configured?
The FS10 is designed for straightforward setup and installation with minimal complexity. Zebra's Aurora software provides breakthrough ease in device management, allowing you to configure and deploy the scanner quickly across your warehouse or distribution center. The scanner connects via USB and supports auto-focus functionality, making it simple to integrate into existing conveyor systems and fixed-mount applications. Visit barcodesinc.com for installation guides and technical support.
What connectivity options are available with the MS340B?
The MS340B supports multiple interface options including USB, keyboard wedge (KBW), and RS232 connectivity. This versatility allows seamless integration with various warehouse management systems and point-of-sale environments.
What warranty and support options are available for the FS10?
The Zebra FS10 is warranted against defects in workmanship and materials for two years from the date of shipment under Zebra's standard hardware warranty. We offer recommended support services including Zebra OneCare Select and Zebra OneCare Essential for extended coverage and maintenance. Contact us today to discuss warranty options and service plans that fit your operational requirements.
What is the scanning range and depth of field for the MS340B?
The MS340B offers an extended depth of field up to 400 mm (20 mil Code 39) at PCS 90% accuracy, with near and far range capabilities varying by barcode density from 80 mm to 400 mm. This long-range capability makes it suitable for both close-range and distance scanning applications.
Is the Zebra FS10 suitable for warehouse and distribution center applications?
Yes, the FS10 is specifically designed for track-and-trace operations in warehouses and distribution centers. Its compact size accommodates installation anywhere scanning is needed, and the fast 2D barcode decoder with red and white illumination provides reliable performance in varied lighting conditions. The fixed-mount design makes it ideal for conveyor systems, dock operations, and other high-volume scanning environments.
Is the Unitech MS340B durable enough for warehouse environments?
Yes, the MS340B is built for durability with a 1.5-meter drop resistance rating and an IP42 environmental rating. It features 1,000,000 switch life cycles and operates reliably in temperatures from 0°C to 50°C, making it suitable for demanding warehouse and logistics operations.
What connectivity options does the FS10 offer?
The Zebra FS10 connects via USB, providing a simple and reliable interface for integration with warehouse management systems and other enterprise applications. The scanner's straightforward connectivity, combined with Zebra Aurora software management, ensures quick deployment without complex configuration requirements. Available from us with all necessary cables and accessories to support your installation needs.
How much barcode data can the MS340B store?
The MS340B has a memory capacity that can store up to 30,000 EAN13 barcodes, providing local storage capability for offline scanning operations. This onboard memory allows for flexible deployment in environments where immediate connectivity may not be available.

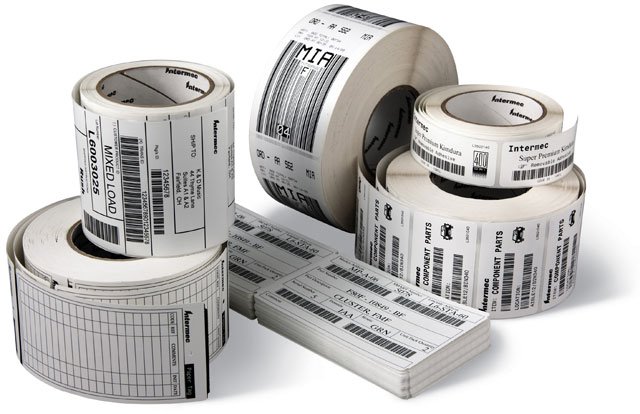

The Honeywell E01918 Barcode Label is also known as
