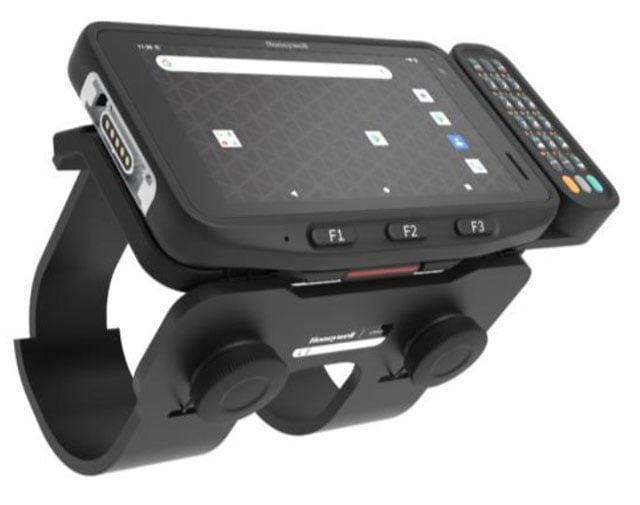

Honeywell CW45 – Mobile Computer

Part Number: CW45-X0N-BND10SG
Model: CW45 Rugged Weable Computer
to get Free Ground Shipping on your order.
3-year Premium Plus ($622.25)
3-year Premium ($347.25)
No Support
$2,225.80

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

IP Rating
IP67
Interface Options
Bluetooth

Product Description:

  Portable Data Terminals, Honeywell CW45, Wearable Mobile Computer, Wi-Fi 6, 6/64GB, 8/13MP Front/Side Facing Cameras, Keypad, Standard Battery. Includes Mount And Comfort Pad. Arm Strap And Charger Required And Sold Separately.

Honeywell CW45 Rugged Mobile Computer Model Overview

The CW45 Rugged Wearable Computer is engineered to enhance productivity for frontline mobile workers across various industries, including warehouse, retail, logistics, and manufacturing. Boasting a low-profile design, a large HD display, and enterprise-grade durability, the CW45 provides instant access to workflow information right at the point of activity. Built on Honeywell's advanced Mobility Edge™ platform, this device ensures reliable performance, secure connectivity, and simplified deployment, making it the ideal tool for businesses seeking to optimize their operations and adapt to evolving market demands.

Key Features
  • Mobility Edge platform: Accelerates deployments and optimizes performance.
  • Wi-Fi 6 Technology: Enhances data throughput and improves communication quality.
  • Ergonomic Design: Low center of gravity and comfortable accessories for hands-free operation.
  • Hot-Swap Battery: Allows uninterrupted use by swapping batteries in under a minute.
  • Compliance: Meets IP65 and IP67 standards for durability and resistance to moisture and particles.


Specifications
  • Dimensions: 133 mm x 86 mm x 14 mm
  • Weight: 292 g (9.9 oz)
  • Display: 4.7 in HD (1280 x 720) multi-touch capacitive
  • Operating Temperature: -20°C to +50°C (-4°F to +122°F)
  • Processor: Qualcomm QCS4290/QCM4290 octa-core, 2.0GHz
  • Memory: 6 GB DDR4X RAM, 64 GB UFS Flash
  • Battery: 3.6 V, 3500 mAh (standard); 3.6 V, 7000 mAh (extended)
  • Hours of Operation: Up to 12 hours with extended battery
  • Wireless Connectivity: Wi-Fi 6, Bluetooth V5.1, Integrated NFC reader
Honeywell CW45-X0N-BND10SG Mobile Computer Overview

The CW45 wearable computer is a rugged performance tool that improves productivity by ergonomically presenting the workflow information at the point of activity and integrating the tools needed to perform the job at hand.

Ultra-reliable performance, data connectivity, and communications for frontline mobile workers in warehouse/DC, retail, logistics, and manufacturing is always where it is needed, when it is needed. Designed from the ground up for comfort, ease of use, and reliability, the CW45 offers a low profile, large HD display, enterprise-level ruggedness, and comfortable, easy-to-wear accessories. The CW45 is designed for businesses that invest in sophisticated solutions and want a durable, stable, secure platform on which to implement them. Built on the newest generation of Honeywell's Mobility Edge™ platform, the CW45 delivers the lifecycle, security, and durability to optimize solution return on investment in the long term.

NEW CHALLENGES CALL FOR AN AGILE RESPONSE

Change in the supply chain has only accelerated in recent years, with e-commerce adoption spreading across every demographic group and retail category, elevated safety protocols and disruptions in trade patterns are becoming routine. Businesses are meeting these challenges with new solutions based not only on advanced mobile devices, but also key software capabilities. The CW45 family is integrated with powerful software solutions from Honeywell such as Operational Intelligence asset optimization and Smart Talk unified communications, as well as a broad ecosystem of UEM, WMS, retail and ERP solutions.

Technical Information
Connectivity Technology:
Wired/Wireless
Scanning Capability:
  • 2D
  • 1D
Scanner Range:
FlexRange
Sensor Type:
  • Ambient Lighting
  • Light Sensor
  • Accelerometer
  • Gyroscope
  • eCompass
  • Gravity Sensor
Features:
  • Water Resistant
  • Gorilla Glass 5
  • Drop Resistant
  • IK08 Impact Protection
  • VoIP
  • Push-to-talk
  • Lightweight
Drop Specification:

Multiple 1.8 m (6 ft) drops to concrete at -20°C to +50°C (-4°F to +122°F) per MIL-STD-810H

Processor & Chipset
Processor Manufacturer:
Qualcomm
Processor Core:
Octa-core (8 Core)
Processor Speed:
2 GHz
Memory
Standard Memory:
6 GB
Flash Memory:
64 GB
Memory Card Supported:
UFS
Display & Graphics
Screen Size:
4.7"
Screen Mode:
HD
Screen Resolution:
1280 x 720
Display Screen Type:
LED
Touchscreen Information
Touchscreen:
Yes
Multi-touch Screen:
Yes
Network & Communication
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11 a/b/g/n/ac/ax
Bluetooth:
Yes
Bluetooth Standard:
Bluetooth 5.1 BLE
Near Field Communication (NFC):
Yes
Interfaces/Ports
USB:
Yes
Camera
Front Camera:
Yes
Front Camera Resolution:
8 Megapixel
Side Camera:
Yes
Side Camera Resolution:
13 Megapixel
Software
Operating System:
Android
Upgradable Operating System:
Android 15
Power Description
Power Source:
Battery
Battery Information
Battery Capacity:
3500 mAh
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Included:
Yes
Maximum Battery Run Time:
6 Hour
Battery Voltage:
3.60 V
Maximum Battery Recharge Time:
3 Hour
Removable Battery:
Yes
Environmental Conditions
Operating Temperature:
-4°F (-20°C) to 122°F (50°C)
Storage Temperature:
-22°F (-30°C) to 158°F (70°C)
Humidity (Non-condensing):
5% to 95%
Physical Characteristics
Form Factor:
Wearable
Rugged:
Yes
Weight (With Battery):
10.30 oz
Miscellaneous
Package Contents:
  • CW45 Handheld Terminal
  • Battery
Application/Usage:
  • Warehouse
  • Retail
  • Logistics
  • Manufacturing
  • Supply Room
Ingress Protection (IP) Rating:
  • IP65
  • IP67
Warranty
Limited Warranty:
1 Year
Additional Warranty Information:
  • Computer Warranty: One year factory warranty
  • Battery Pack Warranty: One year factory warranty
Item Numbers
UNSPSC: 43211715
