Honeywell CW45 – Mobile Computer

Part Number: CW45-X0N-AND10SG
Model: CW45 Rugged Weable Computer
Best Seller
3-year Premium Plus ($581.10)
3-year Premium ($306.10)
No Support
Add to My Shopping List Add to Compare
$2,217.31
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

IP Rating
IP65
Interface Options
Bluetooth

Product Description:

  Mobile Computer, Honeywell CW45, Wearable Mobile Computer, Wi-Fi 6, 6/64GB, 8/13mp Front/Side Facing Cameras, Standard Battery (3400mAh), Device Client Pack (DCP) Pre-Loaded (1 Year DCP Term License), Includes Mount And Comfort Pad. Arm Strap And Charger Required And Sold Separately.
Explore all Honeywell CW45 Rugged Mobile Computers
Add to Quote
Honeywell CW45-X0N-AND10SG Mobile Computer
Honeywell CW45-X0N-AND10SG Mobile Computer
Honeywell CW45-X0N-AND10SG Mobile Computer
Honeywell CW45-X0N-AND10SG Mobile Computer Honeywell CW45-X0N-AND10SG Mobile Computer

Full specifications (PDF)

Honeywell CW45 Rugged Mobile Computer Model Overview

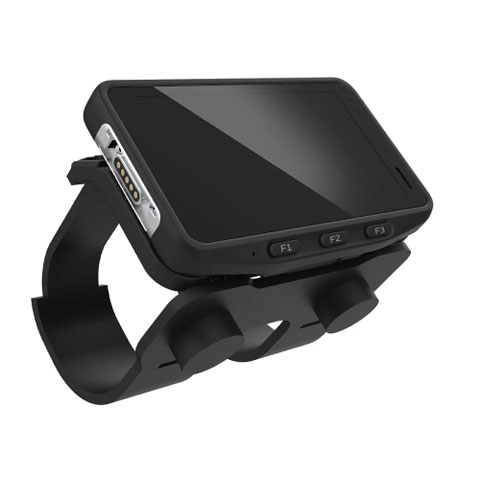

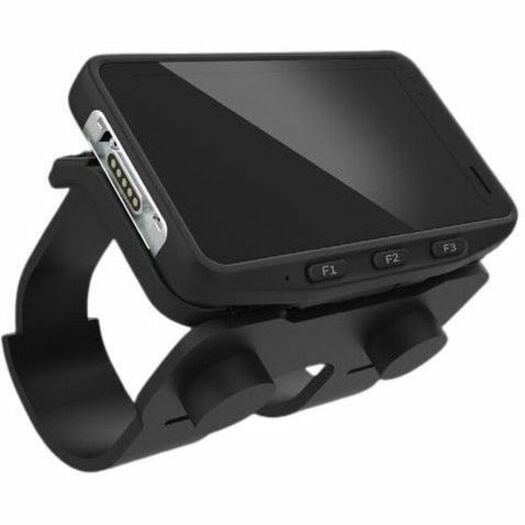

The CW45 Rugged Wearable Computer is engineered to enhance productivity for frontline mobile workers across various industries, including warehouse, retail, logistics, and manufacturing. Boasting a low-profile design, a large HD display, and enterprise-grade durability, the CW45 provides instant access to workflow information right at the point of activity. Built on Honeywell's advanced Mobility Edge™ platform, this device ensures reliable performance, secure connectivity, and simplified deployment, making it the ideal tool for businesses seeking to optimize their operations and adapt to evolving market demands.

Key Features
  • Mobility Edge platform: Accelerates deployments and optimizes performance.
  • Wi-Fi 6 Technology: Enhances data throughput and improves communication quality.
  • Ergonomic Design: Low center of gravity and comfortable accessories for hands-free operation.
  • Hot-Swap Battery: Allows uninterrupted use by swapping batteries in under a minute.
  • Compliance: Meets IP65 and IP67 standards for durability and resistance to moisture and particles.


Specifications
  • Dimensions: 133 mm x 86 mm x 14 mm
  • Weight: 292 g (9.9 oz)
  • Display: 4.7 in HD (1280 x 720) multi-touch capacitive
  • Operating Temperature: -20°C to +50°C (-4°F to +122°F)
  • Processor: Qualcomm QCS4290/QCM4290 octa-core, 2.0GHz
  • Memory: 6 GB DDR4X RAM, 64 GB UFS Flash
  • Battery: 3.6 V, 3500 mAh (standard); 3.6 V, 7000 mAh (extended)
  • Hours of Operation: Up to 12 hours with extended battery
  • Wireless Connectivity: Wi-Fi 6, Bluetooth V5.1, Integrated NFC reader
Honeywell CW45-X0N-AND10SG Mobile Computer Overview

The CW45 wearable computer is a rugged performance tool that improves productivity by ergonomically presenting the workflow information at the point of activity and integrating the tools needed to perform the job at hand.

Ultra-reliable performance, data connectivity, and communications for frontline mobile workers in warehouse/DC, retail, logistics, and manufacturing is always where it is needed, when it is needed. Designed from the ground up for comfort, ease of use, and reliability, the CW45 offers a low profile, large HD display, enterprise-level ruggedness, and comfortable, easy-to-wear accessories. The CW45 is designed for businesses that invest in sophisticated solutions and want a durable, stable, secure platform on which to implement them. Built on the newest generation of Honeywell's Mobility Edge™ platform, the CW45 delivers the lifecycle, security, and durability to optimize solution return on investment in the long term.

NEW CHALLENGES CALL FOR AN AGILE RESPONSE

Change in the supply chain has only accelerated in recent years, with e-commerce adoption spreading across every demographic group and retail category, elevated safety protocols and disruptions in trade patterns are becoming routine. Businesses are meeting these challenges with new solutions based not only on advanced mobile devices, but also key software capabilities. The CW45 family is integrated with powerful software solutions from Honeywell such as Operational Intelligence asset optimization and Smart Talk unified communications, as well as a broad ecosystem of UEM, WMS, retail and ERP solutions.

FEATURES AND BENEFITS

The Mobility Edge platform allows companies to test and validate applications once, accelerate deployments across the enterprise, optimize device performance, simplify maintenance, and extend product lifecycle.

Designed expressly for wearable utility and premium comfort, the CW45 offers a low center of gravity, compact size, the ability to warm-swap the battery without removing the device, and easy-to-use, durable wearable accessories that ensure the device comfortably stays in place for optimum hands-free operation.

Embedded with the latest Wi-Fi 6 technology, the CW45 increases data throughput, and provides a better experience on voice or video communications even in a highly dense connected environment.

Complete the solution set with software and accessories to mobilize your workforce. Connect the 8675i rugged wearable scanner (via Bluetooth or power cable) for rapid, reliable, and FlexRange(TM) data capture. Tap-to-pair with Honeywell Voice headsets. Implement Honeywell Guided Work Voice solutions. The full solution is ready to work when you are.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
  • 1D
  • 2D
Sensor Type:
  • Light Sensor
  • Accelerometer
  • Gyroscope
  • eCompass
  • G-sensor
Features:
  • Water Resistant
  • Gorilla Glass 5
  • VoIP
  • Push-to-talk
Drop Specification:
  • Multiple 1.8 m (6 ft) drops to concrete at -20°C to +50°C (-4°F to +122°F) per MIL-STD-810H


Processor & Chipset
Processor Manufacturer:
Qualcomm
Processor Core:
Octa-core (8 Core)
Processor Speed:
2 GHz
Memory
Standard Memory:
6 GB
Flash Memory:
64 GB
Display & Graphics
Screen Size:
4.7"
Screen Mode:
HD
Screen Resolution:
1280 x 720
Display Screen Type:
LED
Touchscreen Information
Touchscreen:
Yes
Multi-touch Screen:
Yes
Keyboard/Keypad
Buttons & Keys:

F1, F2, and F3 keys along the bottom edge of the device. Default functions are Volume up, Volume down, and Enter. Reprogrammable by application.

Network & Communication
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11 a/b/g/n/ac/ax
Bluetooth:
Yes
Bluetooth Standard:
Bluetooth 5.1 BLE
Near Field Communication (NFC):
Yes
Interfaces/Ports
USB:
Yes
Camera
Front Camera:
Yes
Front Camera Resolution:
8 Megapixel
Rear Camera:
Yes
Rear Camera Resolution:
13 Megapixel
Software
Operating System:
Android 12
Power Description
Power Source:
Battery
Battery Information
Battery Capacity:
3400 mAh
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Included:
Yes
Battery Voltage:
3.60 V
Maximum Battery Recharge Time:
3 Hour
Removable Battery:
Yes
Environmental Conditions
Operating Temperature:
-4°F (-20°C) to 122°F (50°C)
Storage Temperature:
-22°F (-30°C) to 158°F (70°C)
Humidity (Non-condensing):
5% to 95%
Physical Characteristics
Form Factor:
Wearable
Rugged:
Yes
Weight (With Battery):
10.30 oz
Miscellaneous
Application/Usage:
  • Retail
  • Logistics
  • Manufacturing
  • Warehouse
Ingress Protection (IP) Rating:
  • IP65
  • IP67
Warranty
Additional Warranty Information:

One-year factory warranty

Item Numbers
UNSPSC: 43211715

Recommended Accessories

Category

  • Batteries (2)
  • Cables, Connectors, and Adapters (2)
  • Carrying and Protective Accessories (5)
  • Docks and Cradles (8)
  • Keyboards and Front Panels (2)
  • Mounting Hardware and Stands (1)
  • Power Device (1)
  • Screen Protector (1)
  • Spare Parts (1)

Recommended Accessories for Model: Honeywell CW45-X0N-AND10SG Mobile Computer

Top Batteries Purchased With Honeywell CW45-X0N-AND10SG

Top Cables, Connectors, and Adapters Purchased With Honeywell CW45-X0N-AND10SG

Top Carrying and Protective Accessories Purchased With Honeywell CW45-X0N-AND10SG

See All Carrying and Protective Accessories for Honeywell CW45-X0N-AND10SG Mobile Computer >

Top Docks and Cradles Purchased With Honeywell CW45-X0N-AND10SG

  • Honeywell CW45-5CB-UVN-0 Docks and Cradles
    Honeywell CW45-5CB-UVN-0 Docks and Cradles
    Docks and Cradles, Honeywell, 5 Bay Charge Base Charges 4 CW45 Computers And 4 CW45 Batteries, Fits Standard Or Extended Batteries. Includes Charger And Power Supply. Regional Power Cable Required And Must Be Ordered Separately.
    Item on backorder — chat for lead time
    $884.23
    Add to Quote
  • Honeywell CW45-CB-UVN-0 Docks and Cradles
    Honeywell CW45-CB-UVN-0 Docks and Cradles
    Docks and Cradles, Honeywell, Chargebase, 4 Bay Charger For CW45, Recharge Up To 4 Computers With Standard Or Extended Batteries Installed, Kit Includes 4 Bay Charger And Power Supply. Regional Power Cord Required And Must Be Ordered Separately.
    Item on backorder — chat for lead time
    $584.64
    Add to Quote
  • Honeywell CW45-QBC-0 Docks and Cradles
    Honeywell CW45-QBC-0 Docks and Cradles
    Docks and Cradles, Honeywell, 4 Bay CW45 Battery Charger (Fits Standard Or Extended Batteries). Includes Charger And Power Supply. Regional Power Cable Required And Must Be Ordered Separately.
    In Stock
    $466.99
    Add to Quote
See All Docks and Cradles for Honeywell CW45-X0N-AND10SG Mobile Computer >

Top Keyboards and Front Panels Purchased With Honeywell CW45-X0N-AND10SG

Top Mounting Hardware and Stands Purchased With Honeywell CW45-X0N-AND10SG

Top Power Device Purchased With Honeywell CW45-X0N-AND10SG

  • Honeywell CW45-EB-UVN-0 Power Device
    Honeywell CW45-EB-UVN-0 Power Device
    Power Systems and Supplies, Honeywell, Ethernet Homebase Charger For CW45 With Standard Or Extended Battery. Kit Includes Homebase And Power Supply. Regional Power Cord Required And Must Be Ordered Separately. Supports Usb Client Via Type B. Charges One Spare Battery (Standard Or Extended).
    In Stock
    $368.99
    Add to Quote

Top Screen Protector Purchased With Honeywell CW45-X0N-AND10SG

Top Spare Parts Purchased With Honeywell CW45-X0N-AND10SG

Frequently Asked Questions

The CW45 is a rugged wearable computer built on Honeywell's Mobility Edge platform, featuring a 4.7-inch HD display (1280 x 720), Wi-Fi 6 technology for enhanced data throughput, and an ergonomic low-profile design optimized for hands-free operation. It includes a standard 3400mAh hot-swap battery, dual cameras (8MP front and 13MP side-facing), and meets IP65 and IP67 standards for enterprise-grade durability against moisture and particles. We offer this model pre-loaded with Device Client Pack (DCP) with a 1-year term license, plus mounting hardware and comfort pad included.

Yes, the CW45 is specifically engineered for warehouse, retail, logistics, and manufacturing environments where frontline workers need instant access to workflow information at the point of activity. Its rugged design, low center of gravity, ergonomic accessories, and hot-swap battery capability enable uninterrupted productivity in demanding operational settings. Contact us today to discuss how we can configure the CW45 to optimize your warehouse operations.

The CW45 operates reliably in temperatures ranging from -20°C to +50°C (-4°F to +122°F), making it suitable for both indoor and outdoor warehouse environments. With IP65 and IP67 compliance ratings, the device provides robust protection against dust, moisture, and particle ingress, ensuring durability in harsh industrial conditions. Visit barcodesinc.com for detailed environmental specifications and deployment recommendations.

The CW45 features Wi-Fi 6 technology, which enhances data throughput and improves communication quality for seamless connectivity in enterprise environments. The device is built on Honeywell's Mobility Edge platform, which ensures secure connectivity and simplified deployment across your mobile workforce. We can help you integrate the CW45 with your existing network infrastructure—contact us today for connectivity solutions.

The CW45-X0N-AND10SG comes pre-loaded with Device Client Pack (1-year DCP term license), includes a mount and comfort pad for ergonomic wear. However, the arm strap and charger are required and sold separately, allowing you to customize your setup based on your specific operational needs. We offer compatible accessories available from us to complete your mobile computer deployment.

Both models feature the same core Honeywell CW45 platform with identical rugged specifications, display, and Mobility Edge technology; the primary difference lies in their specific software configurations and licensing terms. The CW45-X0N-AND10XG is a variant that may include different enterprise features or bundled services compared to the AND10SG model. Contact us today to compare these configurations and determine which best fits your warehouse or logistics requirements.

The Honeywell CW45-X0N-AND10SG Mobile Computer is also known as HSM-CW45X0NAND10SG or CW45X0NAND10SG.
