Full specifications (PDF)
Connectivity Technology:
Wireless
Honeywell CV31A1HPAC000000 Data Terminal
Part Number:
CV31A1HPAC000000
Model:
Thor CV31

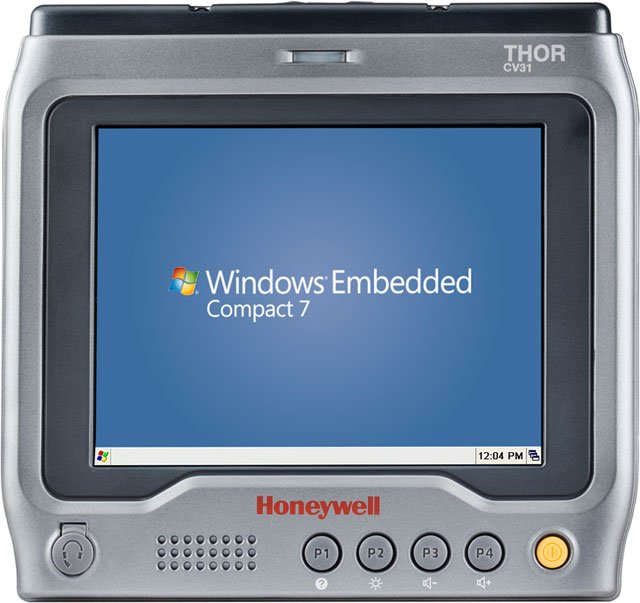

Honeywell CV31 Data Terminal Model Overview
The Honeywell Thor CV31 vehicle-mount terminal combines the latest high performance computing technology into a very compact form factor that minimizes driver line-of-sight obstruction. The CV31 presents your critical workflow information where it is easily seen, within reach, but never in the way. Optimized for vehicle installations, the CV31 features an internal 30-minute UPS backup battery and optional integrated DC-DC power converter that saves on the expense of installing external converters or charge protection devices. The UPS backup eliminates the frustrating wait to login and reconnect after swapping vehicle batteries, keeping operators productive. At shift's end, there’s no longer a need to wait—idling the vehicle and wasting fuel—to logout and power-down the Thor CV31; an optional ignition-control cable automates the process with a simple turn of the key.
Honeywell CV31A1HPAC000000 Data Terminal Overview
The Thor™ CV31 vehicle-mount computer combines the latest computing technology with a small footprint, presenting your critical supply chain workflow information where it is easily seen, within reach, but never in the way. With its 16.5 cm (6.5 in) display and 1.5 GHz dual-core CPU, the CV31 can power through complex voice-, screen- and scan-intensive applications with ease.
Technical Information
Processor & Chipset
Processor Manufacturer:
Texas Instruments
Processor Type:
OMAP 4
Processor Speed:
1.50 GHz
Memory
Standard Memory:
1 GB
Flash Memory:
16 GB
Display & Graphics
Screen Size:
6.5"
Graphics Modes:
VGA
Display Screen Type:
LED
Touchscreen:
Yes
Display Resolution:
640 x 480
Network & Communication
Bluetooth:
Yes
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11a/b/g/n
Interfaces/Ports
Network (RJ-45):
Yes
Serial:
Yes
USB:
Yes
Microphone:
Yes
VGA:
Yes
Headphone:
Yes
Built-in Devices
Built-in Devices:
Speaker
Software
Operating System:
Windows Embedded Compact 7
Physical Characteristics
Height:
2.2"
Width:
7.4"
Length:
6.9"
Weight (Approximate):
3.64 lb
Miscellaneous
Certifications & Standards:
- IP66
- IEC 61000-4-2
- MIL-STD-810G
- Wi-Fi Certified
- Cisco® CCXv4 Certified
- CCC
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN:
0735548756002
UPC:
735548756002
EAN:
0735548756002
UNSPSC:
43211505
