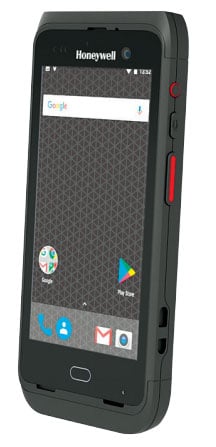

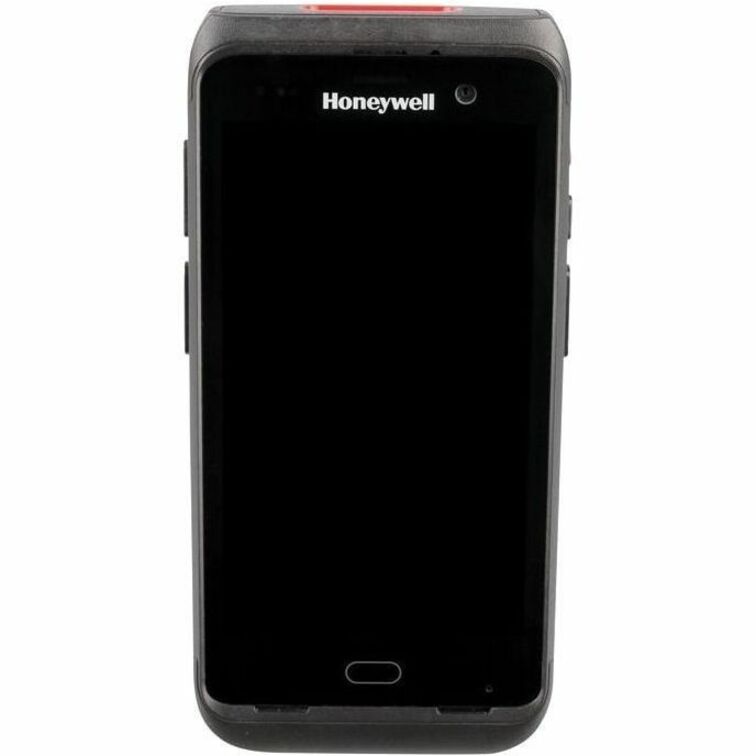

Honeywell CT40 XP – Mobile Computer – Android – 4 GB

Part Number: CT40P-L1N-28R11BF
Model: CT40 XP
to get Free Ground Shipping on your order.
3-year Premium Plus ($568.11)
3-year Premium ($293.11)
No Support
$1,805.26

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Scan Range
Standard Range, FlexRange
RAM Memory
4 GB
IP Rating
IP65, IP67
Interface Options
Bluetooth, USB, WWAN

Product Description:

  Mobile Computer, Honeywell CT40 XP, Android 1D/2D Imager, Wireless, IP65/IP67, On-Screen Touch, Phone-size, Bluetooth, 4GB/32GB Memory, N6803 Engine, Standard Battery, Hot Swap, Metal Battery Latch Button

Honeywell CT40 XP Mobile Computer Model Overview

With Honeywell’s latest FlexRange™ imager, the CT40 XP captures barcodes from a distance of a few centimeters up to 10 meters (32.8 feet). It’s sleek and achieves hours of productive use. Available with an 8-mega pixel front facing camera with with a 1920 x 1080 pixel display, the CT40 XP is a perfect solution for group training and remote inspection. Missing or misplaced IT assets cause not only operational downtime, but can lead to security risks. Featuring “Device Finder” solution, the CT40 XP can easily be located when misplaced or lost, even when the batteries are drained after a certain period of time. That helps to protect your investment and provide operational efficiency.The CT40 XP reduces device operational downtime due to its warm swap capability and the ruggedness of the device. Store associates are able to swap the battery without powering off the operating system. Combined with a rugged package and a protective boot that survive repeated 1.8-meter drops, the CT40 XP will deliver reliable, secure performance for years, maximizing return on investment.The CT40 XP includes the Mobility Edge system-on-module (SOM), a locked-down, standardized computer platform incorporating a powerful Qualcomm® processor that is easily upgradable to Android™ 11 (R), with a commitment to support Android 12 (S) and 13 (T), subject to feasibility.

Features and Benefits

  • The Mobility Edge enterprise management tools allow companies to test and validate applications once, accelerate deployments across the enterprise, optimize device performance, simplify maintenance and extend product lifecycle.
  • Snappy, accurate data capture from a few centimeters to up to 10 m (32.8 ft) with Honeywell’s innovative
  • FlexRange scan imager, a 13-megapixel, auto-focus camera and 8-megapixel front-facing camera.
  • Easily locate a lost device to prevent productivity loss even when the battery is drained thanks to a second BLE beacon.
  • Includes warm swap for uninterrupted operation for battery swap.Achieve a balance of ergonomics and ruggedness. With a protective boot, it avoids wear and tear further. Easy to charge without taking off the hard boot.
  • Easy compatibility and seamless integration with both Honeywell-connected applications as well as third-party applications such as MDM, Push to Talk and VoIP software to maximize efficiency and protect your investment.CT40 XP
  • Enterprise Mobile ComputerThe CT40 XP is one stop productivity solution for store associates and mobile workers. The device seamlessly accomplishes daily workflows from inventory lookup and in-store merchandising to last mile delivery.Built on Honeywell’s Mobility Edge™ platform, the CT40 XP’s common software ecosystem strengthens its security, accelerates multiple deployment and extends its lifecycle.
Honeywell CT40P-L1N-28R11BF Mobile Computer Overview

The CT40 XP is a one stop solution for store associates and other mobile workers to seamlessly accomplish daily operations from inventory lookup and in-store merchandising to last mile delivery, logistics and more.

  • The Mobility Edge enterprise management tools allow companies to test and validate applications once, accelerate deployments across the enterprise, optimize device performance, simplify maintenance and extend product lifecycle
  • Built on the Mobility Edge platform, the CT40XP has received a prestigious STIG (Security Technical Implementation Guide) designation from the Defense Information Systems Agency (DISA) for its security capabilities. This recognition from DISA and the U.S. Department of Defense acknowledges the advanced security applications and tools the CT40XP encompasses, ensuring your data is kept safe and secure throughout the life of the device.
  • Snappy, accurate data capture from a few centimeters to up to 10 m (32.8 ft) with Honeywell's innovative FlexRange scan imager, a 13-megapixel, auto-focus camera and 8-megapixel front-facing camera.
  • Easily locate a lost device to prevent productivity loss even when the battery is drained thanks to a second BLE beacon. Includes warm swap for uninterrupted operation for battery swap.
  • Achieve a balance of ergonomics and ruggedness. With a protective boot, it avoids wear and tear further. Easy to charge without taking off the hard boot.
  • Easy compatibility and seamless integration with both Honeywell-connected applications as well as third-party applications such as MDM, Push to Talk and VoIP software to maximize efficiency and protect your investment.


Customers are moving seamlessly between online and offline experiences. The recent explosion in ecommerce makes it imperative to empower associates and highly mobile workers with mobile devices that allow them to deliver speed, accuracy and visibility for customers. Built on Honeywell's Mobility Edge™ platform, the CT40 XP is a smart versatile enterprise mobile solution with a rugged design that enhances productivity, offers longer lifecycle and better security.Integrated with Honeywell's latest FlexRange™ imager, the CT40 XP can capture barcodes from within a few centimeters to the retail top shelf up to 10 meters (32.8 feet). It has a smaller and lighter form factor with an 8-megapixel front facing camera. With a 1920 x 1080 pixel full high-definition display that can be utilized for group training, remote inspection and more.Missing or misplaced IT assets cause not only operational downtime, but can lead to security risk. Featuring "Device Finder" solution, the CT40 XP can easily locate lost or misplaced devices even when the batteries are drained after a certain period of time. That helps to protect your investment and provide operational efficiency.Business operation downtime as a result of device failure is now easily solved when using the CT40 XP. Its warm swap capability allows store associates to swap the battery without powering off the operating system. Combined with a rugged package and a protective boot that survive repeated 1.8-meter drops, the CT40 XP will deliver reliable, secure performance for years, maximizing return on investment.The CT40 XP incorporates a powerful Qualcomm® processor easily upgradable to Android™ 11 and complies with Android Enterprise Recommended (AER) requirements. It is compatible for upgrade to Android S (12) and T(13) through 2030.


Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
  • 1D
  • 2D
Scan Engine Model:
N6803
Image Sensor Type:
Imager
Scanner Range:
FlexRange
Scanning Distance:
32.81 ft
Google Mobile Services (GMS):
Yes
Sensor Type:
  • Light Sensor
  • Proximity
  • Accelerometer
  • Gyroscope
Features:
  • Water Resistant
  • Gorilla Glass 5
  • Push-to-talk
  • VoIP
Drop Specification:
  • Multiple 1.2 m (4 ft) drops to concrete at -10°C to +50°C (+14°F to +122°F).
  • Multiple drops from 1.8 m (6 ft) to concrete per MIL-STD-810G with rubber boot
Processor & Chipset
Processor Manufacturer:
Qualcomm
Processor Type:
Snapdragon
Processor Model:
660
Processor Core:
Octa-core (8 Core)
Processor Speed:
2.20 GHz
Memory
Standard Memory:
4 GB
Flash Memory:
32 GB
Memory Card Supported:
  • microSD
  • SDXC
  • SDHC
  • SDIO
Display & Graphics
Screen Size:
5"
Screen Mode:
HD
Screen Resolution:
1920 x 1080
Display Screen Type:
LED
Touchscreen Information
Touchscreen:
Yes
Multi-touch Screen:
Yes
Keyboard/Keypad
Buttons & Keys:

Volume up/down key, left/right scan, power button, push to talk button

Network & Communication
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11a/b/g/n/ac/r/k/mc
Bluetooth:
Yes
Bluetooth Standard:
Bluetooth 5.0
Near Field Communication (NFC):
Yes
Cellular Network Supported:
GSM
Cellular Data Connectivity Technology:
  • LTE Advanced
  • LTE
  • UMTS
  • HSPA+
  • 3G
  • 2G
  • GPRS
  • EDGE
  • EVDO
  • 4G
GPS:
Yes
Global Navigation Satellite System (GNSS) Supported:
BeiDou/Galileo/GLONASS
Interfaces/Ports
USB:
Yes
USB Type-C:
Yes
Camera
Front Camera:
Yes
Front Camera Resolution:
8 Megapixel
Rear Camera:
Yes
Rear Camera Resolution:
13 Megapixel
Software
Operating System:
Android 9.1 Pie
Upgradable Operating System:
Android 12
Power Description
Power Source:
Battery
Battery Information
Battery Capacity:
4020 mAh
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Included:
Yes
Battery Voltage:
3.85 V
Removable Battery:
Yes
Environmental Conditions
Operating Temperature:
-4°F (-20°C) to 122°F (50°C)
Storage Temperature:
-22°F (-30°C) to 158°F (70°C)
Humidity (Non-condensing):
5% to 95%
Physical Characteristics
Form Factor:
Phone-size
Rugged:
Yes
Weight (With Battery):
10.19 oz
Miscellaneous
Package Contents:
  • CT40 XP Handheld Computer
  • Battery
Application/Usage:
  • Retail
  • Logistics
Ingress Protection (IP) Rating:
  • IP67
  • IP65
Warranty
Limited Warranty:
1 Year
Additional Warranty Information:

One-year factory warranty

Item Numbers
UNSPSC: 43211715
