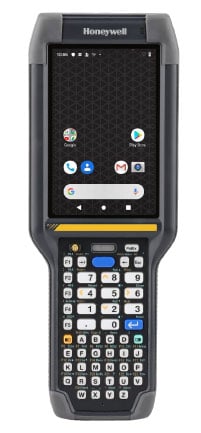

Honeywell CK65 – Mobile Computer – Android – 4 GB

• Future-proof investment protection with support for four Android generations, starting with Android 8 (O). Security updates are also available for up to two years after the last Google patch through Honeywell Sentinel.
• Large touchscreen with a 38- or 30-key numeric keypad with function keys or 51-key alphanumeric keypad supports both legacy key-centric and newer touch applications.
• Rugged construction withstands multiple 3 m (10 ft) drops to concrete across the temperature range and 2,000 1.0 m (3.3 ft) tumbles. IP65 and IP68 ratings against dust and water spray.
• Enhanced 1D/2D scanning/data capture for short, mid, or long range workflows, as well as direct part marking scan capabilities.
• Disinfectant-ready housings can be cleaned regularly with a wide variety of cleaning solutions without damaging your product.

In this environment of ever smaller orders and ever shrinking delivery timeframes, you need ways to improve your inventory accuracy and order cycle time. The CK65 is purpose-built to help with those objectives by maximizing worker productivity. The perfect blend of keypad and touchscreen, ergonomics and durability, the CK65 is light enough to be used all day yet durable enough to withstand the wear and tear of daily use. And with a 7,000 mAh extended smart battery, the CK65 is capable of up to 28 hours of continuous operation, so workers finding themselves with a dead battery in the middle of their shift will be a thing of the past. Built on the Mobility Edge™ platform, the CK65 minimizes TCO like no other product on the market by future-proofing your investment with support through Android™ R and beyond, and accelerated provisioning to minimize your time to value. And with its ultra-rugged design that can withstand 3 m (10 ft) drops to concrete as well as being rated to IP65 and IP68, the CK65 is durable in even the toughest DC environments. The CK65 even offers cold storage models for freezer environments and non-incendive (NI)/ATEX models for areas with hazardous gases. Honeywell’s legacy of imaging innovation continues on the CK65 with the newest FlexRange FR imager. The FlexRange FR has a dual-lens architecture that simultaneously captures near, and far range with no moving parts. It’s the ultimate combination of speed, range, and ruggedness. From picking to the pallet to the rack, the FlexRange FR imager is capable of handling the broadest range of workflows. And without moving parts, there’s no time spent re-focusing, so the FlexRange FR is always operating at lightning speed.

The Mobility Edge hardware platform and enterprise lifecycle tools

drive an integrated, repeatable, scalable approach for accelerated and secure development, deployment, performance management, and lifecycle management.

Application Migration:

For customers with existing CK3X, CK3R, CK75, CK71, CN75, CN75e, or CV41 devices, the CK65 is a drop-in replacement to enable optimized operations.

Keypads:

Supports legacy applications with a choice of 3 keypads: 51-key numeric, 38-key function numeric, and 51-key alphanumeric.

Processor:

2.2 GHz Qualcomm 64-bit Snapdragon octa-core.

Operating System:

Each Android version guaranteed from Android 9 Pie to at least 11/R, committed support for Android 12 and 13 pending feasibility.

Memory:

2 GB/4 GB DDR4 RAM, 32 GB Flash.

Display:

10.16 cm (4 in) 480 x 800 bright color LCD with backlight, outdoor readable, optically bonded Corning Gorilla Glass 5 touch panel.

Touch Panel:

Rugged multi-touch capacitive touch panel, optically bonded for extra durability and better sunlight viewability. Automatic detection and configuration utilizing mutual and self-capacitance modes for water rejection and use with many off-the-shelf gloves.

Keypad:

51-key alpha or 38- or 30-key numeric keypad, plus two programmable side buttons.

Audio:

Speaker, microphone support with noise cancellation. PTT support and Bluetooth wireless headset support.

I/O Ports:

Durable, custom I/O connector compatible with CK3 accessories.

Camera:

13.0-megapixel color camera with autofocus and advanced software features for better image quality, f/2.0 aperture, flash LED with flashlight mode.

Sensors:

Ambient light sensor, accelerometer, gyroscope, hall effect.

Storage Expansion:

User-accessible microSD card up to 512 GB (SDXC/SDHC/ SDIO-compliant)

Battery:

Li-Ion, 7,000 mAh Smart Battery

Hours of Operation:

28 hours

Scanning Capabilities:

Honeywell N6703 Slim Imager Engine (1D/2D); 6803FR FlexRange Slim Imager (1D/2D); Honeywell EX20 Near/Far Imager (1D/2D); Honeywell Scanning SDKs for Android

WLAN:

IEEE 802.11 a/b/g/n/ac; Wi-Fi certified 2x2 MIMO support

Additional WLAN Features:

802.11 d/e/h/i/k/r/w

WLAN Security:

OPEN, WEP, WPA/WPA2 (Personal and Enterprise)

Supported EAP:

TLS, PEAP, TTLS, PWD, LEAP CCX Version 4 certified

Bluetooth:

V5.0 with BLE and Backward Compatibility

Bluetooth Profiles:

HFP, PBAP, A2DP, AVRCP, OPP, SPP, GATT

NFC:

Integrated Near Field Communication

VoIP:

Supported

VPN:

IPSec V4/L2TP, PPTP

FIPS 140-2 Level 1 Validated

Data at Rest

Data in Motion

Operating Tem–perature:

Standard Temp Unit: -20°C to 50°C (-4°F to 122°F) Cold Storage Unit: -30°C to 50°C (-22°F to 122°F)

Storage Temperature:

-30°C to 70°C (-22°F to 158°F)

Humidity:

0 to 95% relative humidity (non-condensing)

Drop:

3 m (10 ft) to concrete at room temperature, 2.4 m (8 ft) across operating range per MIL-STD 810G

Tumble:

2,000 1.0 m (3.3 ft) tumbles per IEC 60068-2-32 specification

ESD:

±15 kV Air and ±8 kV Direct

Environmental Sealing:

Independently certified to meet IP65 and IP68 standards for moisture and particle intrusion

The CK65 mobile computer boosts supply chain productivity by accelerating and error-proofing work in distribution centers and manufacturing. With the longest supported lifecycle available, up to 28-hour* battery life, and best-in-class ruggedness, the CK65 maximizes productive uptime, while providing an easy path for users migrating from legacy Windows operating systems to the Android platform.

• The Mobility Edge™ hardware platform and enterprise lifecycle tools drive an integrated, repeatable, scalable approach for accelerated and secure development, deployment, performance management, and lifecycle management.
• Built on the Mobility Edge platform, the CK65 has received a prestigious STIG (Security Technical Implementation Guide) designation from the Defense Information Systems Agency (DISA) for its security capabilities. This recognition from DISA and the U.S. Department of Defense acknowledges the advanced security applications and tools the CK65 encompasses, ensuring your data is kept safe and secure throughout the life of the device.
• The CK65 features our latest in imaging technology with the FlexRange XLR. This device easily scans up close and at a distance, with lightning fast autofocus. It's capable of scanning up to 80 ft. for demanding warehouse jobs. All of this packaged in a compact and lightweight design for improved user ergonomics.
• The CK65 device provides future-proof investment protection with support for four Android generations, starting with Android 8 (O). Security updates are also available for up to two years after the last Google patch through Honeywell Sentinel.
• The large touchscreen with 51 or 53-key alpha numeric, 38 or 42-key numeric function, or 30-key large numeric keypads supports both legacy key-centric and newer touch applications. Keypads allow input in extreme environments and optimize efficiency in all environments.
• Rugged construction withstands multiple 3 m (10 ft) drops to concrete across the temperature range and 3,000 1.0 m (3.3 ft) tumbles. IP65 and IP68 ratings against dust and water spray.
• Enhanced 1D/2D scanning/data capture for short, mid, or long range workflows, as well as direct part marking scan capabilities.

The industry's most advanced ultra-rugged mobile computer that's ready for the toughest DC environments and the broadest range of workflows, the CK65 is designed to maximize worker productivity and minimize TCO.

In this environment of ever smaller orders and ever shrinking delivery timeframes, you need ways to improve your inventory accuracy and order cycle time. The CK65 is purpose-built to help with those objectives by maximizing worker productivity. The perfect blend of keypad and touchscreen, ergonomics and durability, the CK65 is light enough to be used all day yet durable enough to withstand the wear and tear of daily use. And with a 7,000 mAh extended smart battery, the CK65 is capable of up to 28 hours of continuous operation, so workers finding themselves with a dead battery in the middle of their shift will be a thing of the past.

Built on the Mobility Edge platform, the CK65 minimizes TCO like no other product on the market by future-proofing your investment with support through Android S and beyond, and accelerated provisioning to minimize your time to value. And with its ultra-rugged design that can withstand 3 m (10 ft) drops to concrete as well as being rated to IP65 and IP68, the CK65 is durable in even the toughest DC environments. The CK65 even offers cold storage models for freezer environments and non-incendive (NI)/ATEX models for areas with hazardous gases.
