Honeywell H-4310 – Barcode Label Printer – 300 dpi – Thermal Transfer – Cutter, Real-Time Clock

Part Number: C43-00-48040JS7
Model: H-4310
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
SDIO, Ethernet, Parallel, USB, USB Host, Wi-Fi, Serial
Print Resolution
300 dpi

Product Description:

  Industrial Printer, Datamax-O-Neil H-4310, Thermal Transfer, 300 dpi, 10ips, Cutter, Ethernet/Parallel/SDIO Slot/USB Host/USB/Wireless, SDIO
Explore all Honeywell H-4310 Barcode Label Printers
Add to Quote
Honeywell C43-00-48040JS7 Barcode Label Printer
Honeywell C43-00-48040JS7 Barcode Label Printer
Honeywell C43-00-48040JS7 Barcode Label Printer
Honeywell C43-00-48040JS7 Barcode Label Printer
Honeywell C43-00-48040JS7 Barcode Label Printer Honeywell C43-00-48040JS7 Barcode Label Printer Honeywell C43-00-48040JS7 Barcode Label Printer Honeywell C43-00-48040JS7 Barcode Label Printer
Full specifications (PDF)

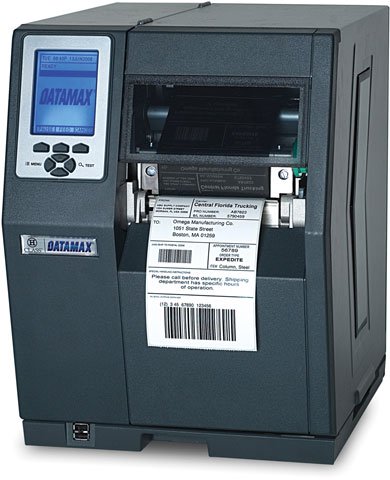

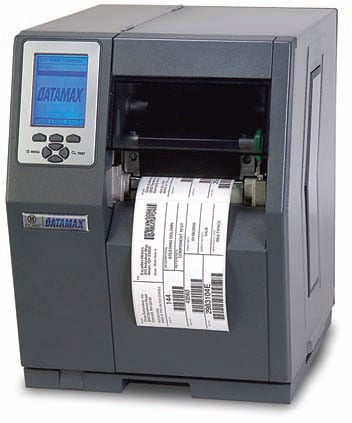

Honeywell H-4310 Barcode Label Printer Model Overview

The Datamax-O'Neil H-Class: H-4310 Industrial Printer features a 4 inch print width, a 300 dpi print resolution, a 10" per second print speed, a large graphic display provide optimum viewing and control of all printer functions, and a high-speed 32 bit/200MHz multi-tasking processor that decreases processing times to increase data throughput. The H-4310 has both standard 16MB DRAM and 8MB FLASH memory, assuring the space needed for seamless processing of the most demanding applications. The Datamax-O'Neil H-Class: H-4310 Industrial Printer provides Standard Ethernet, USB, Parallel and Serial interfaces ensure easy host connectivity across multiple platforms,Standard SDIO and USB Host device ports provide support for additional memory and application versatility.
Honeywell C43-00-48040JS7 Barcode Label Printer Overview

The Datamax H-4310 thermal barcode printer is the most advanced and feature rich printer solution designed for today's dynamic enterprise applications. H-4310 printers provide throughput that is up to twice as fast as other printers in its class and its gear driven design provides rugged and reliable performance for 24x7 mission critical service. Modular construction increases up time for the highest levels of user productivity and helps provide the lowest cost of ownership. H-4310 printers offer the industry's largest graphical display that provides an easy to read view for quick navigation and printer notifications.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
10 in/s
Maximum Print Resolution (dpi):
300
Maximum Print Width:
4.16"
Barcode Symbology Supported:
  • Code 39
  • UPC-A
  • UPC-E
  • Interleaved 2 of 5
  • Code 128
  • EAN-13
  • EAN-8
  • HIBC
  • Codabar
  • Plessey
  • Code 93
  • POSTNET
  • UCC/EAN 128
  • Telepen
  • UPS Maxi Code
  • FIM
  • PDF-417
  • USD-8
  • Data Matrix
  • QR Code
  • TLC 39
  • Micro PDF-417
  • RSS
Real Time Clock:
Yes
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
8 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
Wireless LAN:
Yes
Cutter
Cutter:
Yes
Media Types & Handling
Media Type:
  • Roll Fed
  • Fanfold
  • Die-cut Label
  • Continuous Label
  • Perforated Paper
  • Continuous Tag
  • Ticket Stock
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Media Thickness:
10 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
4.65"
Label Core Size:
3"
Ribbon Core Size:
1"
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
13"
Width:
12.6"
Depth:
18.9"
Miscellaneous
Package Contents:
  • H-4310 Network Thermal Label Printer
  • Datamax Accessories CD
Additional Information:
  • Scanner
  • Reduced total cost of ownership
  • Metal construction, clear side window to easily monitor media supply levels
  • Graphics supported: .PCX, .BMP, .IMG, and Datamax ASCII Format files
  • Any font or graphic field can be printed as a normal or reverse image
  • Two USB Host Ports for connection of USB peripherals
  • Revolving media hub: Standard 3"
Platform Supported:
PC
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
2 Year
Item Numbers
UNSPSC: 43212108
