Honeywell H-4212X – Barcode Label Printer – 203 dpi – Thermal Transfer – Real-Time Clock, Rewinder

Part Number: C32-U8-48401004
Model: H-4212X

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Ethernet, Parallel, Serial (RS-232), USB, Serial
Print Resolution
203 dpi

Product Description:

  Industrial Printer, Datamax-O-Neil H-4212X, Thermal Transfer, 203 dpi, 12ips, Rewinder, Ethernet/Parallel/Serial/USB, 8MB Flash

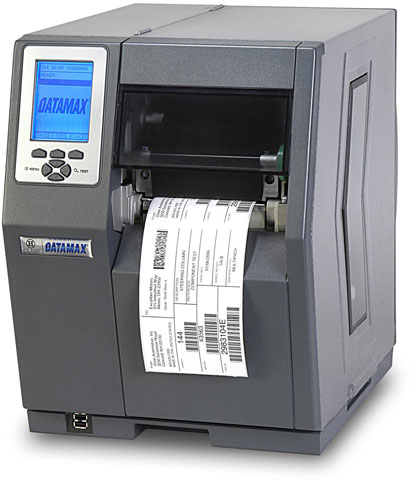

Honeywell H-4212X Barcode Label Printer Model Overview

The Datamax-O-Neil H-4212X takes printing into the next era of comprehensive thermal and RFID label printing. The new Datamax-O-Neil H-4212X heavy-duty printer provides a state of the art modular design offering the most flexible and accurate print quality in the industry today. The H-4212X makes available the most advanced diagnostics using a sophisticated approach in maximizing the life of the print head while clearly reducing total cost of ownership. In keeping with Datamax-O-Neil high standards, the new H-4212X incorporates a patented precision crafted design that is unmatched. This heavy-duty die cast aluminum frame assures reliable performance with high quality results. The H-4212X printers are designed for the most rugged environments supporting applications in such places as manufacturing, shipping and warehousing, but sophisticated enough to support high-resolution graphics and text on small labels.
Honeywell C32-U8-48401004 Barcode Label Printer Overview

The H-Class is a rugged and versatile printer that offers one of the most feature rich solutions for dynamic enterprise applications and is twice as fast as other printers in its class. The H-Class is ideal for high volume label printing in manufacturing, warehouse, transportation, and high resolution labeling. H-Class reduces the total cost of ownership with its gear driven design to provide rugged and reliable performance for 24X7 mission critical services.

Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
12 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Code 3 of 9
  • UPC-A
  • UPC-E
  • EAN-8
  • EAN-13
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • Standard 2 of 5
  • Code 11
  • Code 93
  • Code 128
  • HIBC
  • Plessey
  • Codabar
  • UPC 2 and 5 Digit Addendums
  • POSTNET
  • UCC/EAN 128
  • Telepen
  • Planet Code
  • FIM
  • USPS-4 State
  • Maxi Code
  • PDF-417
  • USD-8
  • Data Matrix
  • QR Code
  • Codablock
  • Code 16K
  • Aztec Code
  • Macro PDF-417
  • TLC 39
  • GS1 DataBar
Real Time Clock:
Yes
Rewinder:
Yes
Application/Usage:
Desktop
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
8 MB
Memory Card Slot:
Yes
Memory Card Supported:
SD
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Fanfold
  • Roll Fed
  • Continuous Label
  • Die-cut Label
  • Perforated Label
  • Tag
  • Ticket Stock
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness:
10 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
4.65"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
  • PLB
  • PLI
  • PLZ
Power Description
Power Source:
AC Supply
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
16.4"
Width:
12.6"
Depth:
19.3"
Weight (Approximate):
47 lb
Miscellaneous
Platform Supported:
PC
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
