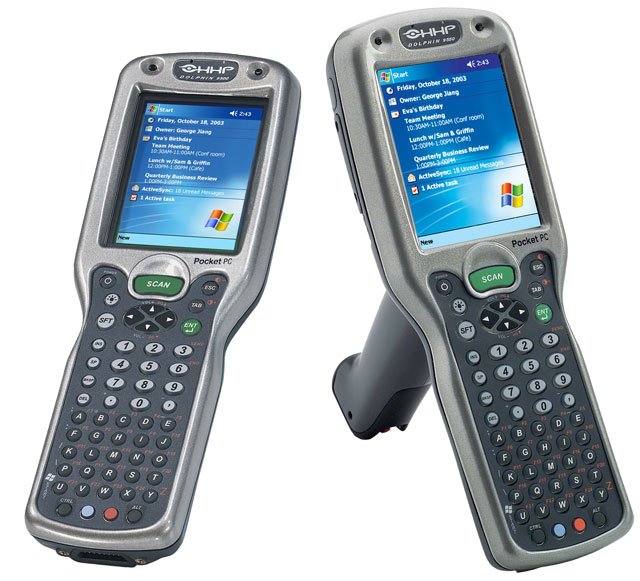

Honeywell 9550L00-431-C30 Mobile Handheld Computer

Honeywell Dolphin 9550 - 64MB RAM, 802.11b WLAN Radio, No WWAN Radio, No WPAN Radio, IT5300 Standard range imager, 56 key full alphanumeric keypad, 32MB Flash, Resistive-Touch touchpanel, Pocket PC 2003 2nd Edition, Battery
The Dolphin 9500 & 9550 series mobile computers deliver unparalleled performance and value for all mobile data collection applications.

The Dolphin 9500 & 9550 series mobile computers deliver unparalleled performance and value for all mobile data collection applications. Their lightweight, ergonomic, and rugged designs provide the ease of use and operational reliability needed to excel in robust mobile applications such as package delivery, field service, route accounting, transportation, warehousing, retail, and industrial/manufacturing.

Technical Information

  • Scanner Range: Standard Range
  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD): 15 kV DC All Surface Discharge
  • Drop Specification: 60" To Concrete
  • Barcode Symbology Supported:
    • Australian Post
    • Aztec
    • Aztec Mesa
    • British Post
    • Canadian Post
    • China Postal Code
    • Codabar
    • Codablock F
    • Code 11
    • Code 128
    • Code 16K
    • Code 3 of 9
    • Code 32 Pharmaceutical
    • Code 93
    • Composite
    • DataMatrix
    • EAN Add-ons
    • EAN with Extended Coupon Code
    • EAN-13
    • UCC/EAN
    • Interleaved 2 of 5
    • Japanese Post
    • KIX(Netherlands) Post
    • Korea Post
    • Matrix 2 of 5
    • MaxiCode
    • OCR
    • OCR-A
    • OCR-B
    • PDF 417
    • Planet Code
    • Plessey
    • PosiCode
    • Postnet
    • QR Code
    • RSS-14
    • RSS
    • Straight 2 of 5 Industrial
    • Straight 2 of 5 IATA
    • Telepen
    • Trioptic Code
    • UCC/EAN 128

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Honeywell
  • Manufacturer: Honeywell International, Inc
  • Product Model: 9550
  • Product Name: Dolphin 9550 Mobile Computer
  • Product Line: Dolphin

Physical Characteristics

  • Width: 3.5"
  • Depth: 2.3"
  • Length: 9.6"
  • Weight (Approximate): 1.49 lb

Other

  • Package Contents:
    • Dolphin 9550 Mobile Computer
    • Battery
    • Dolphin 9550 Mobile Computer
    • Battery
  • Certifications & Standards:
    • FCC
    • CE
    • Radio Country:
    • US/Canada
    • R&TTE

Network & Communication

  • Wireless LAN: Yes
  • Wireless LAN Standard: IEEE 802.11b
  • Wireless Security:
    • WEP 128 bit
    • LEAP
    • MD5
    • TLS
    • TTLS
    • PEAP
    • WEP

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 400 MHz
  • Processor Type: XScale

Display & Graphics

  • Screen Mode: QVGA
  • Display Color: Color
  • Screen Resolution: 240 x 320

Memory

  • Flash Memory: 32 MB
  • Standard Memory: 64 MB

Keyboard/Keypad

  • Keyboard Type: Alphanumeric
  • Number of Keys: 56

Battery Information

  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Touchscreen Information

  • Touchscreen: Yes

Warranty

  • Limited Warranty: 2 Year

Software

  • Operating System: Windows Mobile 2003 Second Edition

Full specifications (PDF)

Full specifications (PDF)

Brand Honeywell
Model Dolphin 9500 & 9550
RAM Memory 64 MB
Operating System Windows Mobile, Windows Mobile 2003 SE for Pocket PC
Style Gun
Display Resolution 240 x 320
Scanner Type Imager
Data Collection Type Wireless
