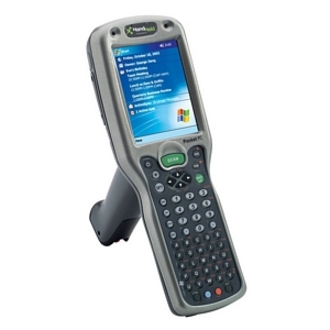

Honeywell 9550L00-131-C30 Mobile Handheld Computer

Honeywell Dolphin 9550 - 64MB RAM, 802.11b communications, 56 keys, color display. Includes pistol grip, standard range imager, & Pocket PC OS. Order cradle, cables & battery separately. See accessories. (Formerly listed as 9550L00-131-C10 and 9550L00-131-C20)

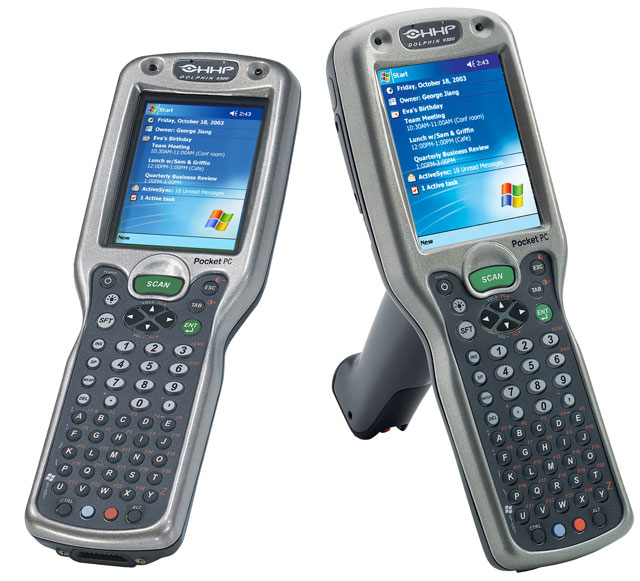

The Dolphin 9500 & 9550 series mobile computers deliver unparalleled performance and value for all mobile data collection applications.

The Dolphin 9500 & 9550 series mobile computers deliver unparalleled performance and value for all mobile data collection applications. Their lightweight, ergonomic, and rugged designs provide the ease of use and operational reliability needed to excel in robust mobile applications such as package delivery, field service, route accounting, transportation, warehousing, retail, and industrial/manufacturing.

Technical Information

  • Operating System: Windows Mobile 2003 2nd Edition
  • Processor: Intel PXA255 XScale 400MHz
  • Data Collection Type: Wireless
  • Wireless Security:
    • WEP 128 bit
    • LEAP
    • MD5
    • TLS
    • TTLS
    • PEAP
    • WEP
  • Scanner Type: Imager Standard Range - 5100 with Green Aimer
  • Symbologies Supported:
    • Australian Post
    • Aztec
    • British Post
    • Canadian Post
    • China Post
    • Codabar
    • Codablock F
    • Code 11
    • Code 128
    • Code 16K
    • Code 3 of 9
    • Code 32 Pharmaceutical
    • Code 93
    • Composite Code
    • DataMatrix
    • EAN Add-ons
    • EAN with Extended Coupon Code
    • UCC/EAN
    • EAN-13
    • Interleaved 2 of 5
    • Japanese Post
    • KIX(Netherlands) Post
    • Korea Post
    • Matrix 2 of 5
    • MaxiCode
    • OCR
    • OCR-A
    • OCR-B
    • PDF 417
    • Planet Code
    • Plessey Code
    • PosiCode
    • Postnet
    • QR Code
    • RSS
    • RSS-14
    • Straight 2 of 5 IATA
    • Straight 2 of 5 Industrial
    • Telepen
    • Trioptic
    • UCC/EAN 128
    • UPC
    • Aztec Mesa
    • UPC-A
    • China Postal Code

General Information

  • Manufacturer: Hand Held Products
  • Product Line: Dolphin
  • Product Name: Dolphin 9550 Mobile Computer

Physical Characteristics

  • Display: Color QVGA - Touch Screen TFT LCD
  • Display Resolution: 240 x 320 Portrait Mode
  • User Accessible Expansion Slot: SD Card Slot
  • Keyboard: 56 Key Full Alphanumeric Integrated
  • Battery Capacity: 14.8 Wh
  • Battery Type: Lithium Ion - Included
  • Dimensions: 3.45" (88mm) x 9.6" (244mm) x 2.27" (58mm)
  • Weight: 23.9 oz

Environmental Conditions

  • Environmental Sealing: IP64
  • Temperature:
    • -10°C (14°F) to 50°C (122°F) Operating
    • -20°C (-4°F) to 70°C (158°F) Storage
  • Humidity: 95% Non-condensing
  • Electrostatic Discharge (ESD): 15kV All Surfaces Discharge
  • Drop Spec: 5' To Concrete Multiple

Wireless Data Communications

  • Network Connectivity: WLAN 802.11b FCC Regulatory Domain
  • Maximum RF Data Rate Supported: 11 Mbps
  • Frequency Band/Bandwidth: 2.4GHz

Warranty

  • Manufacturer Warranty: 2 Year(s) Limited
  • Warranty Details: 1 Year Warranty On Touch Screen

Memory

  • RAM Memory: 64MB
  • Flash Memory: 32MB

Other

  • Additional Information: Communication Ports: USB RS-232 IrDA
  • Package Contents: Dolphin 9550 Mobile Computer Battery Pack Stylus

Agency Approvals

  • Agency Approvals: FCC CE Radio Country: US/Canada R&TTE

Full specifications (PDF)

Full specifications (PDF)

Brand Honeywell
Model Dolphin 9500 & 9550
Operating System Windows Mobile 2003 SE for Pocket PC, Windows Mobile
Display Resolution 240 x 320
RAM Memory 64 MB
Style Gun
Scanner Type Imager
Data Collection Type Batch

Recommended Accessories for Model: Honeywell Dolphin 9500 & 9550 Mobile Handheld Computer
Global Technology Systems Handheld Replacement Battery (HHP9500-LI)
The HHP9500-Li is a replacement battery that is used in the HHP Dolphin 7900/9500/9550/9900 and the LXE MX6 mobile computers. 2400 mAh, Lithium-ion, 7.4 voltage, 12 Month Warranty. OEM Part Number: 20000591-01
In Stock: Ships Same Day
$61.90
+ Add to Quote
Honeywell Power cord (77900506E)
Cable: power cord, power supply to AC outlet, straight, 1.8m (6.0 ft.) - US. Non-Cancelable/Non-Returnable.
In Stock: Ships Same Day
$15.70
+ Add to Quote
Honeywell Cable (80000355E)
6 ft. (1.8m) USB Cable
In Stock: Ships Same Day
$40.90
+ Add to Quote
Honeywell (PC000873-01E)
Dolphin 9500 stylus kit with tethers - 3 pack. Non-Cancelable/Non-Returnable.
$39.00
+ Add to Quote
Honeywell (PC000773E)
Dolphin 9500/9550 Series MobileBase universal mounting bracket, clamp style.
$41.60
+ Add to Quote
Protect Your Product
Honeywell Service Contract - 5 year (HSVC9900ACC-SMS5)
9900/9500 HomeBase/ChargeBase/NetBase, Service Made Simple 3-day turnaround, comprehensive
$145.00
+ Add to Quote
Honeywell Service Contract - 3 year (HSVC9900ACC-SMS3)
9900/9500 HomeBase/ChargeBase/NetBase, Service Made Simple 3-day turnaround, comprehensive
$86.00
+ Add to Quote
Honeywell Service Contract - 1 year (HSVC9500ACC-W)
95XX HomeBase/ChargeBase/NetBase Extended Warranty
$31.00
+ Add to Quote
Honeywell Service Contract - 1 year (E-HSVC9500ACC-W)
95XX HomeBase/ChargeBase/NetBase Extended Warranty Post Sale
$46.00
+ Add to Quote
Honeywell Service Contract - 1 Year (E-HSVC9500ACC-SMS1)
9500 Accessories Comprehesive Coverage Renewal
$47.80
+ Add to Quote

The Honeywell 9550L00-131-C30 is also known as HHP-9550L00131C30 or 9550L00131C30 .
