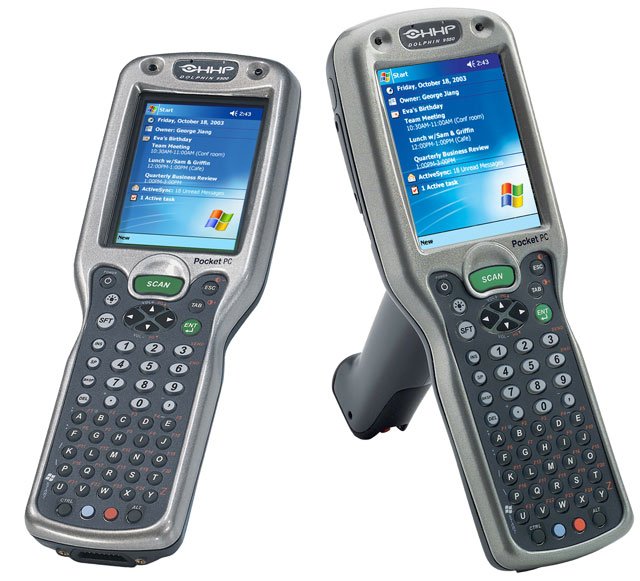

Honeywell 9500L0P-422C30E Mobile Handheld Computer

Honeywell Dolphin 9500 - WLAN and WPAN (802.11b and Bluetooth) / 5300SR Imager with high-vis aiming pattern / 35 key / 64MB RAM x 64MB FLASH / Windows Mobile 2003 SE
The Dolphin 9500 & 9550 series mobile computers deliver unparalleled performance and value for all mobile data collection applications.

The Dolphin 9500 & 9550 series mobile computers deliver unparalleled performance and value for all mobile data collection applications. Their lightweight, ergonomic, and rugged designs provide the ease of use and operational reliability needed to excel in robust mobile applications such as package delivery, field service, route accounting, transportation, warehousing, retail, and industrial/manufacturing.

Technical Information

  • Scanner Range: Standard Range
  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD): 15 kV DC All Surface Discharge
  • Drop Specification: 60" To Concrete
  • Barcode Symbology Supported:
    • Codabar
    • Code 3 of 9
    • Code 11
    • Code 32 Pharmaceutical (PARAF)
    • Code 93
    • Code 128
    • EAN with Add-On and EAN with Extended
    • Coupon Code
    • EAN-13
    • Interleaved 2 or 5
    • Matrix 2 of 5
    • Plessey
    • PosiCode
    • RSS
    • Straight 2 of 5 IATA
    • Straight 2 of 5 Industrial
    • Telepen
    • Trioptic Code
    • UCC/EAN-128
    • UPC and UPC-A
    • Aztec
    • Code 16K
    • Composite
    • Data Matrix
    • MaxiCode
    • OCR
    • PDF417
    • QR Code
    • RSS
    • Aztec Mesa
    • Codablock F
    • EAN·UCC
    • RSS-14
    • OCR-A
    • OCR-B
    • Postnet
    • Australian
    • British
    • Canadian
    • China
    • Japanese
    • KIX (Netherlands)
    • and Korea Post
    • Planet Code

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Honeywell
  • Manufacturer: Honeywell International, Inc
  • Product Model: 9500
  • Product Name: Dolphin 9500 Mobile Computer
  • Product Line: Dolphin

Physical Characteristics

  • Width: 3.5"
  • Depth: 1.7"
  • Length: 9.6"
  • Weight (Approximate): 1.23 lb

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • Dolphin 9500 Mobile Computer
    • Battery
    • Stylus
    • Dolphin 9500 Mobile Computer
    • Battery
    • Stylus
  • Certifications & Standards:
    • Environmental Resistance: IP64
    • FCC
    • CE
    • Radio Country:
    • US/Canada
    • R&TTE
  • Additional Information: Imager with high-vis aiming pattern

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Wireless LAN Standard: IEEE 802.11b
  • Wireless Security:
    • LEAP
    • MD5
    • TLS
    • TTLS
    • PEAP
    • WEP

Memory

  • Flash Memory: 64 MB
  • Standard Memory: 64 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: Secure Digital (SD) Card

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: QVGA
  • Display Color: Color
  • Screen Resolution: 240 x 320

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 400 MHz
  • Processor Type: XScale

Keyboard/Keypad

  • Keyboard Type: Alphanumeric
  • Number of Keys: 35

Battery Information

  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Software

  • Operating System: Windows Mobile 2003 Second Edition

Warranty

  • Limited Warranty: 2 Year

Touchscreen Information

  • Touchscreen: Yes

Full specifications (PDF)

Full specifications (PDF)

Brand Honeywell
Model Dolphin 9500 & 9550
Style Full-size
Operating System Windows Mobile 2003, Windows Mobile
Display Resolution 240 x 320
RAM Memory 64 MB
Scanner Type Imager
Data Collection Type Wireless
