Honeywell 9500L0P-131-C30 Mobile Computer


0.0

(No reviews)

Be the first to

Write a Review

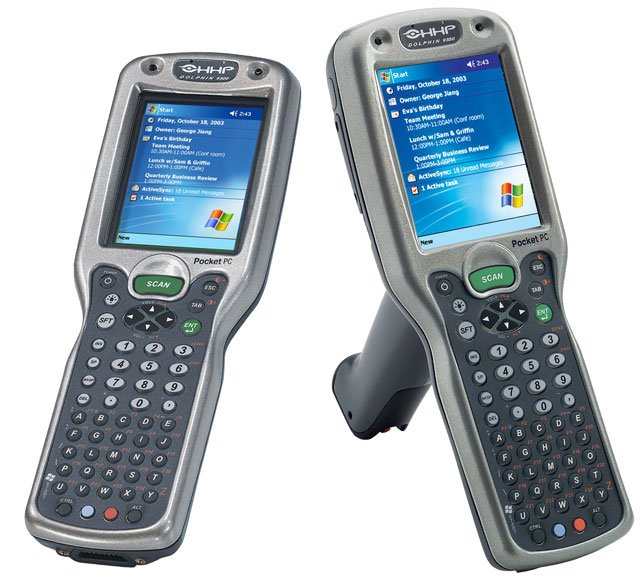

Honeywell Dolphin 9500 - 64MB RAM, 802.11b WLAN Radio, No WWAN Radio, Bluetooth WPAN Radio, 56 key full alphanumeric keypad, IT4000 Standard range imager with green aimer-full imaging, 32MB Flash, Resistive-Touch touchpanel, Pocket PC 2003 2nd Edition, Battery
The Dolphin 9500 & 9550 series mobile computers deliver unparalleled performance and value for all mobile data collection applications.

The Dolphin 9500 & 9550 series mobile computers deliver unparalleled performance and value for all mobile data collection applications. Their lightweight, ergonomic, and rugged designs provide the ease of use and operational reliability needed to excel in robust mobile applications such as package delivery, field service, route accounting, transportation, warehousing, retail, and industrial/manufacturing.

Technical Information

  • Operating System: Windows Mobile 2003 2nd Edition
  • Processor: Intel PXA255 XScale 400MHz
  • Data Collection Type: Wireless
  • Wireless Security:
    • LEAP
    • MD5
    • PEAP
    • TLS
    • TTLS
    • WEP
    • WEP 128 bit
  • Scanner Type: Imager Standard Range - 5100 with Green Aimer
  • Symbologies Supported:
    • Aztec
    • Aztec Mesa
    • Codabar
    • Codablock F
    • Code 3 of 9
    • Code 11
    • Code 16K
    • Code 32 Pharmaceutical
    • Code 93
    • Code 128
    • Composite
    • DataMatrix
    • EAN Add-ons
    • EAN with Extended Coupon Code
    • EAN-13
    • Interleaved 2 of 5
    • Matrix 2 of 5
    • MaxiCode
    • OCR
    • OCR-A
    • OCR-B
    • PDF 417
    • Plessey
    • PosiCode
    • QR Code
    • RSS
    • RSS-14
    • Straight 2 of 5 IATA
    • Straight 2 of 5 Industrial
    • Telepen
    • Trioptic Code
    • UCC/EAN
    • UCC/EAN 128
    • UPC
    • UPC-A
    • Postnet
    • Australian Post
    • British Post
    • Canadian Post
    • China Post
    • Japanese Post
    • KIX(Netherlands) Post
    • Korea Post
    • Planet Code
    • China Postal Code

General Information

  • Manufacturer: Hand Held Products
  • Product Line: Dolphin
  • Product Name: Dolphin 9500 Mobile Computer

Physical Characteristics

  • Display: Color QVGA - Touch Screen TFT LCD
  • Display Resolution: 240 x 320
  • User Accessible Expansion Slot: SD Card Slot
  • Keyboard: 56 Key Full Alphanumeric Integrated
  • Battery Capacity: 14.8 Wh
  • Battery Type: Lithium Ion - Included
  • Dimensions: 3.45" (88mm) x 9.6" (244mm) x 1.66" (42mm)
  • Weight: 20.3 oz

Environmental Conditions

  • Environmental Sealing: IP64
  • Temperature:
    • -10°C (14°F) to 50°C (122°F) Operating
    • -20°C (-4°F) to 70°C (158°F) Storage
  • Humidity: 95% Non-condensing
  • Electrostatic Discharge (ESD): 15kV All Surfaces Discharge
  • Drop Spec: 5' To Concrete Multiple

Wireless Data Communications

  • Network Connectivity:
    • WLAN 802.11b FCC Regulatory Domain
    • WPAN Bluetooth
  • Maximum RF Data Rate Supported: 11 Mbps
  • Frequency Band/Bandwidth: 2.4GHz

Warranty

  • Manufacturer Warranty: 2 Year(s) Limited
  • Warranty Details: 1 year on Touch Screen

Memory

  • RAM Memory: 64MB
  • Flash Memory: 32MB

Other

  • Additional Information: Communication Ports: USB RS-232 IrDA
  • Package Contents: Dolphin 9500 Mobile Computer Battery Pack Stylus

Agency Approvals

  • Agency Approvals: FCC CE Radio Country: US/Canada R&TTE

Full specifications (PDF)

Full specifications (PDF)

Brand Honeywell
Model Dolphin 9500 & 9550
Display Resolution 240 x 320
Style Full-size
RAM Memory 64 MB
Operating System Windows Mobile, Windows Mobile 2003 SE for Pocket PC
Scanner Type Imager
Data Collection Type Batch
