Honeywell Dolphin 9500 – Mobile Computer – Windows Mobile, Windows Mobile 2003 Second Edition – 64 MB

Part Number: 9500L00-131-C22
Model: Dolphin 9500 & 9550
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

RAM Memory
64 MB
Operating System
Windows Mobile, Windows Mobile 2003 Second Edition

Product Description:

  64MB RAM, 802.11b Radio, No WWAN Radio, No WPAN Radio, IT4000 Standard range imager with green aimer-full imaging, 56-key full alphanumeric keypad, 32MB Flash, Resistive-Touch touchpanel, PocketPC 2003 Professional, TN5250 direct connect client terminal emulation, Battery
Explore all Honeywell Dolphin 9500 & 9550 Mobile Computers
Add to Quote

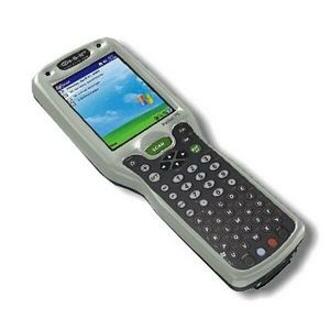

Honeywell 9500L00-131-C22 Mobile Computer
Honeywell 9500L00-131-C22 Mobile Computer
Honeywell 9500L00-131-C22 Mobile Computer Honeywell 9500L00-131-C22 Mobile Computer
Full specifications (PDF)

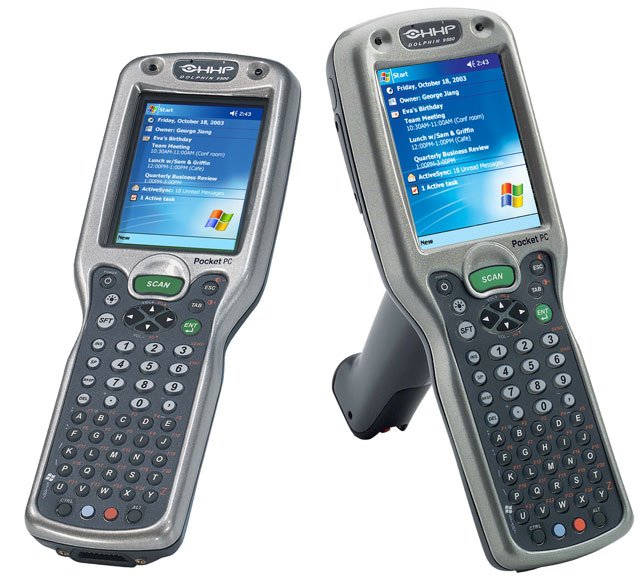

Honeywell Dolphin 9500 & 9550 Mobile Computer Model Overview

The Dolphin 9500 & 9550 series mobile computers deliver unparalleled performance and value for all mobile data collection applications. Their lightweight, ergonomic, and rugged designs provide the ease of use and operational reliability needed to excel in robust mobile applications such as package delivery, field service, route accounting, transportation, warehousing, retail, and industrial/manufacturing.
Honeywell 9500L00-131-C22 Mobile Computer Overview

The Dolphin 9500 mobile computer delivers unparalleled performance and value for all mobile data collection and communication applications. Its lightweight, ergonomic, and rugged design provides ease of use and operational reliability in robust mobile applications such as transportation, parcel delivery, retail, field service, route accounting, warehousing, and industrial/manufacturing.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Wireless
Image Sensor Type:
Imager
Scanner Range:
Standard Range
Barcode Symbology Supported:
  • Australian Post
  • Aztec
  • British Post
  • Canadian Post
  • China Postal Code
  • Codabar
  • Codablock F
  • Code 11
  • Code 128
  • Code 16K
  • Code 3 of 9
  • PARAF
  • Code 93
  • Composite Code
  • DataMatrix
  • EAN Add-ons
  • EAN with Extended Coupon Code
  • UCC/EAN
  • EAN-13
  • Interleaved 2 of 5
  • Japanese Post
  • KIX(Netherlands) Post
  • Korea Post
  • Matrix 2 of 5
  • MaxiCode
  • OCR
  • OCR-A
  • OCR-B
  • PDF 417
  • Planet Code
  • Plessey Code
  • PosiCode
  • Postnet
  • QR Code
  • RSS
  • RSS-14
  • Straight 2 of 5 IATA
  • Straight 2 of 5 Industrial
  • Telepen
  • Trioptic
  • UCC/EAN 128
  • UPC
  • UPC-A
Drop Specification (To Concrete):
60"
Contact Electrostatic Discharge (+/-):
15kV DC
Processor & Chipset
Processor Manufacturer:
Intel
Processor Type:
XScale
Processor Speed:
400 MHz
Memory
Standard Memory:
64 MB
Flash Memory:
32 MB
Memory Card Slot:
Yes
Memory Card Supported:
SD
Display & Graphics
Screen Mode:
QVGA
Screen Resolution:
240 x 320
Display Color:
Color
Display Screen Type:
LCD
Touchscreen Information
Touchscreen:
Yes
Keyboard/Keypad
Number of Keys:
56
Keyboard Type:
Alphanumeric
Network & Communication
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11b
Antenna Form Factor:
Internal
Wireless Security:
  • WEP 128 bit
  • PEAP
  • EAP/TLS
  • AEGIS Client
  • LEAP
  • MD5
  • TLS
  • TTLS
Software
Operating System:
Windows 2003 Professional
Battery Information
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Included:
Yes
Physical Characteristics
Width:
3.5"
Depth:
1.7"
Length:
9.6"
Weight (Approximate):
1.26 lb
Miscellaneous
Package Contents:
Dolphin 9500 Series mobile computer
  • Main battery pack (7.4v Li-ion)
  • Microsoft Companion CD
  • Dolphin 9500 Quick Start Guide<
Additional Information:
I/O Ports: USB RS232 IrDA Other Features Integrated Speaker Integrated Microphone Headset Jack
  • Terminal Emulation: TN5250 Direct Connect Client
  • WLAN Regulatory Domain: FCC
Certifications & Standards:

RF Approval US and Canada:

  • FCC Part 15.247
  • RSS 210
  • FCC Part 24
  • RSS 133
  • EN 301 511: 2000
  • EN 301 489-1 (2002-08)
  • EN 301 489-7 (2002-08)
  • EN 60950:2000
  • EN 50361:2001
Warranty
Limited Warranty:
2 Year
