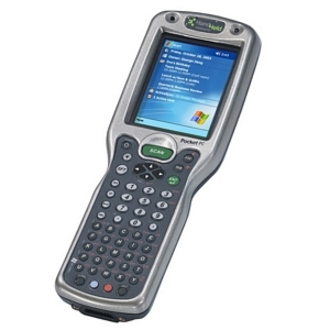

Honeywell 9500B00-131-C30 Mobile Computer

Honeywell Dolphin 9500 - 64MB RAM, batch, 56 keys, color display. Includes standard range imager & Pocket PC OS. Order cradle, cables & battery separately. See accessories. (Formerly listed as 9500B00-131-C10 and 9500B00-131-C20)

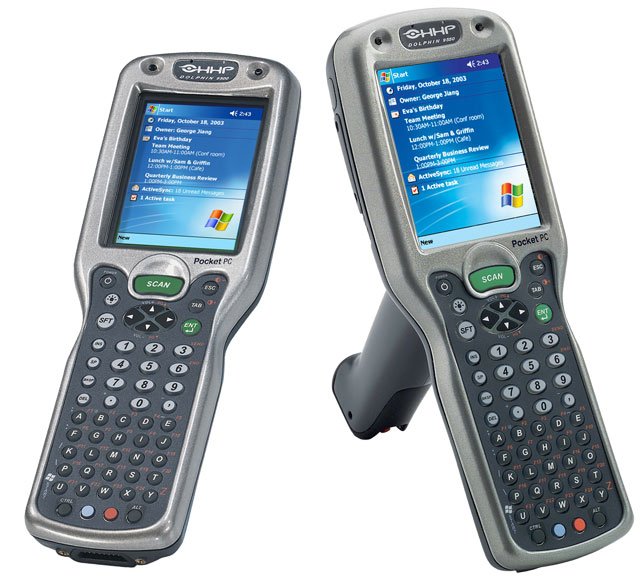

The Dolphin 9500 & 9550 series mobile computers deliver unparalleled performance and value for all mobile data collection applications.

The Dolphin 9500 & 9550 series mobile computers deliver unparalleled performance and value for all mobile data collection applications. Their lightweight, ergonomic, and rugged designs provide the ease of use and operational reliability needed to excel in robust mobile applications such as package delivery, field service, route accounting, transportation, warehousing, retail, and industrial/manufacturing.

Technical Information

  • Operating System: Windows Mobile 2003 2nd Edition
  • Processor: Intel PXA255 XScale 400MHz
  • Data Collection Type: Batch
  • Scanner Type: Imager Standard Range - IT4100 with Green Aimer
  • Symbologies Supported:
    • Australian Post
    • Aztec
    • Aztec Mesa
    • British Post
    • Canadian Post
    • China Post
    • Codabar
    • Codablock F
    • Code 11
    • Code 128
    • Code 16K
    • Code 3 of 9
    • Code 32 Pharmaceutical
    • Code 93
    • Composite
    • DataMatrix
    • EAN Add-ons
    • EAN with Extended Coupon Code
    • EAN-13
    • Interleaved 2 of 5
    • Japanese Post
    • KIX(Netherlands) Post
    • Korea Post
    • Matrix 2 of 5
    • MaxiCode
    • OCR
    • OCR-A
    • OCR-B
    • PDF 417
    • Planet Code
    • Plessey
    • PosiCode
    • Postnet
    • QR Code
    • RSS
    • RSS-14
    • Straight 2 of 5 IATA
    • Straight 2 of 5 Industrial
    • Telepen
    • Trioptic Code
    • UCC/EAN
    • UCC/EAN 128
    • UPC
    • UPC-A
    • China Postal Code

General Information

  • Manufacturer: Hand Held Products
  • Product Line: Dolphin
  • Product Name: Dolphin 9500 Mobile Computer

Physical Characteristics

  • Display: Color QVGA - Touch Screen LCD
  • Display Resolution: 240 x 320 Portrait Mode
  • User Accessible Expansion Slot: SD Card Slot
  • Keyboard: 56 Key Full Alphanumeric Integrated
  • Battery Capacity: 14.8 Wh
  • Battery Type: Lithium Ion - Included
  • Dimensions: 3.45" (88mm) x 9.6" (244mm) x 1.66" (42mm)
  • Weight: 19.7 oz

Environmental Conditions

  • Environmental Sealing: IP64
  • Temperature:
    • -10°C (14°F) to 50°C (122°F) Operating
    • -20°C (-4°F) to 70°C (158°F) Storage
  • Humidity: 95% Non-condensing
  • Electrostatic Discharge (ESD): 15kV All Surfaces Discharge
  • Drop Spec: 5' To Concrete Multiple

Warranty

  • Manufacturer Warranty: 2 Year(s)
  • Warranty Details: 1 year on Touch Screen

Memory

  • RAM Memory: 64MB
  • Flash Memory: 32MB

Other

  • Package Contents: Dolphin 9500 Mobile Computer Battery Pack Stylus

Agency Approvals

  • Agency Approvals: FCC CE Radio Country: US/Canada R&TTE

Full specifications (PDF)

Full specifications (PDF)

Brand Honeywell
Model Dolphin 9500 & 9550
RAM Memory 64 MB
Operating System Windows Mobile, Windows Mobile 2003 SE for Pocket PC
Display Resolution 240 x 320
Style Full-size
Scanner Type Imager
Data Collection Type Batch
