Product Description:

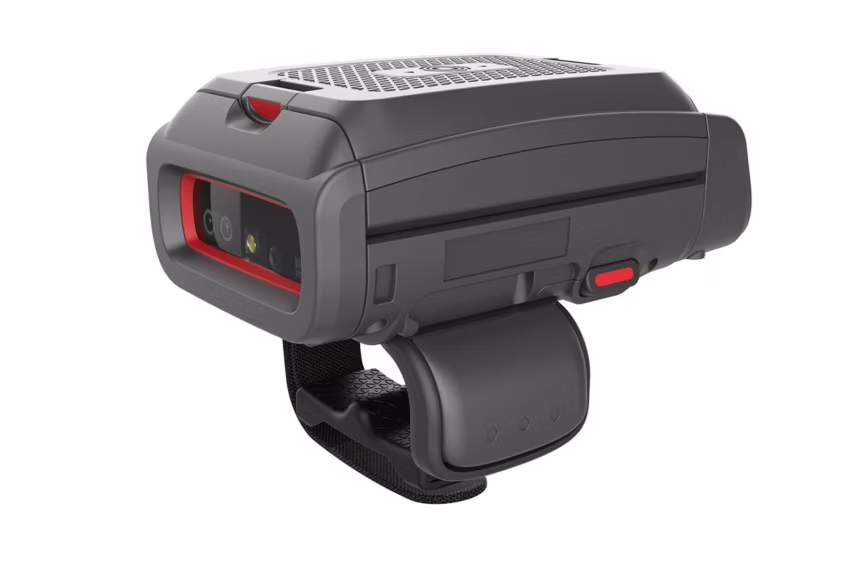

  Mobile Computer, Honeywell 8690I, Wearable RFID Mini Mobile Computer, 1D, 2D, RFID, Wi-Fi, Interface Customization. Includes Battery, Triggered Ring And Hook-And-Loop Strap. Charger Sold Separately And Required For Use

Honeywell 8690i Mobile Computer Model Overview

The 8690i Wearable RFID Mini Mobile Computer is the ultimate solution for businesses looking to boost workflow efficiency. This compact, high-performance device combines the functionality of an RFID reader, scanner, and mobile computer into a single device, streamlining processes like picking, packing, and sorting. With a customizable display and ergonomic design, the 8690i enhances productivity by providing workers with essential information right within their line of sight, reducing unnecessary movements and increasing operational throughput.
Key Features
  • Compact Ergonomic Design: Fits easily on the hand for hands-free operations.
  • Streamlined Functionality: Replaces multiple devices, cutting operational costs.
  • Versatile Mounting Options: Available as a two-finger ring or glove mount.
  • Durable Construction: Built to withstand tough environments with a high drop and tumble rating.
  • Advanced Connectivity: Wi-Fi and Bluetooth for seamless network integration.
  • Battery Efficiency: Supports a full shift of operation with hot swap capability.

Specifications
  • RFID Standards: EPC Global Class 1 Gen 2/ISO 18000-6C
  • Dimensions: 95.7 mm x 56 mm x 39.4 mm (3.8 in x 2.2 in x 1.6 in)
  • Weight: 211g (7.4 oz)
  • Operating Temperature: -20°C to 50°C (-4°F to 122°F)
  • Storage Temperature: -20°C to 60°C (-4°F to 140°F)
  • Humidity: 0% to 95% relative humidity (non-condensing)
  • Battery: 3.6 V, 3400 mAh, with minimum 6 hours of operation
  • Charge Time: 3 hours for battery charger; 3.5 hours for device charger
Honeywell 8690IB201-2-N Mobile Computer Overview

The 8690i is a compact, high-performance, hands-free mini mobile computer to help businesses improve workflow efficiency.

The 8690i drives streamlined workflows via a single device for many applications, replacing an RFID reader, scanner and mobile computer. The customizable userfacing display communicates workflow instructions, while the two-button interface enables users to navigate menus and confirm selections. The 8690i wearable mini mobile computer connects directly to the network application through Wi-Fi and the SDK, even enabling offline functionality via TotalFreedom plugin development.

Merging common applications, such as picking, packing and sorting, onto a single device offers improved ergonomics with reduced acquisition and operating costs when compared to wearable scanner plus mobile computer solutions. Rapid RFID product and location identification can enable up to a 66% reduction in steps per transaction vs. handheld barcode scanning applications in high frequency workflows, increasing productivity and operational throughput.

Configuration options help tailor the 8690i device the end-use application. It is available (and quickly field-reconfigurable) as a two-finger ring or a back-of-hand glove mount, enabling the device to suit ergonomic and workflow requirements. Available 4 or 12 bay chargers for devices or batteries ensure simplicity to support high volume consolidated settings or widely distributed workflows. With advanced performance to drive highly efficient workflows and durability to survive tough operating environments, the 8690i wearable mini mobile computer can add efficiency and effectiveness to even the most common tasks.

Technical Information
Minimum Frequency:
902 MHz
Maximum Frequency:
928 MHz
Maximum Read Distance:
39.60"
Wireless LAN:
Yes
Physical Characteristics
Form Factor:
Wearable
Height:
1.6"
Width:
2.2"
Depth:
3.8"
Warranty
Limited Warranty:
2 Year
Item Numbers
UNSPSC: 43211710
