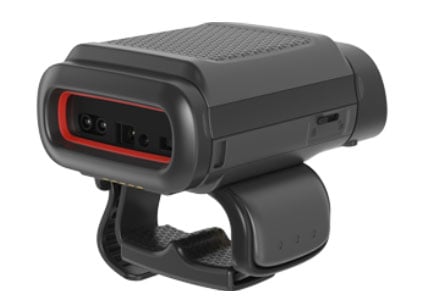

The Honeywell 8680i Wearable Mini Mobile Computer is a compact, high-performance device that revolutionizes workflow efficiency in demanding environments. By combining the functionality of a scanner and mobile computer into a single ergonomic device, the 8680i enhances productivity through hands-free operation. Its customizable user interface and advanced connectivity options allow for streamlined workflows tailored to various applications, from picking to packing. Built to withstand rugged conditions, the 8680i ensures reliability and performance, making it an ideal solution for businesses seeking to elevate their operational effectiveness.
Key Features
Ergonomic Wearable Design: Enhances efficiency in frequent scanning tasks.
Cost-Effective Solution: Combines scanner and mobile computing functionalities, reducing acquisition costs.
Customizable Accessories: Options for ring or glove form factors and various battery sizes.
Rugged Durability: Designed to endure tough operating environments with specifications for drops and tumbles.
Honeywell Connected Workflow: Offers analytics for battery lifecycle management and simple deployment for updates.
Specifications
Mechanical:
Dimensions: Slim Battery - 81 mm x 56 mm x 31.3 mm; Extended Battery - 81 mm x 56 mm x 35 mm
Weight: Triggered Ring with Slim Battery - 151 g; Triggered Ring with Extended Battery - 168 g
Scan Performance:
Scan Pattern: Omni-directional area imager
Motion Tolerance: Up to 584 cm/second
Typical Range: Varies by symbology from 44 mm to 812 mm
Environmental:
Operating Temperature: -20°C to 50°C
Drop and Tumble Ratings: 30 drops from 1.5 m; 2,000 tumbles from 0.5 m
Warranty: Two-year factory warranty (one year for battery)
Honeywell 8680IB400-2-N Mobile Computer Overview
The 8680i is a compact, high-performance, hands-free mini mobile computer to help businesses improve workflow efficiency.

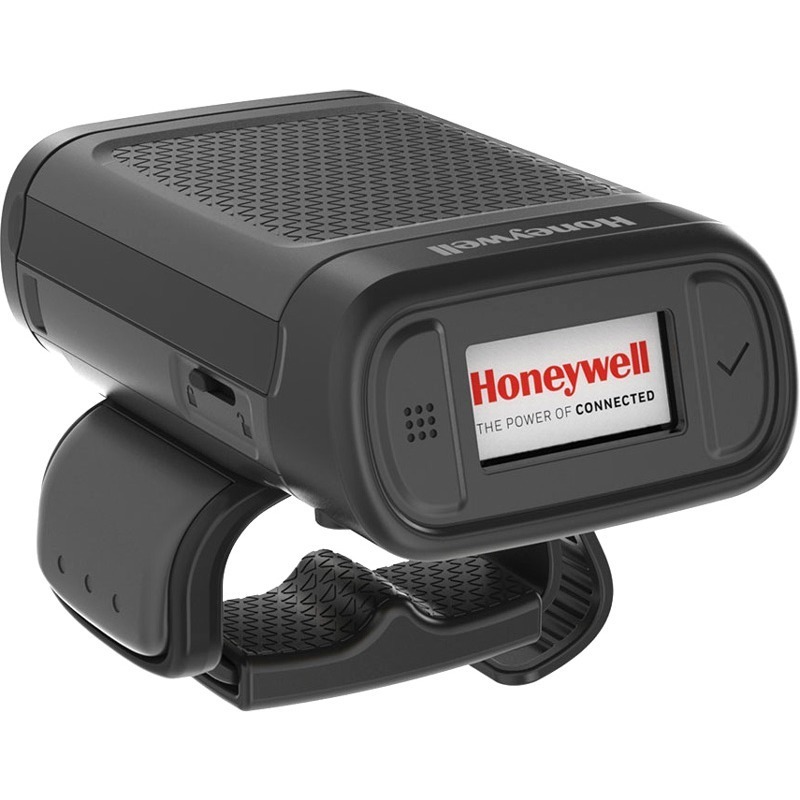

The 8680i Advanced model drives streamlined workflows onto a single device for many applications, replacing a scanner and mobile computer. The customizable user-facing display communicates workflow instructions, while the two-button interface enables users to navigate menus and confirm selections. The 8680i wearable mini mobile connects directly to the network application through WiFi and the SDK. Converging common applications such as picking, packing, and sorting onto a single device offers improved ergonomics and reduced acquisition cost when replacing current wearable scanner plus mobile computer solutions.
A Standard version offers lightweight, ergonomic Bluetooth®-wearable scanning with clear communication of wireless connection, battery status, and scan results when paired with another device.
Configuration options help tailor the 8680i device to the environment. It is available (and field-reconfigurable) with two-finger ring or back-of-hand glovemount options, and can use slim or extended batteries to suit the duty cycle, shift length, and size/weight priorities. With performance to drive effective workflows and durability to survive tough operating environments, the 8680i wearable mini mobile can add efficiency and effectiveness to the most common tasks.
FEATURES AND BENEFITS
The 8680i wearable mini mobile is designed to speed frequent scanning tasks, leaving hands free to do the job needed.
Advanced version offers customizable line-of-sight screen, Wi-Fi, and SDK for application development, enabling the 8680i device to support streamlined workflows as a standalone device, replacing scanner + mobile computer alternatives.
Field-reconfigurable accessories to the device module enable ring or glove form factor; extended or slim batteries tailor size/ weight to duty cycle needs; Standard or Advanced versions to fit workflow needs.
Engineered for 2,000 0.5 meter (1.6 feet) tumbles, the 8680i wearable mini mobile is built to endure rugged work environments.
Honeywell Operational Intelligence workflow analytics to manage battery population lifecycle, ensuring uninterrupted full-shift operation; simple deployment of setting and firmware updates.
Two-finger ring strap for triggered configuration (package of 10). Triggered ring strap mount (Part# 8680i505RINGMT) required to attach to 8680i device must be ordered separately.
Triggered ring-strap mount (package of 10, includes trigger component). Two-finger ring strap for triggered configuration (Part# 8680i505FNGRSTRAP ) must be ordered separately.
8680i Right hand strap glove with device harness, one size, package of 10, trigger on index finger. Glove mount (8680i505GMT) required to attach to 8680i device must be ordered separately.
4 Bay 8680i Battery Charger. Charges battery only when removed from 8680i. Compatible with Extended or Slim batteries. Region-specific cord, US line cord is(Part# 19-19726) must be ordered separately.
4 Bay 8680i Device Charger. Charges complete 8680i unit with extended or slim battery installed. Region-specific cord, US line cord is (Part# 19-19726) must be ordered separately.
12 Bay 8680i Battery Charger. Charges battery only when removed from 8680i. Compatible with Extended or Slim batteries. Region-specific cord must be ordered separately.
What are the main features of the Honeywell 8680i wearable mobile computer?
The Honeywell 8680i is a compact, high-performance wearable mini mobile computer that combines scanner and mobile computing functionality into a single ergonomic device. It features an omni-directional area imager for 1D/2D barcode scanning, a customizable user-facing display for workflow instructions, hands-free operation with triggered ring and hook-and-loop strap attachments, and Bluetooth wireless connectivity. The device is designed to streamline workflows for picking, packing, sorting, and other warehouse operations while reducing acquisition costs by eliminating the need for separate scanning and computing devices.
What are the scanning capabilities and range of the 8680i?
The 8680i features an omni-directional area imager with impressive scanning performance across multiple symbologies. It can read 10 mil Code 39 from 65mm to 544mm, 20 mil Code 39 from 49mm to 812mm, 100% UPC from 44mm to 552mm, and DataMatrix and PDF417 codes at various ranges. The device supports motion tolerance up to 584 cm/second with ±45° pitch and ±60° skew tolerance, making it highly effective for fast-paced warehouse and retail environments.
Is the Honeywell 8680i durable enough for warehouse and manufacturing environments?
Yes, the 8680i is built for rugged durability with a two-year factory warranty and specifications designed for demanding conditions. It can withstand 30 drops from 1.5 meters (4.9 feet) to concrete and 2,000 tumbles, and operates reliably in temperatures from -20°C to 50°C (-4°F to 122°F) with humidity tolerance up to 95% non-condensing. These specifications make it ideal for manufacturing, transportation, logistics, and other harsh operating environments.
What connectivity and power options does the 8680i offer?
The 8680i connects via Bluetooth for wireless pairing with other devices and supports WiFi connectivity for network applications through SDK integration, even enabling offline functionality through TotalFreedom plugin development. The device uses a 3.6V, 3400 mAh battery with a minimum of 6 hours of operation per charge, with two battery versions available: a slim battery (31.3mm height) and an extended battery (35mm height). Battery and charger are sold separately and are required for use.
What are the physical dimensions and weight of the 8680i?
The Honeywell 8680i is a compact device with slim battery dimensions of 81mm x 56mm x 31.3mm (3.2 in x 2.2 in x 1.2 in) and extended battery dimensions of 81mm x 56mm x 35mm (3.2 in x 2.2 in x 1.4 in). When equipped with the triggered ring and slim battery, it weighs 151 grams (5.3 oz), and with the extended battery it weighs 168 grams (5.9 oz), making it lightweight and ergonomic for all-day wearable use.
What industries and applications is the 8680i designed for?
The 8680i is purpose-built for hospitality, manufacturing, retail, transportation, and logistics operations where hands-free scanning and mobile computing improve workflow efficiency. Its customizable interface and wearable design make it ideal for picking, packing, sorting, and other frequent scanning tasks where workers need both mobility and immediate access to workflow instructions. Contact us today to discuss how the 8680i can optimize your specific operational needs.
The Honeywell 8680IB400-2-N Mobile Computer is also known as
HSM-8680IB4002N
or 8680IB4002N.
Full specifications (PDF)
