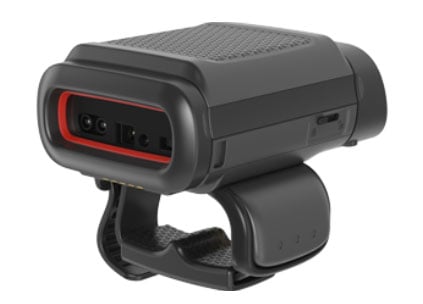

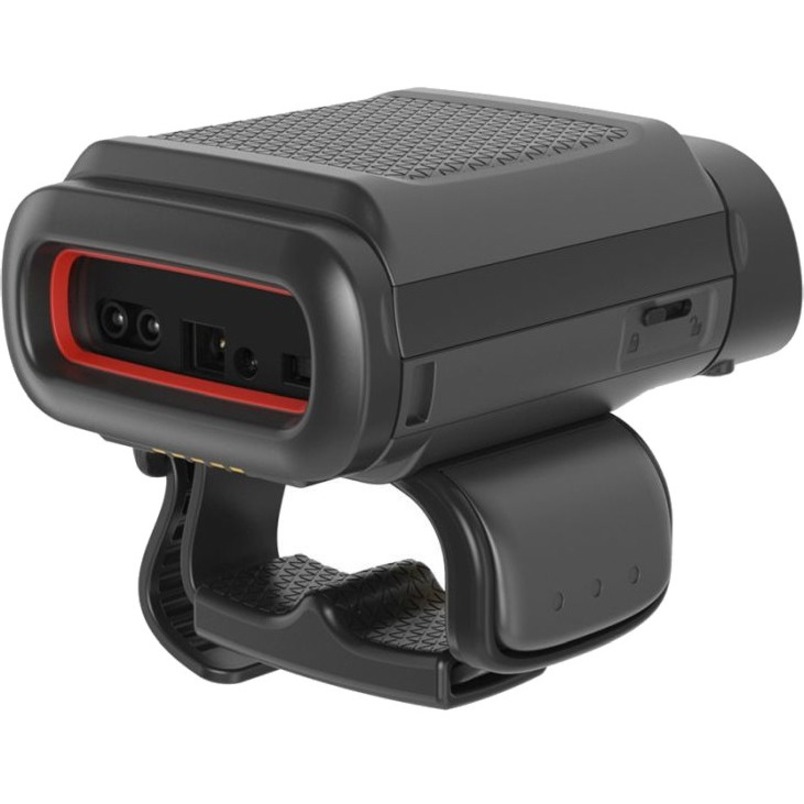

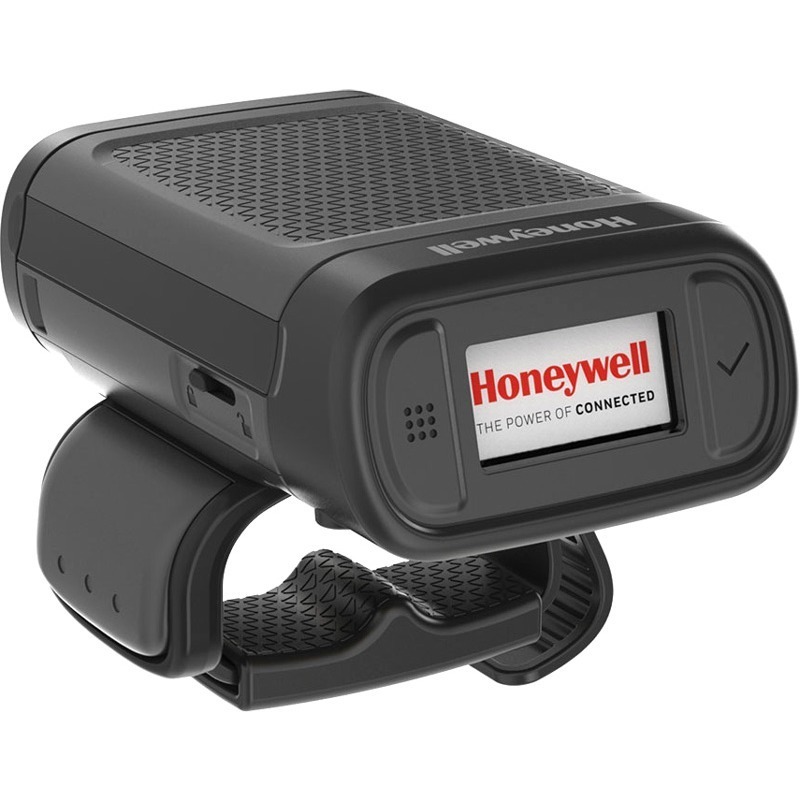

The Honeywell 8680i Wearable Mini Mobile Computer is a compact, high-performance device that revolutionizes workflow efficiency in demanding environments. By combining the functionality of a scanner and mobile computer into a single ergonomic device, the 8680i enhances productivity through hands-free operation. Its customizable user interface and advanced connectivity options allow for streamlined workflows tailored to various applications, from picking to packing. Built to withstand rugged conditions, the 8680i ensures reliability and performance, making it an ideal solution for businesses seeking to elevate their operational effectiveness.
Key Features
Ergonomic Wearable Design: Enhances efficiency in frequent scanning tasks.
Cost-Effective Solution: Combines scanner and mobile computing functionalities, reducing acquisition costs.
Customizable Accessories: Options for ring or glove form factors and various battery sizes.
Rugged Durability: Designed to endure tough operating environments with specifications for drops and tumbles.
Honeywell Connected Workflow: Offers analytics for battery lifecycle management and simple deployment for updates.
Specifications
Mechanical:
Dimensions: Slim Battery - 81 mm x 56 mm x 31.3 mm; Extended Battery - 81 mm x 56 mm x 35 mm
Weight: Triggered Ring with Slim Battery - 151 g; Triggered Ring with Extended Battery - 168 g
Scan Performance:
Scan Pattern: Omni-directional area imager
Motion Tolerance: Up to 584 cm/second
Typical Range: Varies by symbology from 44 mm to 812 mm
Environmental:
Operating Temperature: -20°C to 50°C
Drop and Tumble Ratings: 30 drops from 1.5 m; 2,000 tumbles from 0.5 m
Warranty: Two-year factory warranty (one year for battery)
Honeywell 8680IB301-2-N Mobile Computer Overview
The 8680i is a compact, high-performance, hands-free mini mobile computer to help businesses improve workflow efficiency.
The 8680i Advanced model drives streamlined workflows onto a single device for many applications, replacing a scanner and mobile computer. The customizable user-facing display communicates workflow instructions, while the two-button interface enables users to navigate menus and confirm selections. The 8680i wearable mini mobile connects directly to the network application through WiFi and the SDK. Converging common applications such as picking, packing, and sorting onto a single device offers improved ergonomics and reduced acquisition cost when replacing current wearable scanner plus mobile computer solutions.
A Standard version offers lightweight, ergonomic Bluetooth®-wearable scanning with clear communication of wireless connection, battery status, and scan results when paired with another device.
Configuration options help tailor the 8680i device to the environment. It is available (and field-reconfigurable) with two-finger ring or back-of-hand glovemount options, and can use slim or extended batteries to suit the duty cycle, shift length, and size/weight priorities. With performance to drive effective workflows and durability to survive tough operating environments, the 8680i wearable mini mobile can add efficiency and effectiveness to the most common tasks.
FEATURES AND BENEFITS
The 8680i wearable mini mobile is designed to speed frequent scanning tasks, leaving hands free to do the job needed.
Advanced version offers customizable line-of-sight screen, Wi-Fi, and SDK for application development, enabling the 8680i device to support streamlined workflows as a standalone device, replacing scanner + mobile computer alternatives.
Field-reconfigurable accessories to the device module enable ring or glove form factor; extended or slim batteries tailor size/ weight to duty cycle needs; Standard or Advanced versions to fit workflow needs.
Engineered for 2,000 0.5 meter (1.6 feet) tumbles, the 8680i wearable mini mobile is built to endure rugged work environments.
Honeywell Operational Intelligence workflow analytics to manage battery population lifecycle, ensuring uninterrupted full-shift operation; simple deployment of setting and firmware updates.
Two-finger ring strap for triggered configuration (package of 10). Triggered ring strap mount (Part# 8680i505RINGMT) required to attach to 8680i device must be ordered separately.
Triggered ring-strap mount (package of 10, includes trigger component). Two-finger ring strap for triggered configuration (Part# 8680i505FNGRSTRAP ) must be ordered separately.
8680i Right hand strap glove with device harness, one size, package of 10, trigger on index finger. Glove mount (8680i505GMT) required to attach to 8680i device must be ordered separately.
4 Bay 8680i Battery Charger. Charges battery only when removed from 8680i. Compatible with Extended or Slim batteries. Region-specific cord, US line cord is(Part# 19-19726) must be ordered separately.
4 Bay 8680i Device Charger. Charges complete 8680i unit with extended or slim battery installed. Region-specific cord, US line cord is (Part# 19-19726) must be ordered separately.
12 Bay 8680i Battery Charger. Charges battery only when removed from 8680i. Compatible with Extended or Slim batteries. Region-specific cord must be ordered separately.
What makes the Honeywell 8680i different from a standard barcode scanner?
The Honeywell 8680i is a wearable mini mobile computer that combines scanner and mobile computing functionality into a single ergonomic device, eliminating the need to carry separate equipment. Unlike traditional scanners, the 8680i features a customizable user-facing display that communicates workflow instructions and enables hands-free operation, making it ideal for picking, packing, and sorting applications. We offer this advanced solution to streamline your warehouse operations and reduce equipment acquisition costs.
Is the Honeywell 8680i suitable for harsh warehouse environments?
Yes, the 8680i is built for rugged durability and can withstand demanding conditions with a rating of 30 drops from 1.5 meters (4.9 feet) to concrete and 2,000 tumbles. It operates reliably in temperatures from -20°C to 50°C (-4°F to 122°F) and maintains performance in humidity levels up to 95% non-condensing. Contact us today to learn how we can outfit your warehouse with equipment designed to endure tough environments.
What are the scanning capabilities of the Honeywell 8680i?
The 8680i features an omni-directional area imager with exceptional motion tolerance up to 584 cm (230 inches) per second, reading both 1D and 2D barcodes. It supports multiple symbologies including Code 39, DataMatrix, PDF417, and UPC with typical scanning ranges from 44mm to 812mm depending on barcode type and size. Available from us with full technical specifications to ensure compatibility with your existing barcode formats.
How does the 8680i connect to my warehouse management system?
The Honeywell 8680i connects directly to network applications through WiFi and supports SDK integration for custom software development, even enabling offline functionality through TotalFreedom plugin development. This flexibility allows seamless integration with your existing warehouse management systems and real-time data synchronization. Visit barcodesinc.com to discuss connectivity requirements with our team for your specific workflow needs.
What battery options are available for the 8680i?
The 8680i is available in two battery configurations: a Slim Battery Version (81mm x 56mm x 31.3mm, 151g with triggered ring) and an Extended Battery Version (81mm x 56mm x 35mm, 168g with triggered ring) to match your operational demands. Both versions use 3.6V batteries with minimum 6 hours of operation and feature a two-year factory warranty, though the battery itself carries a one-year warranty. Our team can help you select the right battery configuration based on your shift length and scanning intensity.
What accessories are included with the Honeywell 8680i, and what do I need to purchase separately?
The 8680iB301-2-N model includes a glove mount attachment, battery, gloves, and charger in the package to get you started immediately. However, depending on your specific configuration and deployment needs, additional charging options and customizable accessories such as ring or glove form factors may be required. Contact us today to confirm which accessories you need for your particular use case and to ensure you have everything required for deployment.
The Honeywell 8680IB301-2-N Mobile Computer is also known as
HSM-8680IB3012N
Full specifications (PDF)
