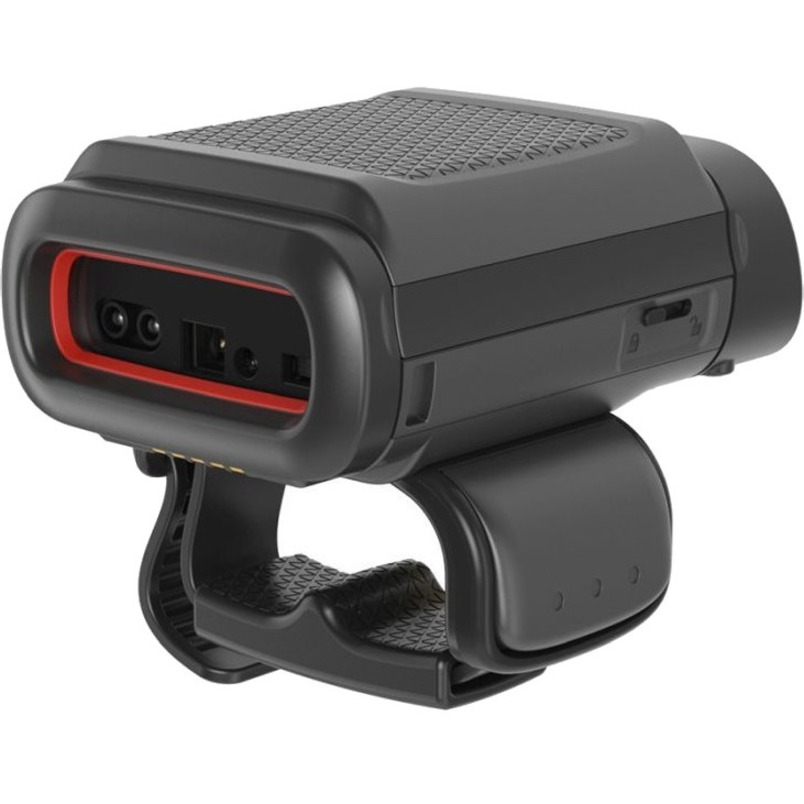

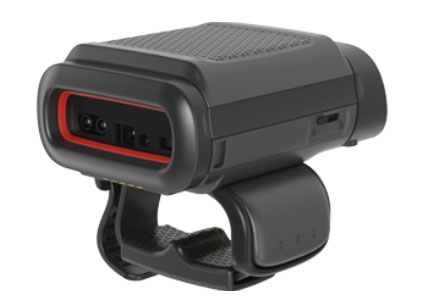

The Honeywell 8680i Wearable Mini Mobile Computer is a compact, high-performance device that revolutionizes workflow efficiency in demanding environments. By combining the functionality of a scanner and mobile computer into a single ergonomic device, the 8680i enhances productivity through hands-free operation. Its customizable user interface and advanced connectivity options allow for streamlined workflows tailored to various applications, from picking to packing. Built to withstand rugged conditions, the 8680i ensures reliability and performance, making it an ideal solution for businesses seeking to elevate their operational effectiveness.
Key Features
Ergonomic Wearable Design: Enhances efficiency in frequent scanning tasks.
Cost-Effective Solution: Combines scanner and mobile computing functionalities, reducing acquisition costs.
Customizable Accessories: Options for ring or glove form factors and various battery sizes.
Rugged Durability: Designed to endure tough operating environments with specifications for drops and tumbles.
Honeywell Connected Workflow: Offers analytics for battery lifecycle management and simple deployment for updates.
Specifications
Mechanical:
Dimensions: Slim Battery - 81 mm x 56 mm x 31.3 mm; Extended Battery - 81 mm x 56 mm x 35 mm
Weight: Triggered Ring with Slim Battery - 151 g; Triggered Ring with Extended Battery - 168 g
Scan Performance:
Scan Pattern: Omni-directional area imager
Motion Tolerance: Up to 584 cm/second
Typical Range: Varies by symbology from 44 mm to 812 mm
Environmental:
Operating Temperature: -20°C to 50°C
Drop and Tumble Ratings: 30 drops from 1.5 m; 2,000 tumbles from 0.5 m
Warranty: Two-year factory warranty (one year for battery)
Honeywell 8680IB300-2-N Mobile Computer Overview
The 8680i is a compact, high-performance, hands-free mini mobile computer to help businesses improve workflow efficiency.
The 8680i Advanced model drives streamlined workflows onto a single device for many applications, replacing a scanner and mobile computer. The customizable user-facing display communicates workflow instructions, while the two-button interface enables users to navigate menus and confirm selections. The 8680i wearable mini mobile connects directly to the network application through WiFi and the SDK. Converging common applications such as picking, packing, and sorting onto a single device offers improved ergonomics and reduced acquisition cost when replacing current wearable scanner plus mobile computer solutions.
A Standard version offers lightweight, ergonomic Bluetooth®-wearable scanning with clear communication of wireless connection, battery status, and scan results when paired with another device.
Configuration options help tailor the 8680i device to the environment. It is available (and field-reconfigurable) with two-finger ring or back-of-hand glovemount options, and can use slim or extended batteries to suit the duty cycle, shift length, and size/weight priorities. With performance to drive effective workflows and durability to survive tough operating environments, the 8680i wearable mini mobile can add efficiency and effectiveness to the most common tasks.
FEATURES AND BENEFITS
The 8680i wearable mini mobile is designed to speed frequent scanning tasks, leaving hands free to do the job needed.
Advanced version offers customizable line-of-sight screen, Wi-Fi, and SDK for application development, enabling the 8680i device to support streamlined workflows as a standalone device, replacing scanner + mobile computer alternatives.
Field-reconfigurable accessories to the device module enable ring or glove form factor; extended or slim batteries tailor size/ weight to duty cycle needs; Standard or Advanced versions to fit workflow needs.
Engineered for 2,000 0.5 meter (1.6 feet) tumbles, the 8680i wearable mini mobile is built to endure rugged work environments.
Honeywell Operational Intelligence workflow analytics to manage battery population lifecycle, ensuring uninterrupted full-shift operation; simple deployment of setting and firmware updates.
Two-finger ring strap for triggered configuration (package of 10). Triggered ring strap mount (Part# 8680i505RINGMT) required to attach to 8680i device must be ordered separately.
Triggered ring-strap mount (package of 10, includes trigger component). Two-finger ring strap for triggered configuration (Part# 8680i505FNGRSTRAP ) must be ordered separately.
8680i Right hand strap glove with device harness, one size, package of 10, trigger on index finger. Glove mount (8680i505GMT) required to attach to 8680i device must be ordered separately.
4 Bay 8680i Battery Charger. Charges battery only when removed from 8680i. Compatible with Extended or Slim batteries. Region-specific cord, US line cord is(Part# 19-19726) must be ordered separately.
4 Bay 8680i Device Charger. Charges complete 8680i unit with extended or slim battery installed. Region-specific cord, US line cord is (Part# 19-19726) must be ordered separately.
12 Bay 8680i Battery Charger. Charges battery only when removed from 8680i. Compatible with Extended or Slim batteries. Region-specific cord must be ordered separately.
What is the Honeywell 8680i and what makes it different from traditional scanners?
The Honeywell 8680i is a compact, wearable mini mobile computer that combines the functionality of a barcode scanner and mobile computer into a single ergonomic device. Unlike traditional handheld scanners, the 8680i enables hands-free operation with a customizable user-facing display that communicates workflow instructions, making it ideal for picking, packing, and sorting applications where efficiency and mobility are critical.
What are the key connectivity and operating features of the 8680i?
The 8680i connects via Bluetooth and WiFi, offering both real-time and offline functionality through SDK and TotalFreedom plugin development. It features omni-directional area imaging with motion tolerance up to 584 cm/second and supports 1D/2D barcode symbologies including Code 39, DataMatrix, PDF417, and UPC, with scan ranges from 44 mm to 812 mm depending on barcode type.
Is the Honeywell 8680i durable enough for warehouse and manufacturing environments?
Yes, the 8680i is built for rugged conditions with a two-year factory warranty and tested durability specifications including 30 drops from 1.5 meters (4.9 feet) to concrete and 2,000 tumbles. It operates reliably in temperatures from -20°C to 50°C (-4°F to 122°F) and maintains performance in humidity levels up to 95% non-condensing, making it suitable for demanding warehouse, manufacturing, and logistics operations.
What battery options are available for the 8680i and how long does it operate?
The 8680i is available in two battery configurations: a Slim Battery Version (81 x 56 x 31.3 mm, 151g with triggered ring) and an Extended Battery Version (81 x 56 x 35 mm, 168g with triggered ring). Both feature a 3.6V, 3400 mAh battery with a minimum of 6 hours of operation, and charge time is approximately 3 hours with a battery charger or 3.5 hours with a device charger.
What accessories and attachments are included or required for the 8680i?
The 8680i comes with a glove mount attachment, battery, gloves, and charger according to the product specifications, though charger and battery may be sold separately depending on the configuration. The device offers customizable form factors including ring and glove attachments, allowing you to tailor the wearable setup to your specific workflow needs.
What industries and applications is the Honeywell 8680i designed for?
The 8680i is engineered for hospitality, manufacturing, retail, transportation, and logistics environments where hands-free scanning and mobile computing streamline operations. Its ergonomic wearable design and customizable interface make it particularly effective for high-frequency scanning tasks, inventory management, order fulfillment, and workflow-intensive applications where combining scanning and computing reduces equipment costs and improves productivity.
The Honeywell 8680IB300-2-N Mobile Computer is also known as
HSM-8680IB3002N
or 8680IB3002N.
Full specifications (PDF)
