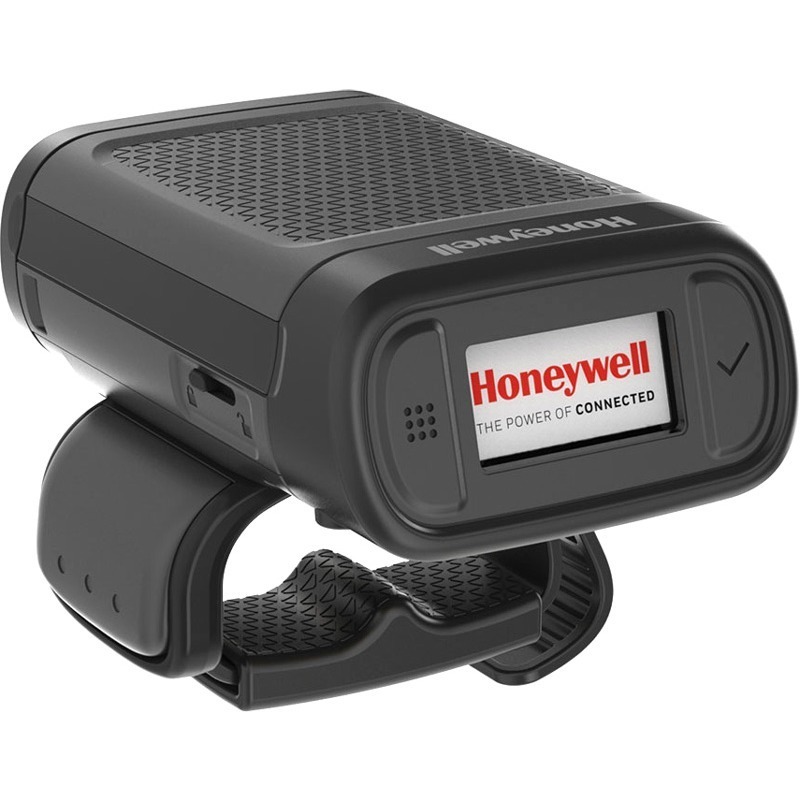

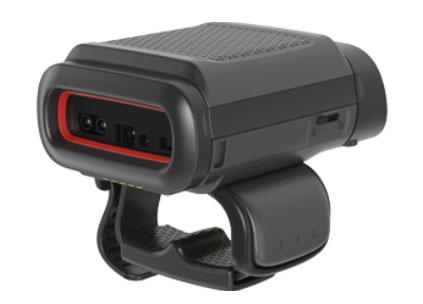

The Honeywell 8680i Wearable Mini Mobile Computer is a compact, high-performance device that revolutionizes workflow efficiency in demanding environments. By combining the functionality of a scanner and mobile computer into a single ergonomic device, the 8680i enhances productivity through hands-free operation. Its customizable user interface and advanced connectivity options allow for streamlined workflows tailored to various applications, from picking to packing. Built to withstand rugged conditions, the 8680i ensures reliability and performance, making it an ideal solution for businesses seeking to elevate their operational effectiveness.
Key Features
Ergonomic Wearable Design: Enhances efficiency in frequent scanning tasks.
Cost-Effective Solution: Combines scanner and mobile computing functionalities, reducing acquisition costs.
Customizable Accessories: Options for ring or glove form factors and various battery sizes.
Rugged Durability: Designed to endure tough operating environments with specifications for drops and tumbles.
Honeywell Connected Workflow: Offers analytics for battery lifecycle management and simple deployment for updates.
Specifications
Mechanical:
Dimensions: Slim Battery - 81 mm x 56 mm x 31.3 mm; Extended Battery - 81 mm x 56 mm x 35 mm
Weight: Triggered Ring with Slim Battery - 151 g; Triggered Ring with Extended Battery - 168 g
Scan Performance:
Scan Pattern: Omni-directional area imager
Motion Tolerance: Up to 584 cm/second
Typical Range: Varies by symbology from 44 mm to 812 mm
Environmental:
Operating Temperature: -20°C to 50°C
Drop and Tumble Ratings: 30 drops from 1.5 m; 2,000 tumbles from 0.5 m
Warranty: Two-year factory warranty (one year for battery)
Honeywell 8680IB201-2-N Mobile Computer Overview
The 8680i is a compact, high-performance, hands-free mini mobile computer to help businesses improve workflow efficiency.
The 8680i Advanced model drives streamlined workflows onto a single device for many applications, replacing a scanner and mobile computer. The customizable user-facing display communicates workflow instructions, while the two-button interface enables users to navigate menus and confirm selections. The 8680i wearable mini mobile connects directly to the network application through WiFi and the SDK. Converging common applications such as picking, packing, and sorting onto a single device offers improved ergonomics and reduced acquisition cost when replacing current wearable scanner plus mobile computer solutions.
A Standard version offers lightweight, ergonomic Bluetooth®-wearable scanning with clear communication of wireless connection, battery status, and scan results when paired with another device.
Configuration options help tailor the 8680i device to the environment. It is available (and field-reconfigurable) with two-finger ring or back-of-hand glovemount options, and can use slim or extended batteries to suit the duty cycle, shift length, and size/weight priorities. With performance to drive effective workflows and durability to survive tough operating environments, the 8680i wearable mini mobile can add efficiency and effectiveness to the most common tasks.
FEATURES AND BENEFITS
The 8680i wearable mini mobile is designed to speed frequent scanning tasks, leaving hands free to do the job needed.
Advanced version offers customizable line-of-sight screen, Wi-Fi, and SDK for application development, enabling the 8680i device to support streamlined workflows as a standalone device, replacing scanner + mobile computer alternatives.
Field-reconfigurable accessories to the device module enable ring or glove form factor; extended or slim batteries tailor size/ weight to duty cycle needs; Standard or Advanced versions to fit workflow needs.
Engineered for 2,000 0.5 meter (1.6 feet) tumbles, the 8680i wearable mini mobile is built to endure rugged work environments.
Honeywell Operational Intelligence workflow analytics to manage battery population lifecycle, ensuring uninterrupted full-shift operation; simple deployment of setting and firmware updates.
Two-finger ring strap for triggered configuration (package of 10). Triggered ring strap mount (Part# 8680i505RINGMT) required to attach to 8680i device must be ordered separately.
Triggered ring-strap mount (package of 10, includes trigger component). Two-finger ring strap for triggered configuration (Part# 8680i505FNGRSTRAP ) must be ordered separately.
8680i Right hand strap glove with device harness, one size, package of 10, trigger on index finger. Glove mount (8680i505GMT) required to attach to 8680i device must be ordered separately.
4 Bay 8680i Battery Charger. Charges battery only when removed from 8680i. Compatible with Extended or Slim batteries. Region-specific cord, US line cord is(Part# 19-19726) must be ordered separately.
4 Bay 8680i Device Charger. Charges complete 8680i unit with extended or slim battery installed. Region-specific cord, US line cord is (Part# 19-19726) must be ordered separately.
12 Bay 8680i Battery Charger. Charges battery only when removed from 8680i. Compatible with Extended or Slim batteries. Region-specific cord must be ordered separately.
What are the key features of the Honeywell 8680i wearable mobile computer?
The Honeywell 8680i is a compact, high-performance wearable mini mobile computer that combines scanner and mobile computing functionality into a single ergonomic device. It features an omni-directional area imager for 1D/2D barcode scanning, customizable user-facing display for workflow instructions, hands-free operation, and WiFi connectivity with SDK support for network applications. The device is built for rugged environments and can withstand 30 drops from 1.5 meters to concrete, making it ideal for warehouse, manufacturing, and logistics operations.
What connectivity options does the 8680i mobile computer offer?
The 8680i connects to network applications through WiFi and supports SDK-based integration for seamless workflow deployment. The device also features Bluetooth connectivity for pairing with other devices, and enables offline functionality through TotalFreedom plugin development. This multi-connectivity approach allows you to integrate the 8680i into your existing enterprise systems whether you're operating in connected or disconnected environments.
What are the battery specifications and operating time for the 8680i?
The 8680i is available with two battery options: a slim battery version (81 x 56 x 31.3 mm) and an extended battery version (81 x 56 x 35 mm). Both configurations feature a 3.6V, 3400 mAh battery with a minimum of 6 hours of operation on a single charge. Battery charging takes approximately 3 hours with a battery charger or 3.5 hours with a device charger, and the battery includes a one-year warranty.
What environmental conditions can the Honeywell 8680i withstand?
The 8680i is engineered for demanding environments with an operating temperature range of -20°C to 50°C (-4°F to 122°F) and storage temperature range of -20°C to 60°C (-4°F to 140°F). It operates reliably in humidity levels from 0% to 95% relative humidity (non-condensing) and can survive 30 drops from 1.5 meters to concrete and 2,000 tumble cycles. These rugged specifications make it suitable for warehouse, manufacturing, retail, hospitality, and transportation logistics applications.
What barcode symbologies can the 8680i scan and what is its scanning range?
The 8680i features an omni-directional area imager that supports multiple 1D and 2D barcode symbologies including Code 39, DataMatrix, PDF417, and UPC. Typical scanning ranges vary by barcode type: 10 mil Code 39 scans from 65-544 mm, 20 mil Code 39 from 49-812 mm, 10 mil DataMatrix from 113-275 mm, and 100% UPC from 44-552 mm. The device maintains excellent scan performance with motion tolerance up to 584 cm per second and can read barcodes at pitch angles of ±45° and skew angles of ±60°.
Does the Honeywell 8680i come with accessories and what charger options are available?
The 8680i includes an extended battery, triggered ring, and hook-and-loop strap attachments to support hands-free wearable operation. However, a charger is sold separately and is required for use—you can choose between a battery charger (3-hour charge time) or device charger (3.5-hour charge time) depending on your operational needs. Contact us today to explore available charger options and complete accessory packages that best fit your workflow requirements.
The Honeywell 8680IB201-2-N Mobile Computer is also known as
HSM-8680IB2012N
or 8680IB2012N.
