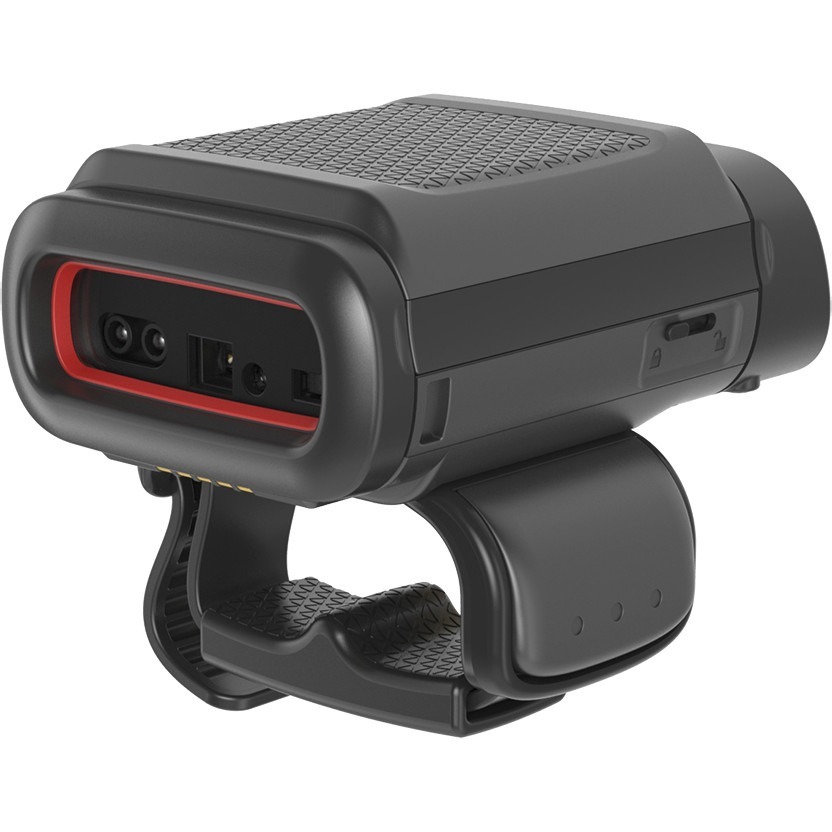

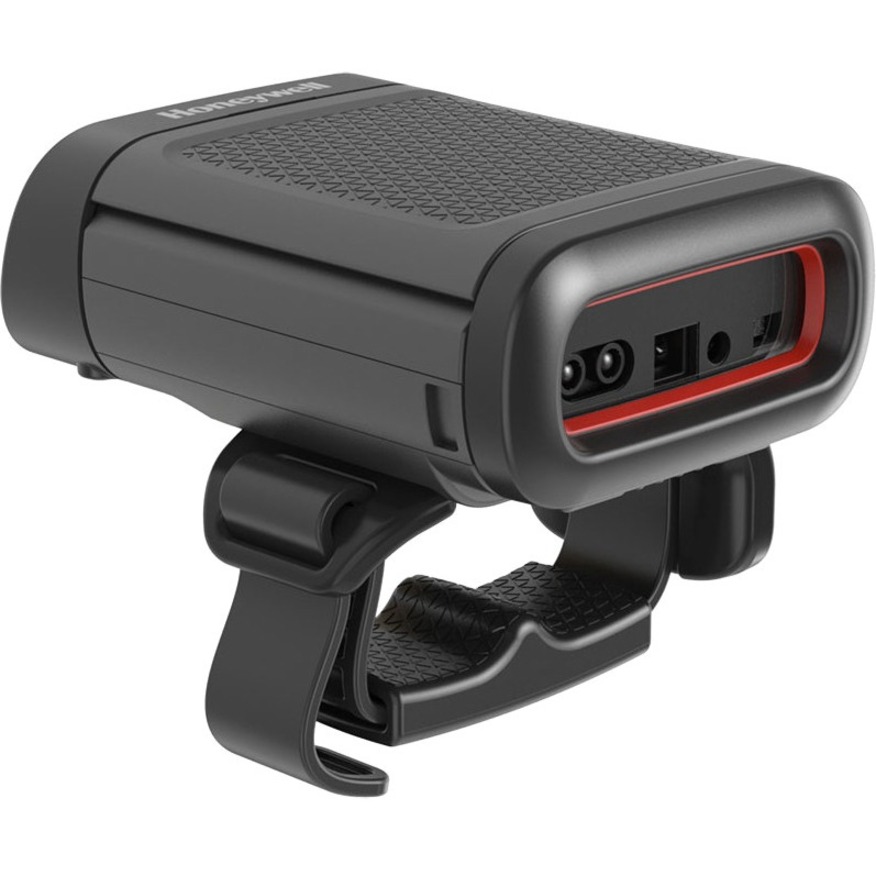

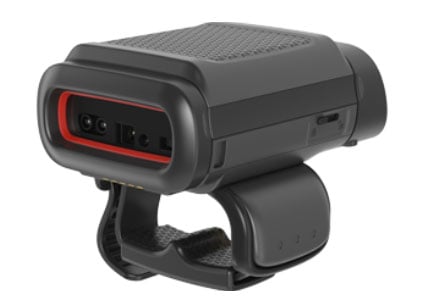

Honeywell 8680i Wearable Mini Mobile Computer – Mobile Computer
Honeywell 8680i Mobile Computer Model Overview
The Honeywell 8680i Wearable Mini Mobile Computer is a compact, high-performance device that revolutionizes workflow efficiency in demanding environments. By combining the functionality of a scanner and mobile computer into a single ergonomic device, the 8680i enhances productivity through hands-free operation. Its customizable user interface and advanced connectivity options allow for streamlined workflows tailored to various applications, from picking to packing. Built to withstand rugged conditions, the 8680i ensures reliability and performance, making it an ideal solution for businesses seeking to elevate their operational effectiveness.
Key Features
- Ergonomic Wearable Design: Enhances efficiency in frequent scanning tasks.
- Cost-Effective Solution: Combines scanner and mobile computing functionalities, reducing acquisition costs.
- Customizable Accessories: Options for ring or glove form factors and various battery sizes.
- Rugged Durability: Designed to endure tough operating environments with specifications for drops and tumbles.
- Honeywell Connected Workflow: Offers analytics for battery lifecycle management and simple deployment for updates.
Specifications
- Mechanical:
- Dimensions: Slim Battery - 81 mm x 56 mm x 31.3 mm; Extended Battery - 81 mm x 56 mm x 35 mm
- Weight: Triggered Ring with Slim Battery - 151 g; Triggered Ring with Extended Battery - 168 g
- Scan Performance:
- Scan Pattern: Omni-directional area imager
- Motion Tolerance: Up to 584 cm/second
- Typical Range: Varies by symbology from 44 mm to 812 mm
- Environmental:
- Operating Temperature: -20°C to 50°C
- Drop and Tumble Ratings: 30 drops from 1.5 m; 2,000 tumbles from 0.5 m
- Wireless:
- Bluetooth v 4.1 and Wi-Fi 802.11 a/b/g/n/ac
- Battery: Slim (3.6 V, 1200 mAh), Extended (2160 mAh)
- Warranty: Two-year factory warranty (one year for battery)
The Standard version offers lightweight, ergonomic Bluetooth®- wearable scanning with clear communication of wireless connection, battery status, and scan results.

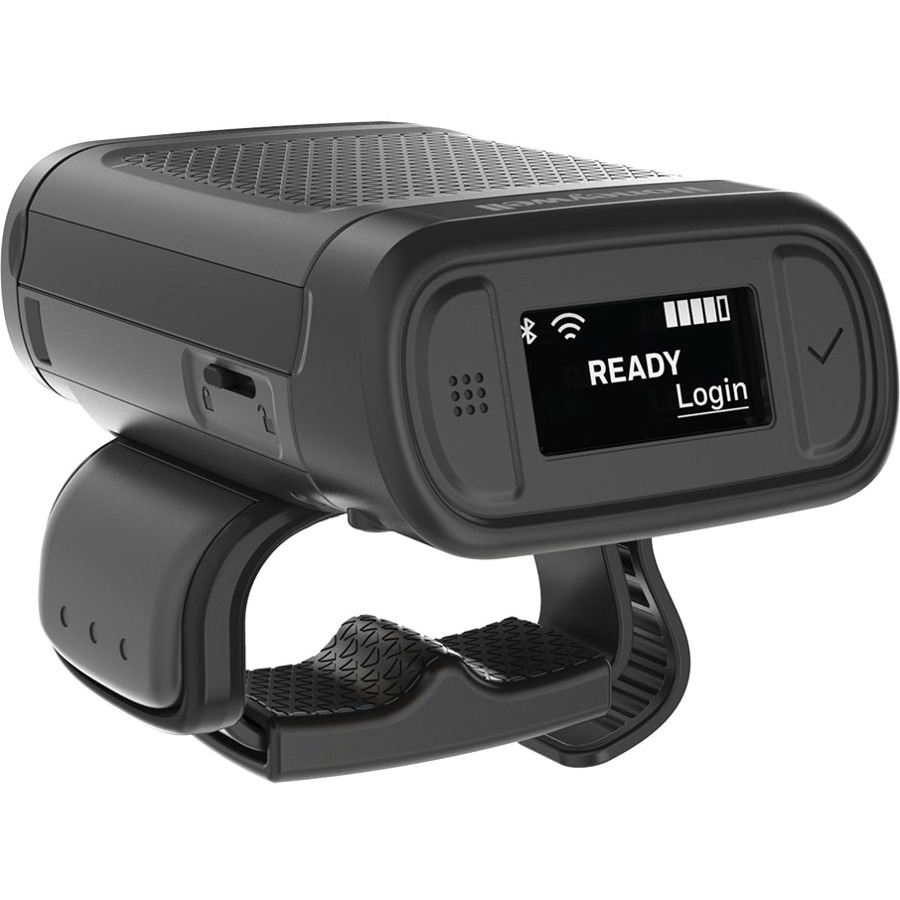

With Wi-Fi and a customizable user-facing display on the Advanced model, the 8680i Smart Wearable enables streamlined workflows with a single device. Key information can be presented to the worker to drive tasks such as picking, packing, or sorting, and the two-button interface enables task-specific responses (for example, confirm action completion or mark an exception).
Configuration options help tailor the 8680i device to the environment. It is available as a two-finger ring or a glove (coming soon), and can use slim or extended batteries to suit the duty cycle, shift length, and size/weight priorities. Available in a Standard version for simple Bluetooth-paired data collection or an Advanced version for standalone operation in directed workflows, the 8680i Smart Wearable can add efficiency and effectiveness to the most common tasks.
The ergonomic 8680i Smart Wearable Standard eliminates wasted motion with always-at-hand scanning to increase high frequency workflow efficiency. The Advanced model further improves effectiveness by delivering essential workflow information directly to the worker's line of sight.
FEATURES & BENEFITS
Ergonomic Wearable for Workflow Efficiency
The 8680i Smart Wearable is designed to speed frequent scanning tasks, leaving hands free to do the job needed.
Reduced Acquisition and Operations Costs
Advanced version offers customizable line-of-sight screen, Wi-Fi, and SDK for application development, enabling the 8680i device to support streamlined workflows as a standalone device vs. scanner + mobile computer alternatives.
Customizable to Fit Application
Accessories to the scanner module enable ring or glove form factor; extended or slim batteries tailor size/weight to duty cycle needs; Standard or Advanced
versions to fit workflow needs.
Built Rugged for the Real World
Engineered for 2,000 0.5 meter (1.6 feet) tumbles, the 8680i Smart Wearable is built to endure rugged work environments.
Honeywell Connected
Workflow analytics to manage battery population lifecycle, ensuring uninterrupted full-shift operation; simple deployment of setting and firmware updates.
Recommended Accessories
Category
- Batteries (3)
- Cables, Connectors, and Adapters (1)
- Carrying and Protective Accessories (5)
- Docks and Cradles (4)
- General Software (1)
- Mobile Computer Accessories (2)
- Mounting Hardware and Stands (2)
- Scanner Accessories (10)
- Spare Parts (4)
Recommended Accessories for Model: Honeywell 8680I100-2 Mobile Computer
Top Batteries Purchased With Honeywell 8680I100-2
-
Honeywell BAT-SCN03 BatterySlim Battery. Provides 3,000 scans in 8 hours under normal conditionsIn Stock$130.46
-
Honeywell BAT-SCN02 BatteryExtended Battery. Provides 8,000 scans in 10 hours under normal conditions$145.03
-
Honeywell BAT-SCN02A BatteryBattery, Wearable Mini Mobile Extended Battery, Compatible with 8680iIn Stock$158.80
Top Cables, Connectors, and Adapters Purchased With Honeywell 8680I100-2
-
Honeywell 19-19726 AccessoryPower cable û U.S.$22.43
Top Carrying and Protective Accessories Purchased With Honeywell 8680I100-2
-
Honeywell 8680i505FNGRSTRAP Carrying and Protective AccessoriesTwo-finger ring strap for triggered configuration (package of 10). Triggered ring strap mount (Part# 8680i505RINGMT) required to attach to 8680i device must be ordered separately.In Stock$130.18
-
Honeywell 8680i505RINGMT Carrying and Protective AccessoriesTriggered ring-strap mount (package of 10, includes trigger component). Two-finger ring strap for triggered configuration (Part# 8680i505FNGRSTRAP ) must be ordered separately.In Stock$1,441.46
-
Honeywell 8680i505RHSGH Carrying and Protective Accessories8680i Right hand strap glove with device harness, one size, package of 10, trigger on index finger. Glove mount (8680i505GMT) required to attach to 8680i device must be ordered separately.In Stock$1,193.12
Top Docks and Cradles Purchased With Honeywell 8680I100-2
-
Honeywell MB4-BAT-SCN02 Accessory4 Bay 8680i Battery Charger. Charges battery only when removed from 8680i. Compatible with Extended or Slim batteries. Region-specific cord, US line cord is(Part# 19-19726) must be ordered separately.In Stock$604.58
-
Honeywell MB4-SCN02 Accessory4 Bay 8680i Device Charger. Charges complete 8680i unit with extended or slim battery installed. Region-specific cord, US line cord is (Part# 19-19726) must be ordered separately.$587.46
-
Honeywell MB12-BAT-SCN02 Accessory12 Bay 8680i Battery Charger. Charges battery only when removed from 8680i. Compatible with Extended or Slim batteries. Region-specific cord must be ordered separately.$1,511.54
Top General Software Purchased With Honeywell 8680I100-2
-
Honeywell SW-ADV-8680i SoftwareStandard-to-advanced software upgrade (US)$260.43
Top Mobile Computer Accessories Purchased With Honeywell 8680I100-2
-
Honeywell 8690ITRGRNSTRP10 Spare Parts8680i/8690i Reversible trigger, pivot, and hook and loop strap assembly for triggered ring configurations (package of 10)$792.78
-
Honeywell 8690ITRGR10 Spare Parts8680i/8690i Reversible trigger and pivot assembly for triggered ring configurations (package of 10)$574.25
Top Mounting Hardware and Stands Purchased With Honeywell 8680I100-2
-
Honeywell 8680i505GMT Accessory8680i Glove mount (package of 10). 8680i, gloves purchased separatelyIn Stock$1,005.92
-
KENWOOD J19-5577-03 AccessoryAccessory Locking Bracket for TK-240x, TK-340x, IS, NX-240x, NX-340x radio$11.50
Top Scanner Accessories Purchased With Honeywell 8680I100-2
-
Honeywell AP-010BT-07N AccessoryXenon Access Point (Class 1, Bluetooth, RS232/USB/KBW/IBM)$405.12
-
Honeywell AP-100BT-07N AccessoryACCESS POINT CLASS 1 BLTH 100M (300FT) UP TO 7 SCANNERS RS232/USB/KBW (REQ CBL). Non-Cancelable/Non-Returnable.In Stock$416.92
-
Honeywell AP05-100BT-07N AccessoryACCESS POINT FOR GRANIT 1981I, CLASS 1 BLUETOOTH, 100M (300FT), UP TO 7 SCANNERS CAN BE CONNECTED, RS232/USB/KBW$454.25
Top Spare Parts Purchased With Honeywell 8680I100-2
-
Honeywell 8690ITRGRNSTRP10 Spare Parts8680i/8690i Reversible trigger, pivot, and hook and loop strap assembly for triggered ring configurations (package of 10)$792.78
-
Honeywell 8690ITRGR10 Spare Parts8680i/8690i Reversible trigger and pivot assembly for triggered ring configurations (package of 10)$574.25
-
Honeywell 8690I505CPAD10 Spare PartsSpare Part, Honeywell, 8690I/8680I Triggered Ring Comfort Pad, Pack Of 10$64.94
