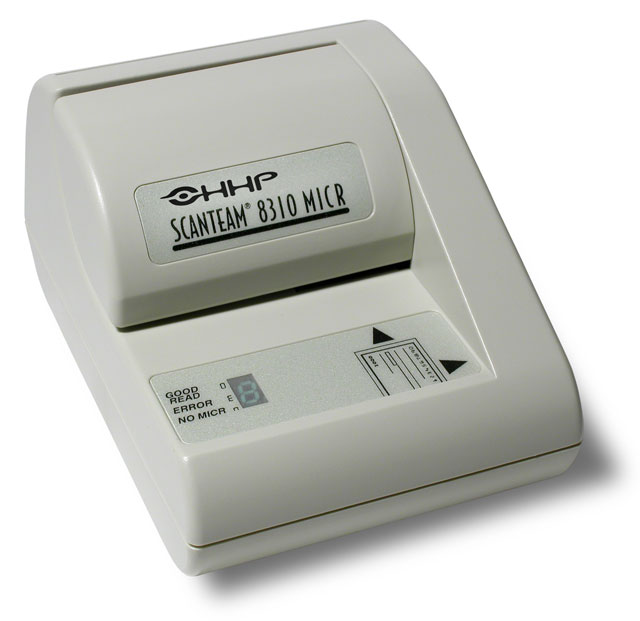

Honeywell 8310-23 MICR Check Reader


0.0

(No reviews)

Be the first to

Write a Review
Honeywell ScanTeam ST 8310 - RS-232 & Keyboard wedge interfaces. Includes tracks 1, 2 & 3 magnetic stripe reader. Order cables, programming checks & power supply separately. See accessories.
The ScanTeam ST 8310 can bring this functionality to virtually any terminal as it connects to hundreds of POS and teller systems through a single host interface port.

The ScanTeam ST 8310 is the reduced feature set member of the ScanTeam 8300 family of check reader products. All ST8300 products contain FLASH memory which allows for easy firmware upgrades in the field without the need to disassemble the product, and a magnetic read head for MICR data capture. The ScanTeam ST 8310 contains communications support for traditional PC COM ports for PC-POS applications, many PC and video terminal keyboards in a Keyboard wedge mode as well as support for communications with many Credit Authorization Terminals, including Hypercom TM, Data CardTM, Verifone TranzTM, and ZONTM series products.

Technical Information

  • Magnetic Stripe Configuration: Triple Track 1, 2 & 3
  • Interfaces/Ports:
    • Keyboard Wedge
    • RS-232
  • Input Voltage:
    • 5 V DC
    • 5 V DC - Regulated
  • MICR Fonts Supported:
    • CMC-7
    • E13-B
  • Input Voltage Range: 7 to 13.5 V DC
  • Interface Options:
    • Keyboard Wedge
    • RS-232

General Information

Physical Characteristics

  • Dimensions:
    • 4.3" (109.22mm) x 4.08" (103.63mm) x 5.75" (146.05mm)
    • 3.43" (87mm) x 4.71" (120mm) x 5.75" (146mm)
    • 3.43" (87mm) x 4.71" (120mm) x x 5.75" (146mm)
  • Weight: 1.25 lb (0.57 kg)
  • Color: White

Agency Approvals

  • Agency Approvals:
    • FCC Class A
    • EMC 89/336/EEC and LVD 73/23/EEC
    • FCC Class A EMC 89/336/EEC LVD 73/23/EEC
    • FCC Class AEMC 89/336/EECLVD 73/23/EEC

Environmental Conditions

  • Temperature:
    • 0°C (32°F) to 50°C (122°F) Operating
    • -18°C (0°F) to 60°C (140°F) Storage
  • Humidity: 95% Non-condensing

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited

Full specifications (PDF)
