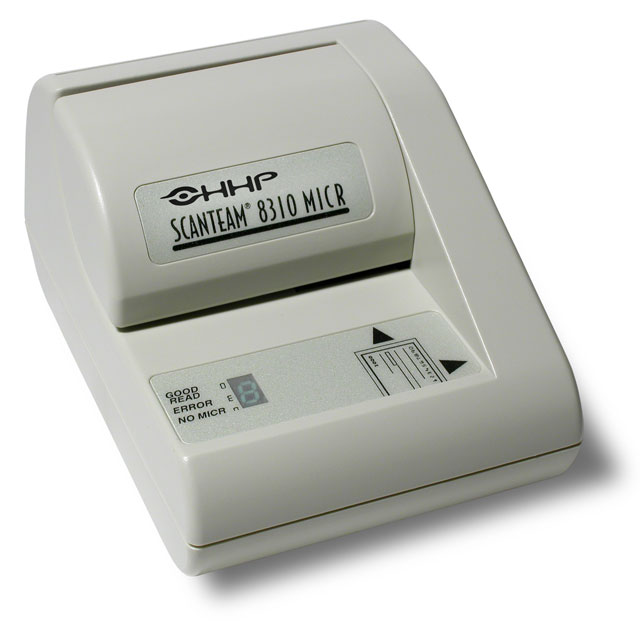

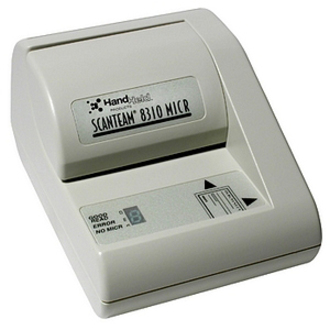

Honeywell 8310-22 MICR Check Scanner

Honeywell ScanTeam ST 8310 - Keyboard wedge/RS-232, Tracks 1 and 2 MSR, Requires cable and program checks
The ScanTeam ST 8310 can bring this functionality to virtually any terminal as it connects to hundreds of POS and teller systems through a single host interface port.

The ScanTeam ST 8310 is the reduced feature set member of the ScanTeam 8300 family of check reader products. All ST8300 products contain FLASH memory which allows for easy firmware upgrades in the field without the need to disassemble the product, and a magnetic read head for MICR data capture. The ScanTeam ST 8310 contains communications support for traditional PC COM ports for PC-POS applications, many PC and video terminal keyboards in a Keyboard wedge mode as well as support for communications with many Credit Authorization Terminals, including Hypercom TM, Data CardTM, Verifone TranzTM, and ZONTM series products.

Technical Information

  • MICR Font Supported:
    • CMC-7
    • E13-B
  • Magnetic Stripe Track Configuration: Dual Track
  • Magnetic Stripe Track Number:
    • Track 1
    • Track 2

General Information

  • Product Type: Check Reader
  • Brand Name: Honeywell
  • Manufacturer: Honeywell International, Inc
  • Product Model: ST8310
  • Product Name: ST8310 MICR Check Reader
  • Product Line: SCANTEAM

Physical Characteristics

  • Height: 3.4"
  • Width: 4.7"
  • Depth: 5.8"
  • Color: White
  • Weight (Approximate): 1.25 lb


  • Interfaces/Ports:
    • Keyboard Wedge
    • RS-232 Serial


  • Certifications & Standards:
    • FCC Class A
    • EMC 89/336/EEC
    • LVD 73/23/EEC

Environmental Conditions

  • Humidity: 95% Non-condensing
  • Temperature:
    • 32°F (0°C) to 122°F (50°C) Operating
    • -0.4°F (-18°C) to 140°F (60°C) Storage

Power Description

  • Input Voltage Range: 7 V DC to 13.5 V DC
  • Input Voltage: 5 V DC


  • Limited Warranty: 1 Year

Full specifications (PDF)
