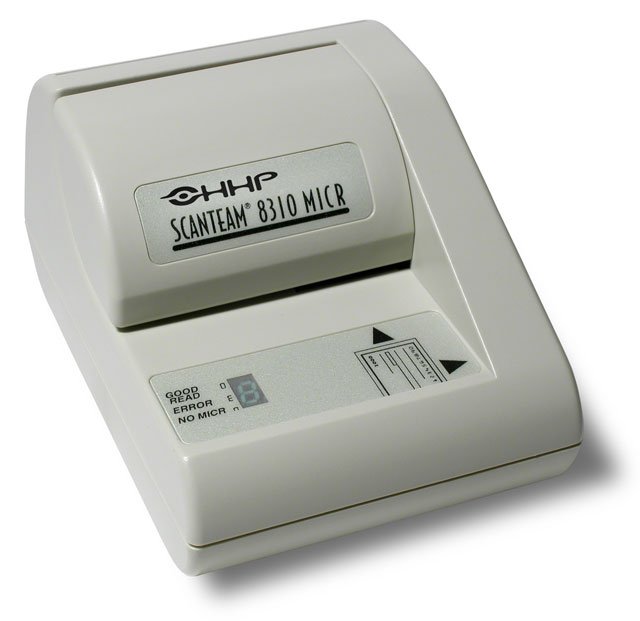

Honeywell 8310-20 MICR Check Scanner
Honeywell 8310-20 MICR Check Scanner
Honeywell ScanTeam ST 8310 -
RS-232 & Keyboard wedge interfaces. Order cables, programming checks & power supply separately. See accessories.
Full specifications (PDF)The ScanTeam ST 8310 can bring this functionality to virtually any terminal as it connects to hundreds of POS and teller systems through a single host interface port.
The ScanTeam ST 8310 is the reduced feature set member of the ScanTeam 8300 family of check reader products. All ST8300 products contain FLASH memory which allows for easy firmware upgrades in the field without the need to disassemble the product, and a magnetic read head for MICR data capture. The ScanTeam ST 8310 contains communications support for traditional PC COM ports for PC-POS applications, many PC and video terminal keyboards in a Keyboard wedge mode as well as support for communications with many Credit Authorization Terminals, including Hypercom TM, Data CardTM, Verifone TranzTM, and ZONTM series products.
Honeywell 8310-20 Overview
The ScanTeam 8310 is a reduced feature set member of the ST8300 family of check reader products. It contain Flash memory which allows for easy firmware upgrades in the field without the need to disassemble the product and a magnetic read head for MICR data capture.
Technical Information
MICR Font Supported:
- E13-B
- CMC-7
Interfaces/Ports
Serial:
Yes
Keyboard Wedge:
Yes
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Height:
4.3"
Width:
4.1"
Depth:
5.8"
Weight (Approximate):
1.25 lb
Miscellaneous
Additional Information:
- Fonts Supported: Auto Discrimination
Operating Current:
- With Motor On: 385mA (typical average)
- With Motor Off: 125mA (typical)
Accessories:
- Wall mount power packs
- Host Interface cables
- ST8310 wall mount kit
- MICR head cleaning checks
- MICR programming checks
- PC Windows based programming utility, Quick Load
Data Format:
- Output Formats: Every ST8310 contains a user selectable table of common MICR data output formats
- Data Editor: The output data can be uniquely edited by the ST8310 data editor to add or delete characters, including prefix and suffix characters
Certifications & Standards:
- FCC Class A
- EMC 89/336/EEC
- LVD 73/23/EEC
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN:
0040689003916
UPC:
040689003916
EAN:
0040689003916
UNSPSC:
44101901, 44111600
Loading...
The Honeywell 8310-20 is also known as HHP-8310-20 or 831020 .
